Papi The Harpy 鹰身女妖帕皮
3D PRINT READY!!
Price£0 List:£0.79
Stand by Free Shipping(可下载)
SOLD0 [Comment0Article]
pa.zip Click to download Downloads: 0

- +
Add to Cart
In Stock:99
Seller:Model City 模型城
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

by Animu

IMPORTANT PLEASE READ BEFORE PRINTING
This print is ready to go and does not need any more fixing to be printed!

Support me on Patreon! https://www.patreon.com/AnimuAnimu/posts

Note: I have been having some printer troubles so a lot of the nasty looking parts of the print are result of my printer and not the model.

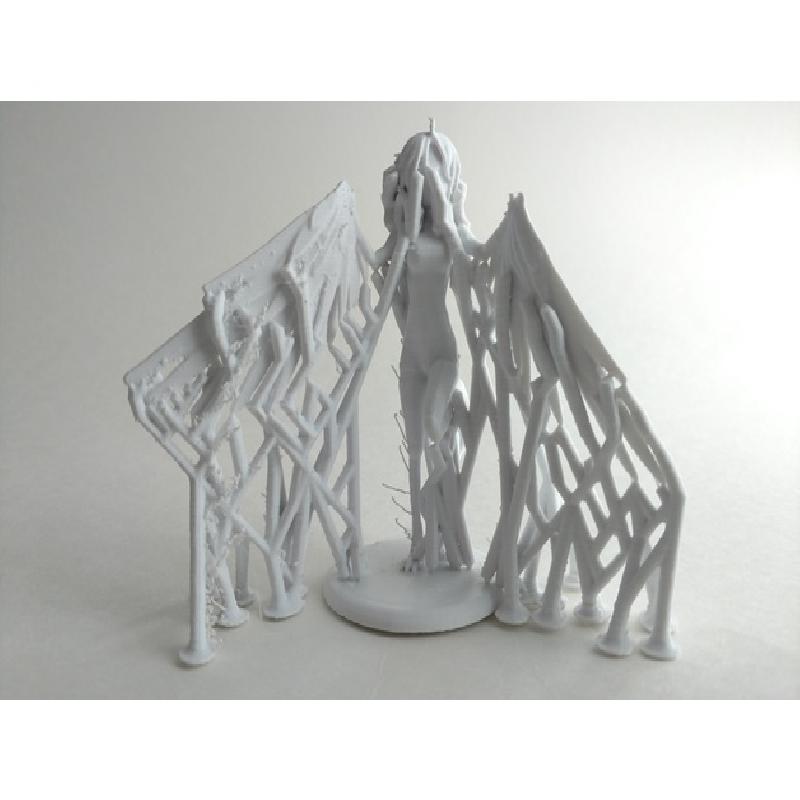

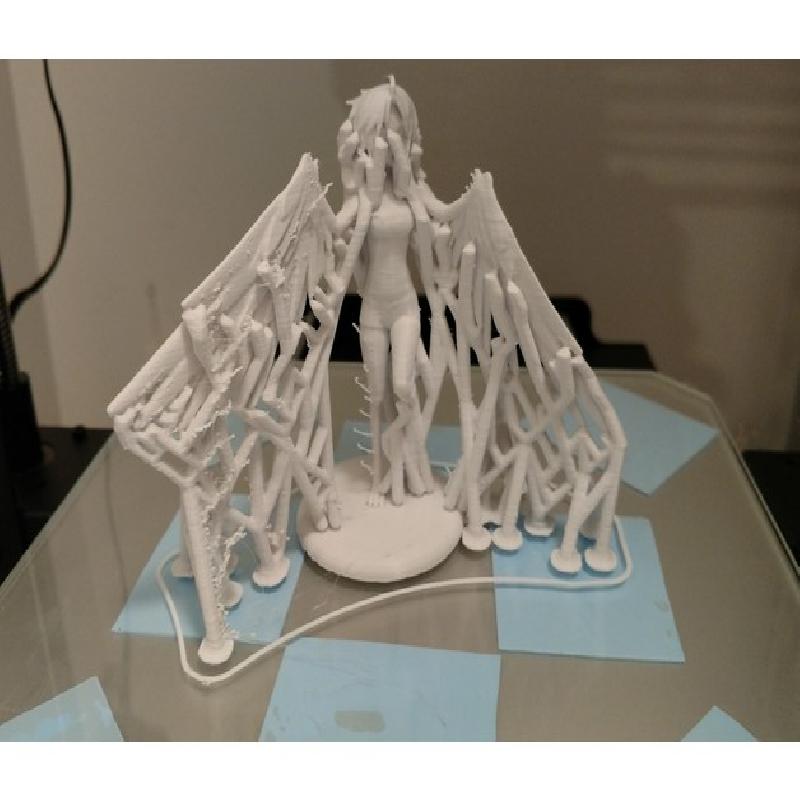

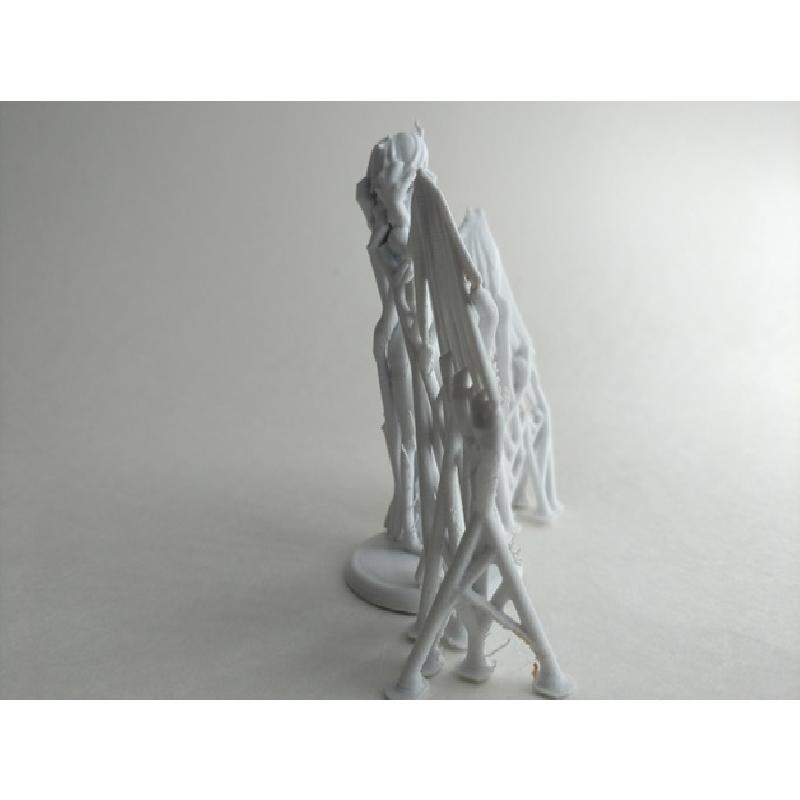

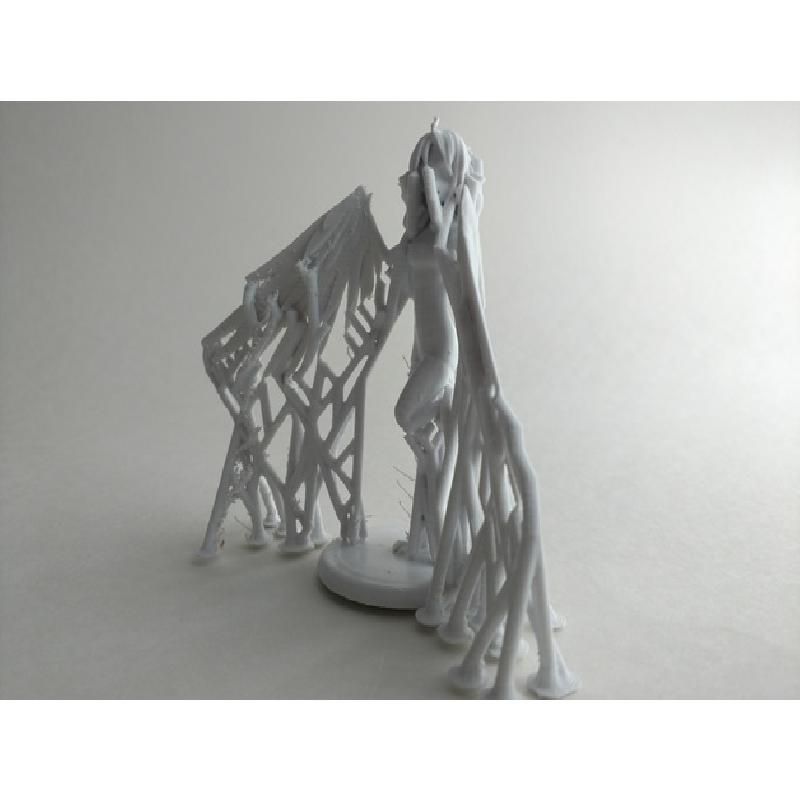

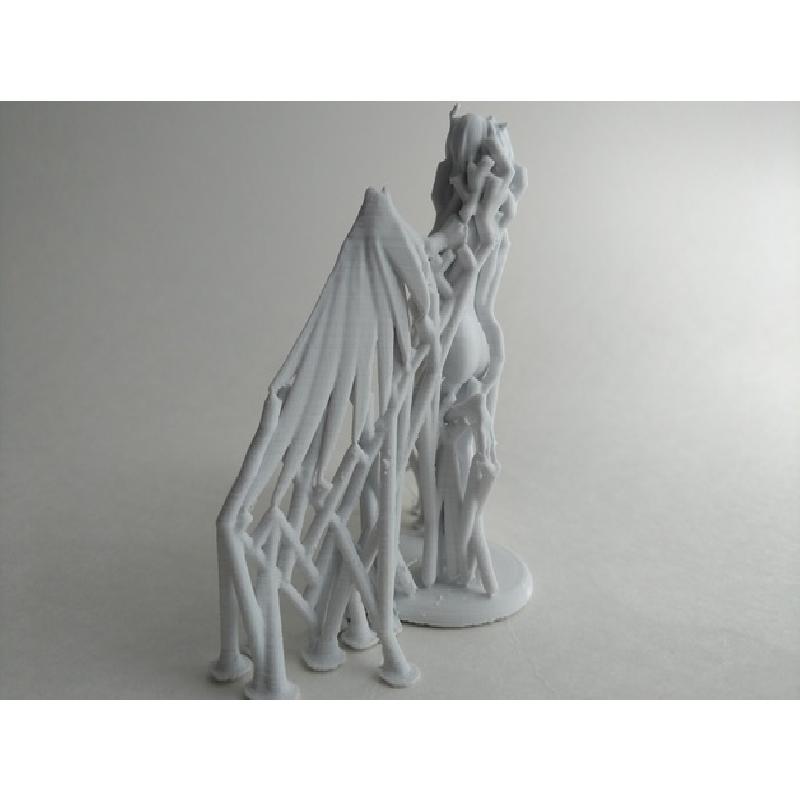

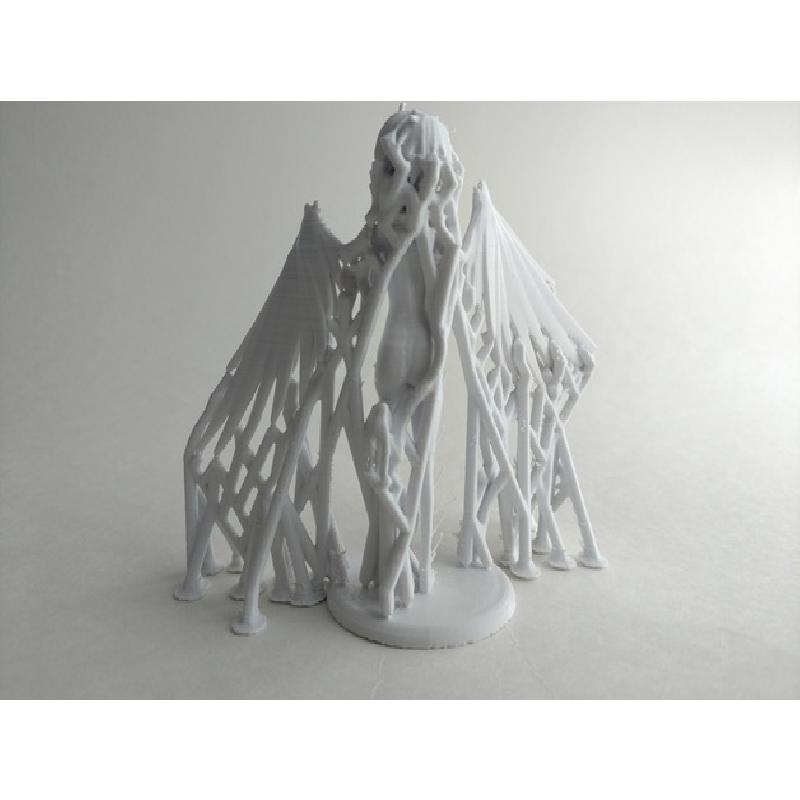

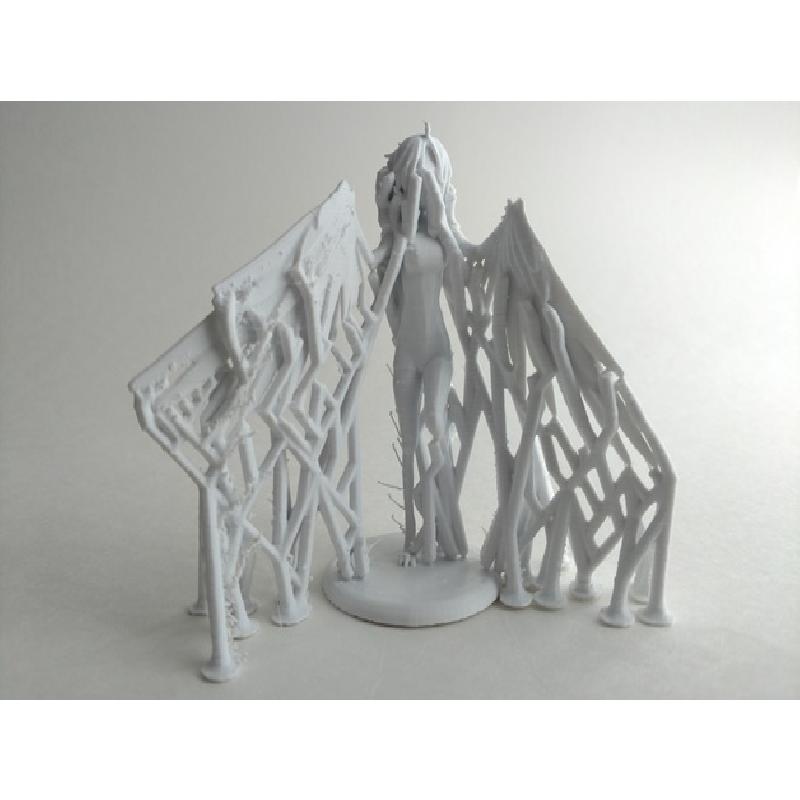

This print already has all the support material ready to go, DO NOT add SUPPORT MATERIAL.
the support material that i already added to the file has tapered ends and easily breaks off, however be very careful removing, especially around the head and hair.
I STRONGLY RECOMMEND USING A CUTTING DEVICE like a dremel, or rotary tool to cut the supports on this model. unlike my other models, this needs beefy supports for the overhangs, but the model itself is very delicate. Do not print this is if you are not willing to take the time to carefully remove the supports, and reprint if necessary.
Print with AT LEAST 30% infill and be careful removing supports, there are many fragile features.
DO NOT PRINT WITH A RAFT OR SUPPORT MATERIAL
Do not freak out of the supports fail mid print, they are mostly redundant and designed to recover.
A brim does help with bed adhesion though

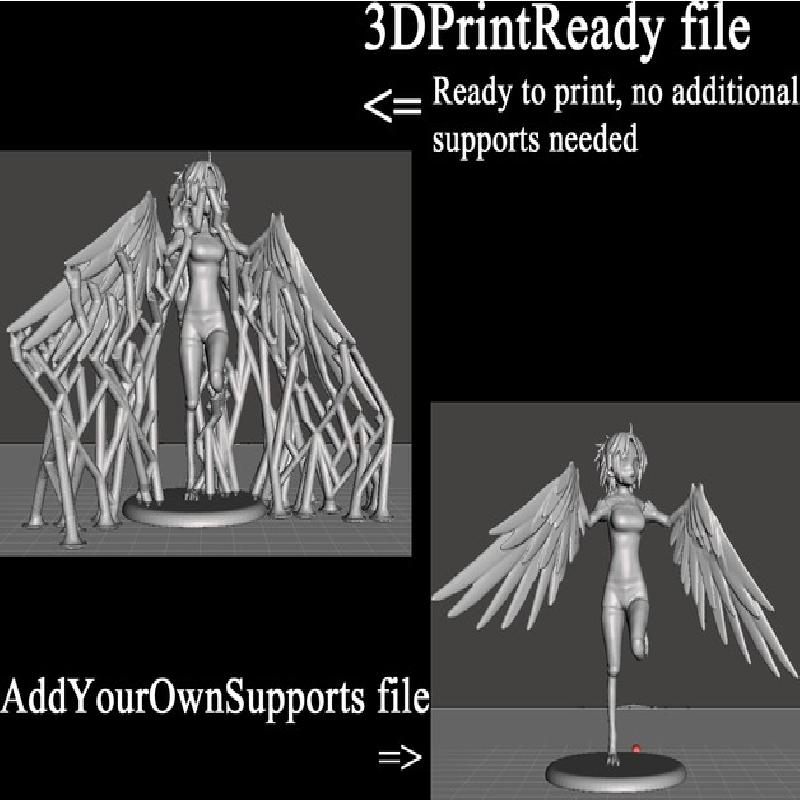

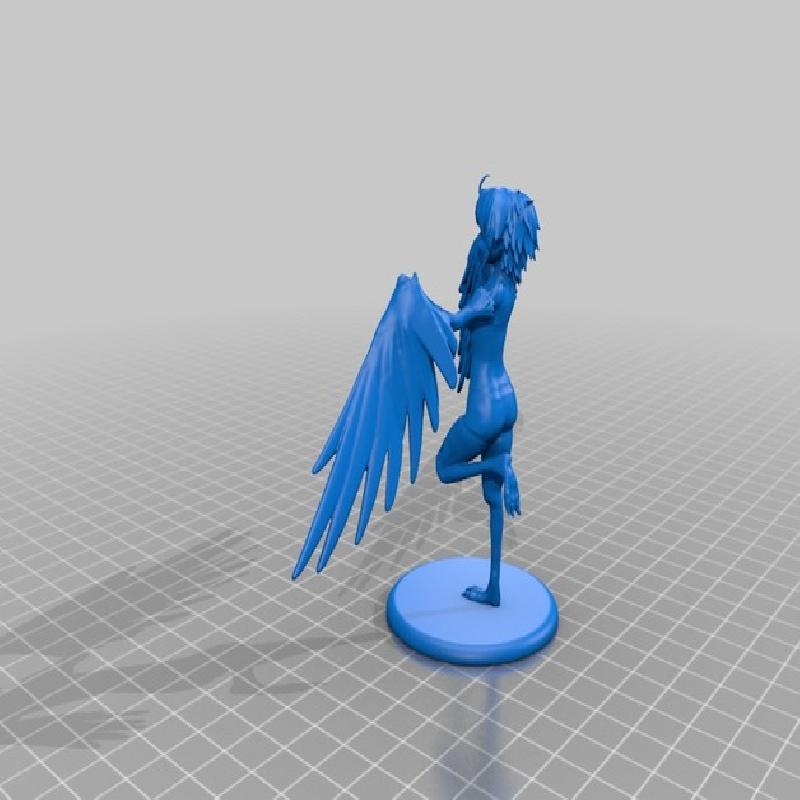

there are TWO stl files included, PRINT THE 3DPrintReady FILE. I included files of the print without supports if you want to add your own supports. note a base is necessary or the model will tip over.

print this at .1mm layer height for optimal results.

i did a bunch of smoothing in Meshmixer, so the stl file is quite big even after being 'reduced' so be patient!

Print Settings

Printer Brand:

Wanhao


Printer:

Wanhao Duplicator i3 Plus


Rafts:

No


Supports:

No


Resolution:

.16 mm layer height


Infill:

30% this is critical that you make it at least 30 percent


Filament:                                            eSun PLA+                                        Cool White

Notes:

I printed this on a monoprice maker select plus (a rebrand of the wanhao, identical printer)
if you want to speed up print time, keep the outer layer slow, so it looks good, but increase the infill print speed.

IMPORTANT: you MUST have AT LEAST a .8mm shell thickness or the supports will fuse with the model! (need the model to be strong enough that when the supports are removed they dont take some of the model with them)
A brim does help with bed adhesion.

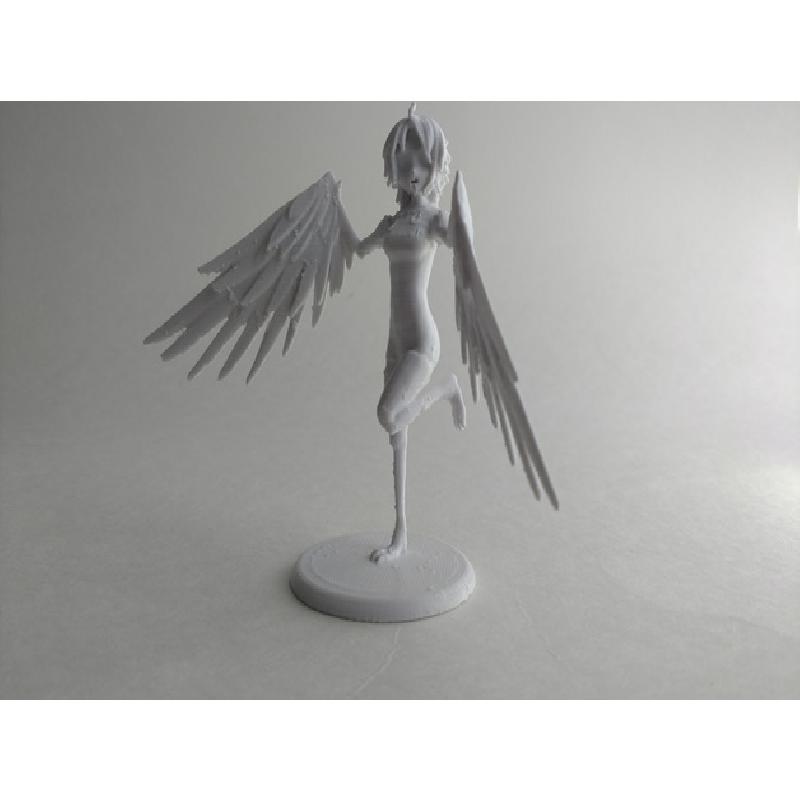

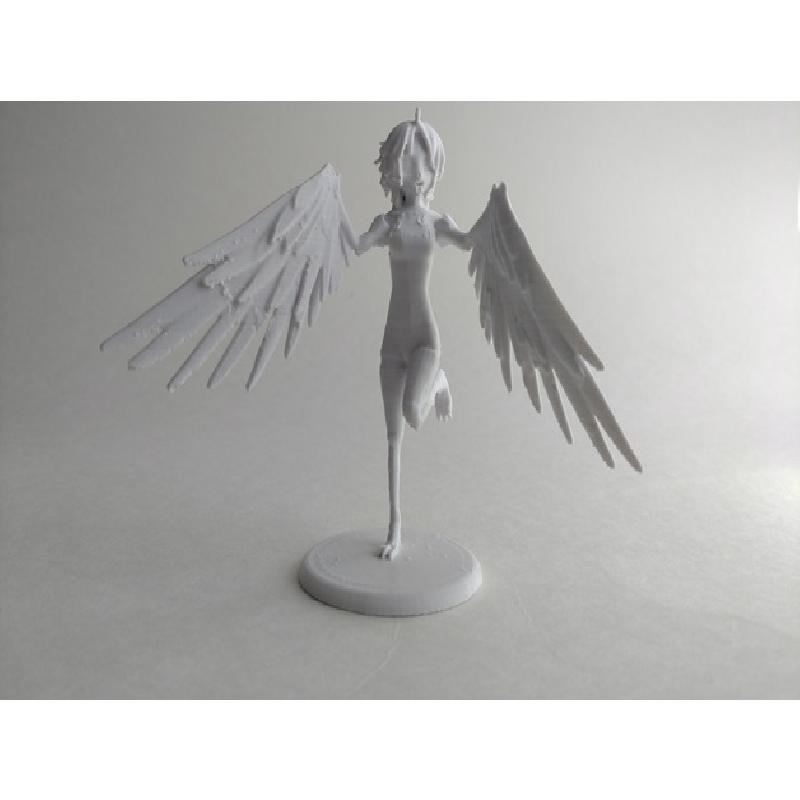

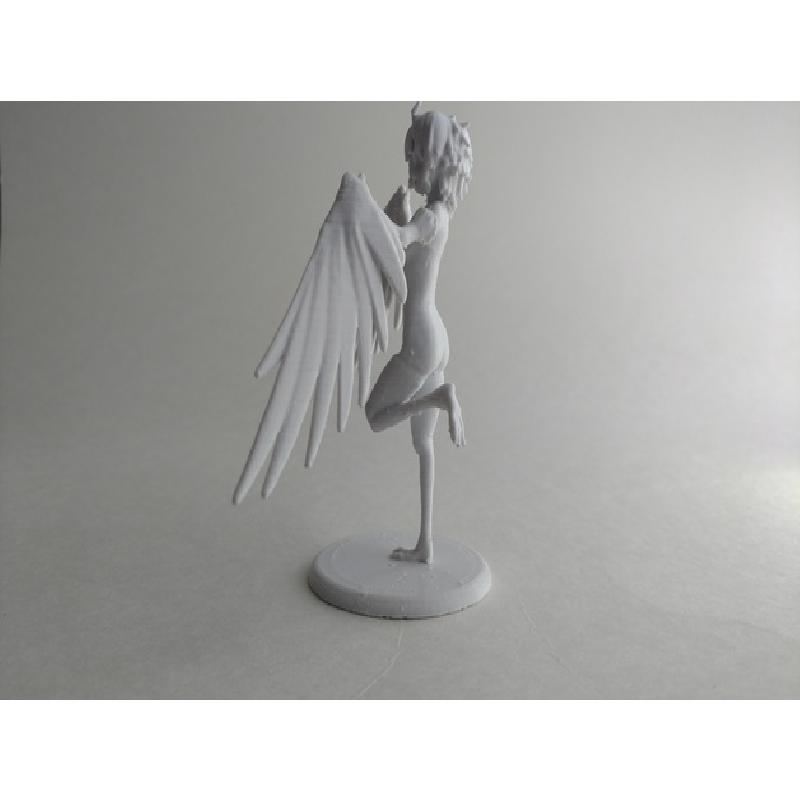

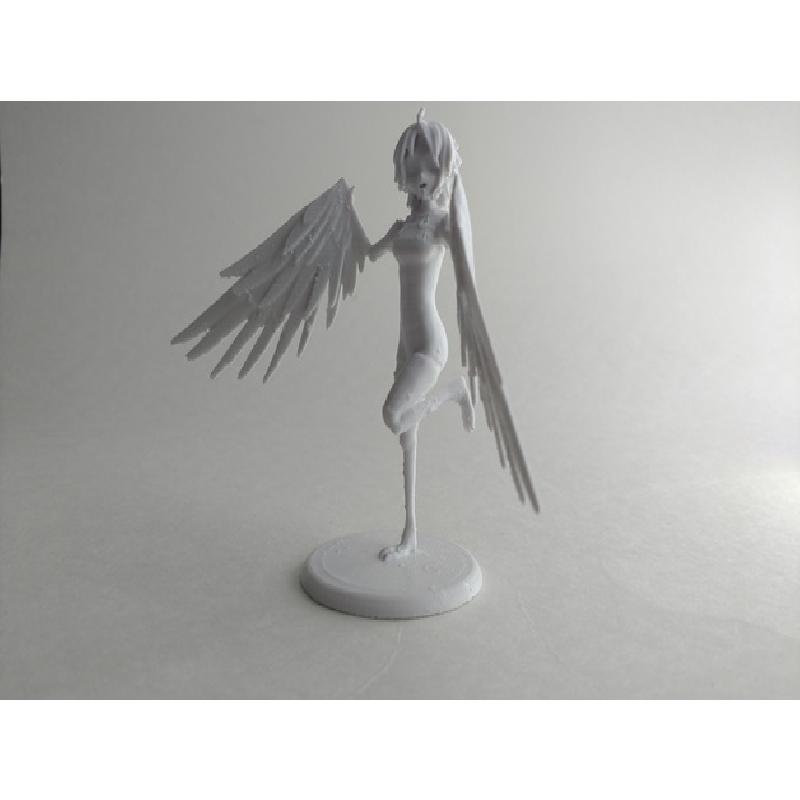

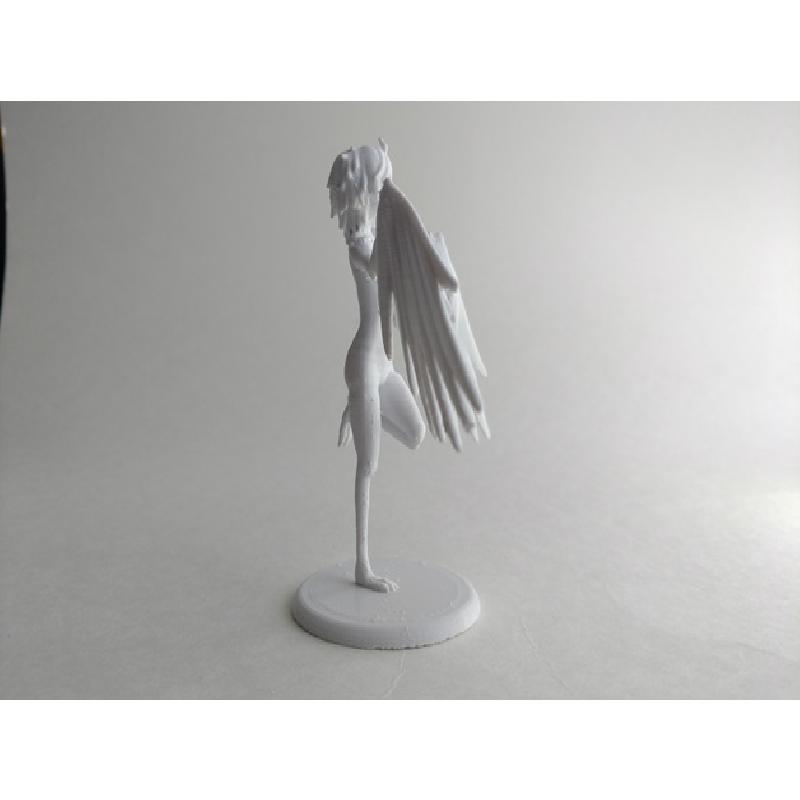

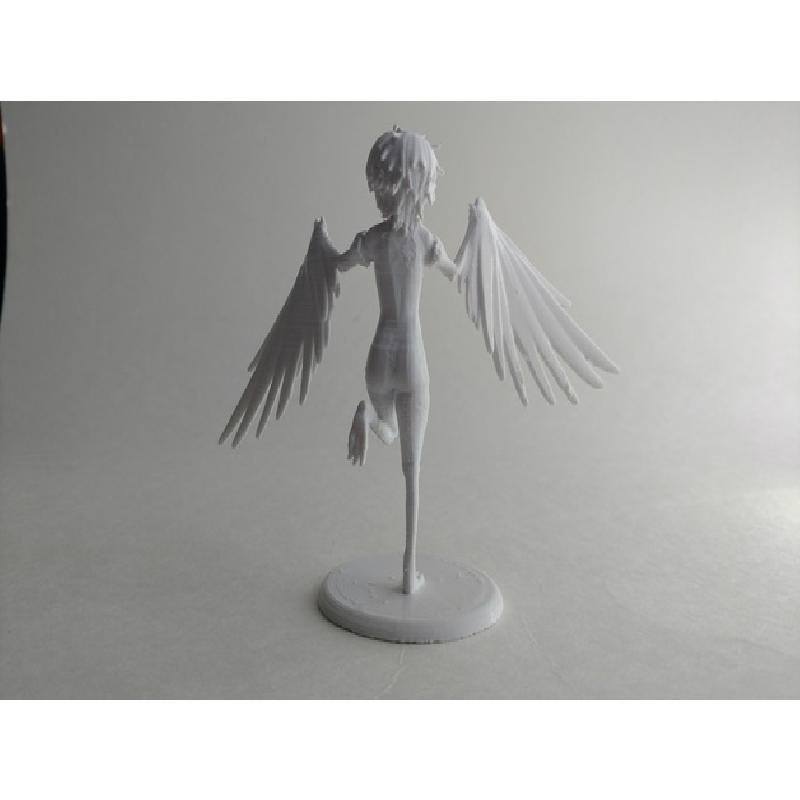

For scale, the model is ~96 mm tall

Post-Printing

a dremel and a pliers and a flush cut to remove any stringing and the break-away supports. be careful removing supports, the model has many detailed and thin features. especially with the hair and umbrella
cut the supports away for much better results.

if you do not have a dremel, when cutting the supports with a flush cutter or similar tool, try to cut vertically. these tools have wedge shaped blades and force layers apart wrecking the model if cutting horizontally. cutting vertically or almost so is the way to go

Consider Donating!

consider donating please, it really helps me stay motivated to keep spending the time to make these amidst my university studies, and the time to take pictures and post these :) thanks
