by T1ckL35

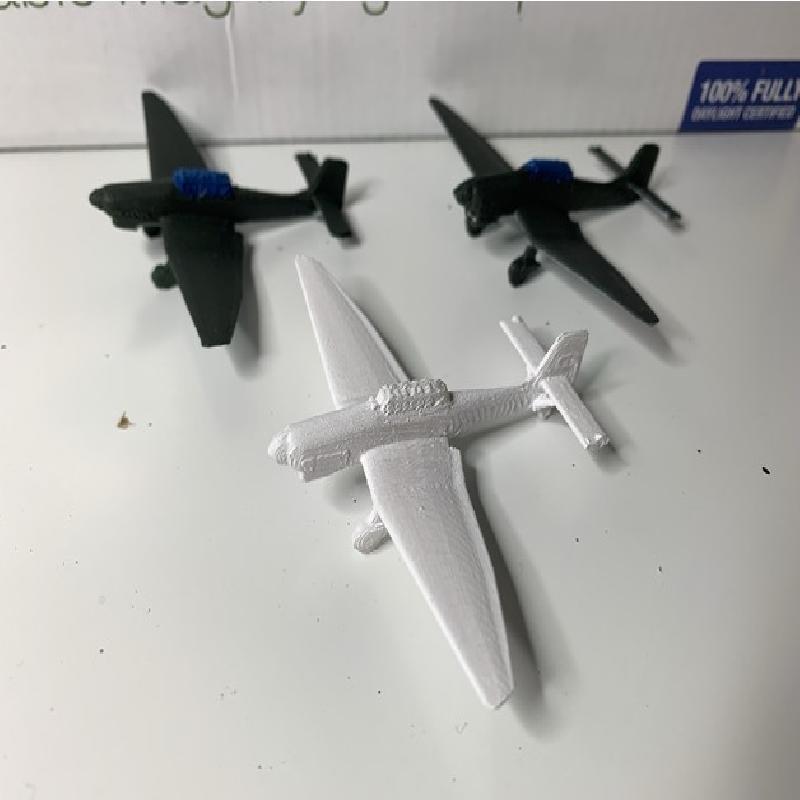

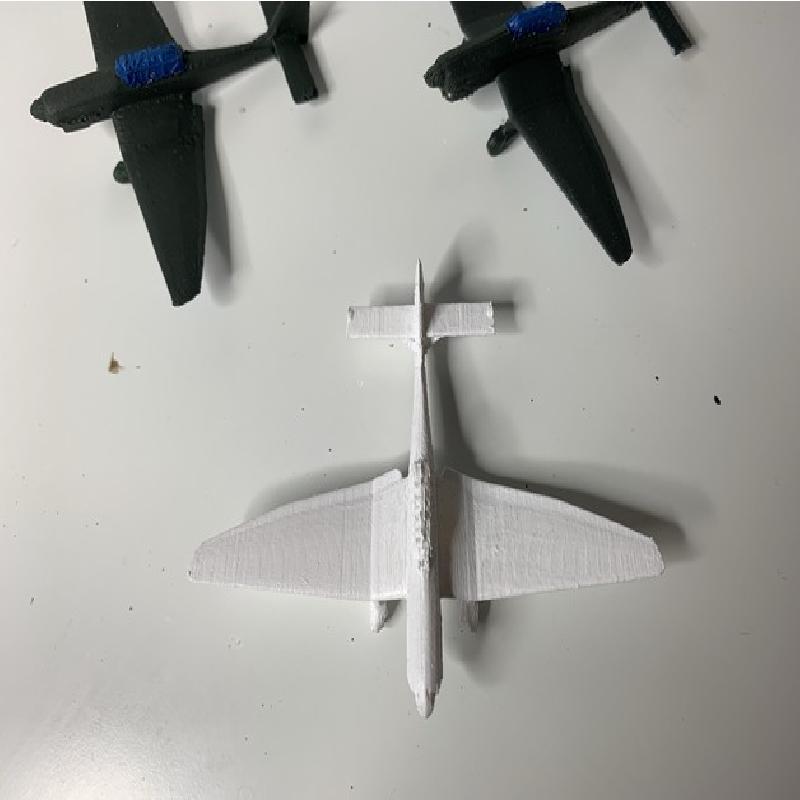

WIP on a Junkers Ju-87 B Stuka. Currently building towards a 1:200 version for Blood Red Skies (BRS) or similar.
Has a compatible triangular insert for BRS stands.

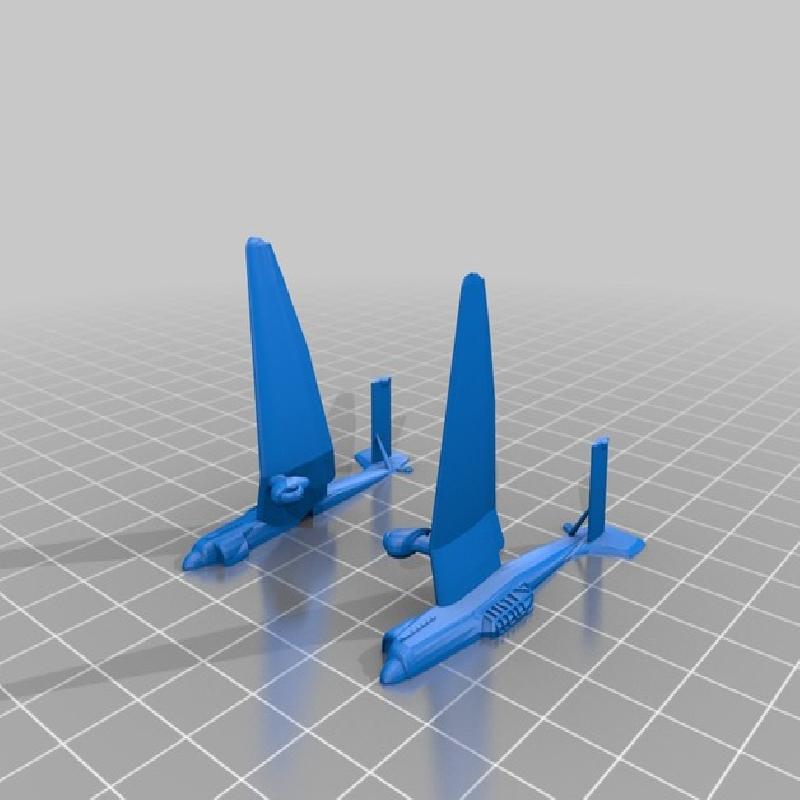

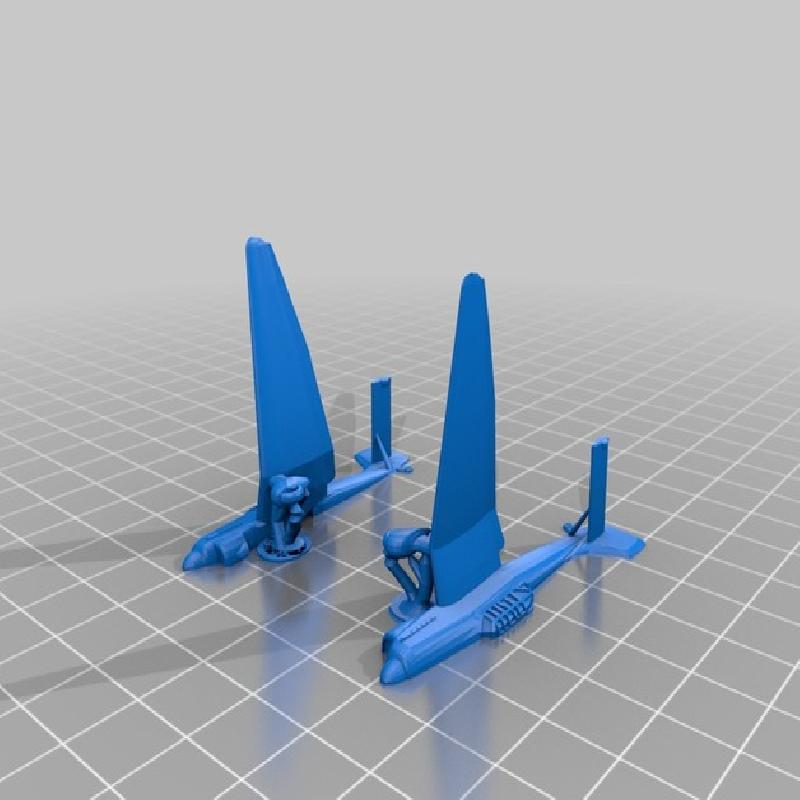

The no supports version will allow you to add your own supports in your preferred way. Alternatively I have uploaded a version with some minimal tree based supports from meshmixer. They are on the wheels under the wings so should come off easily and marks will be minimal.
The wing/tail thickness has been increased (maybe needs more in the tail) and other areas such as the windows have been exaggerated to try and get the cockpit edging visible on really small prints. I've found that printing horizontal gives a better cockpit resolution but at the expense of quite a bit of work removing supports and leaving a rough surface underneath. As such these are the typical split down the middle versions that compromise a little to give a better overall effect.
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.2, 0.12, 0.1
Infill:
10 to 15%
Filament: Generic PLA White
Notes:
Experimenting with ironing in Cura. Seems to work ok on some surfaces but as this is printed so small it also seems to cause some ridging in the extra thin tail parts.
