by delCastillo
A guide with step by step will follow later.

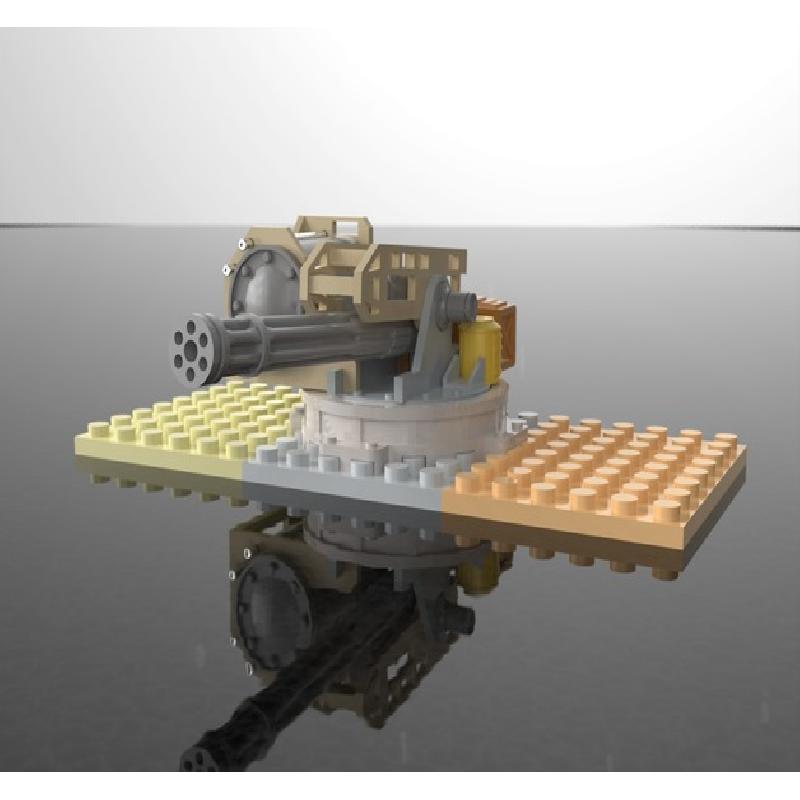

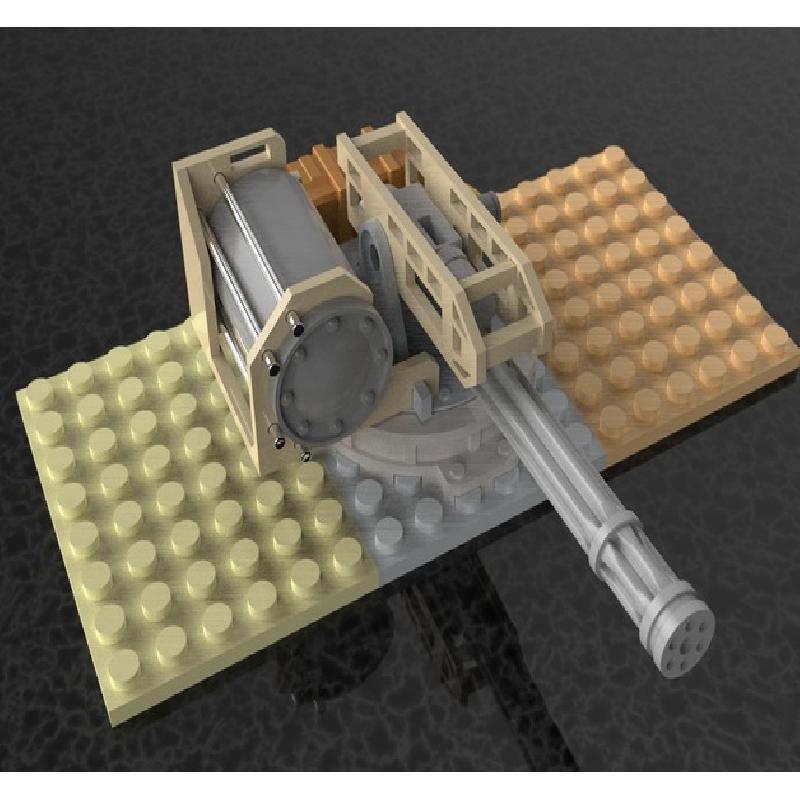

Designed to have a rotating base and pivoting barrel.
Print using brims if you suspect or see slightest warping. Accuracy is key, since the tolerances are so narrow.
Designed to need very little support, but the main base parts will most likely need them. I used very narrow and tightly spread out supports, to ensure a nice underside of the base parts.

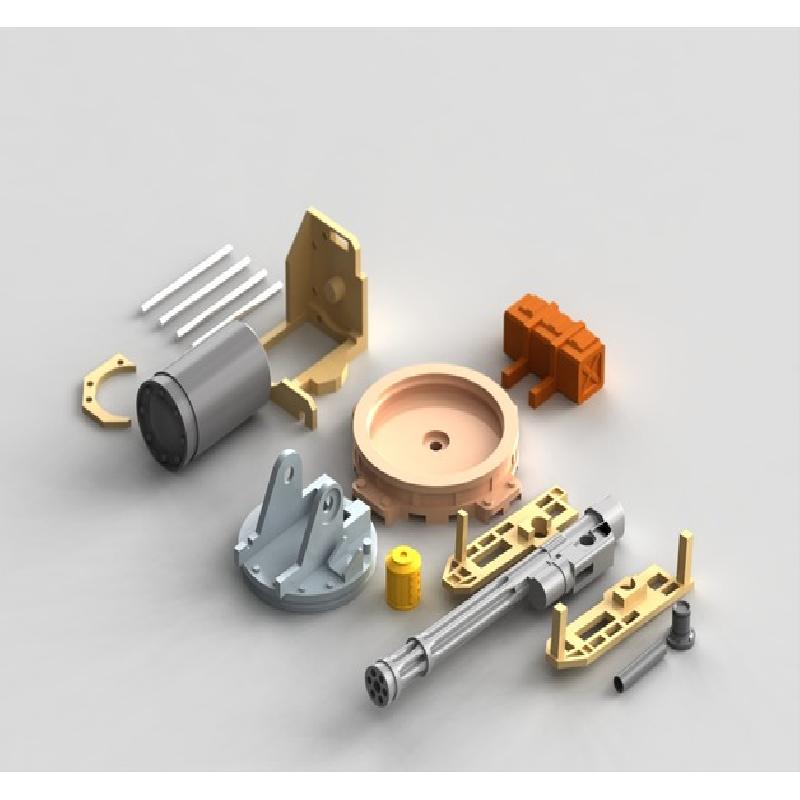

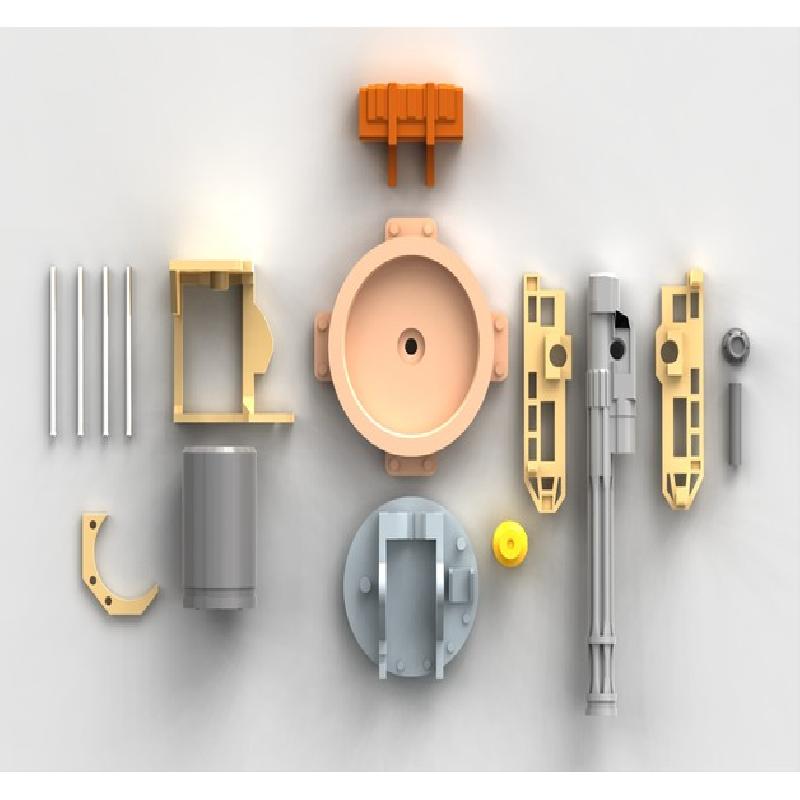

Designed to need little glueing, but some parts will need it. Barrel and barrel frame are some parts that need to be glued together, I added small guide shapes to ease the porcess here. Keep the barrel and fram seperate and it can pivot and you can exchange the barrel later on if you want.
My intentions are to design more of this kind of models and the base might be reused in the design then.
Printer Brand:
FlashForge
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0,12-0,2mm
Infill:
On some parts yes.
Notes:
assembly guide and step by step will come soon.
