by CDeviant

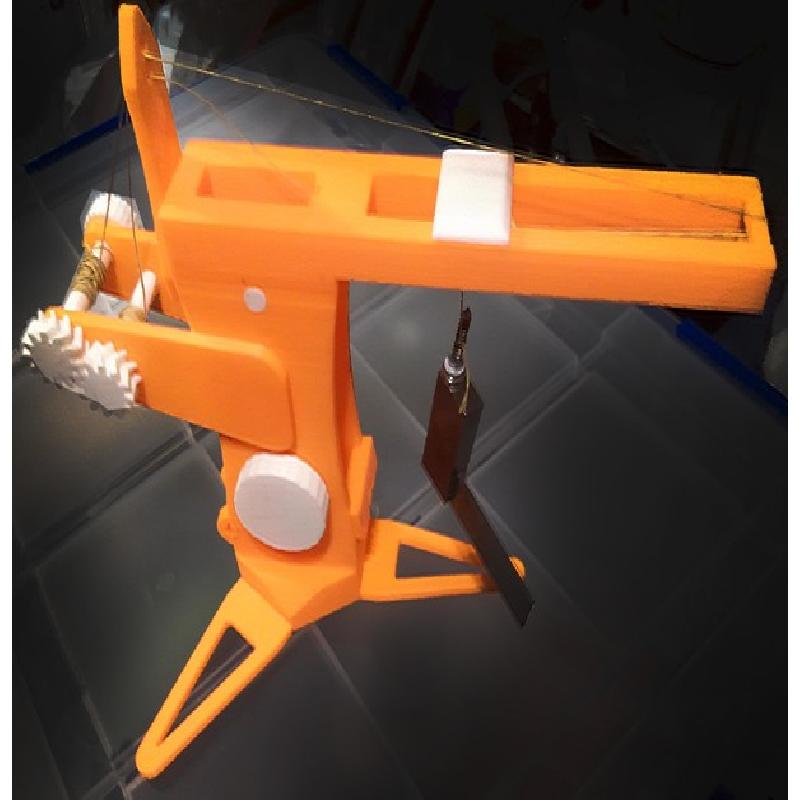

Roughly 8.5" tall, and 11" long when assembled.
All parts just press fit with pins, or have snaps.
Features a geared mechanism to hoist the guide back and forth. Plus, a ratcheting pulley to prevent the part from slipping down.
All parts all designed to be printed without supports.
You will need a few parts
1 rubber band for the ratcheting pulley
Some small string for the gantry, and crane
a magnet to grab things
Not strictly needed, but an 8mm drill bit for cleaning out the mating pin holes on the frame will make inserting the pins much easier.
I have made many iterations to make sure the parts fit nicely, but you may need to sand some surfaces.
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
25-30% Grid
Filament: Generic PLA Orange-frame/White-parts

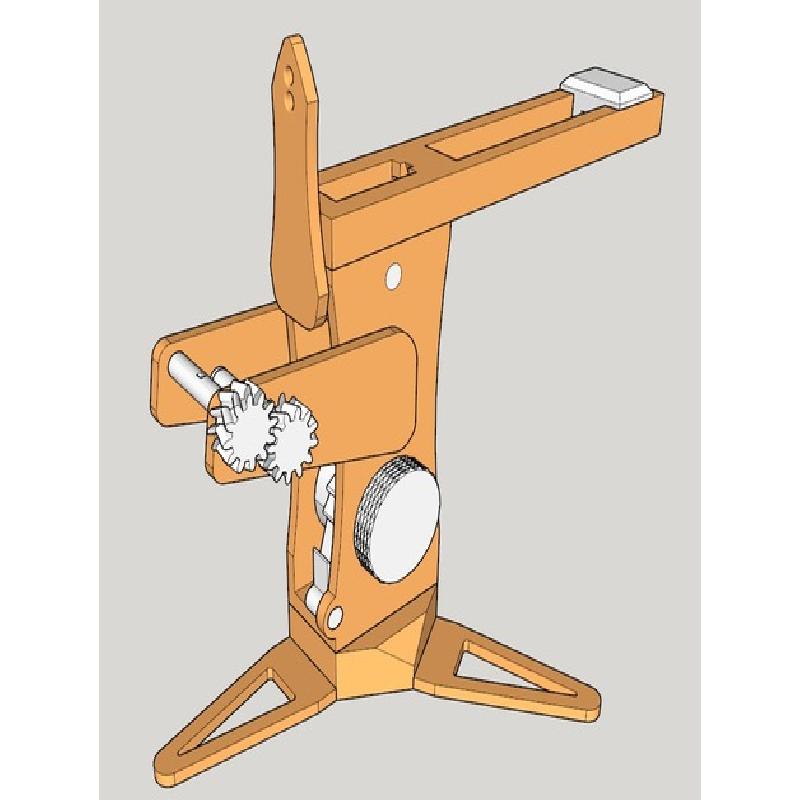

I designed all parts in Sketchup
