by yuris
After the radial I wanted a couple of improvements,
modular design (inline and/or flat twin)

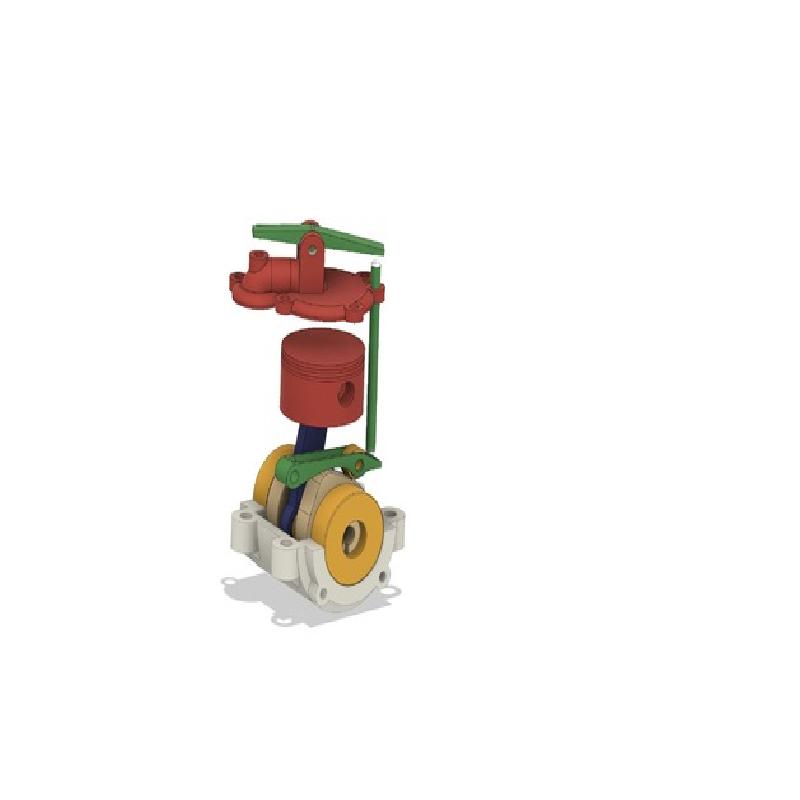

different crank
more efficiënt, the goal is to make it run on lung power ;)
mostly parametric design

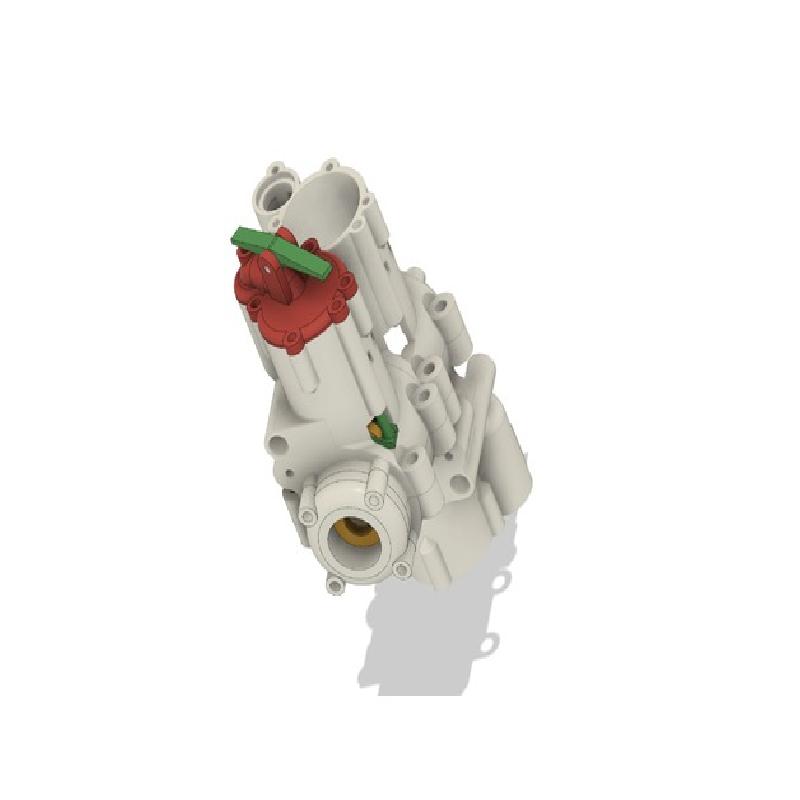

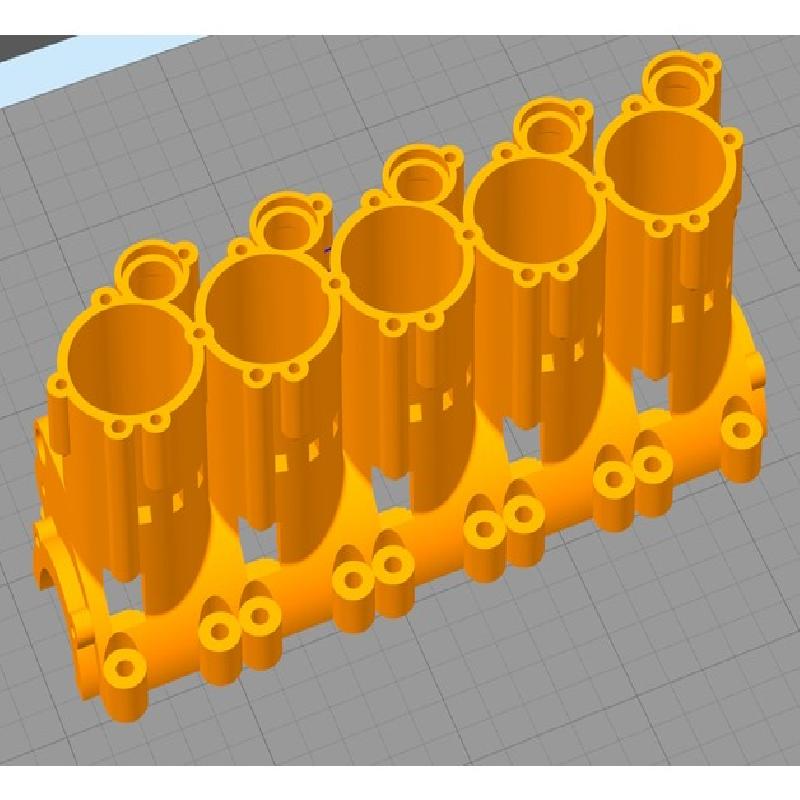

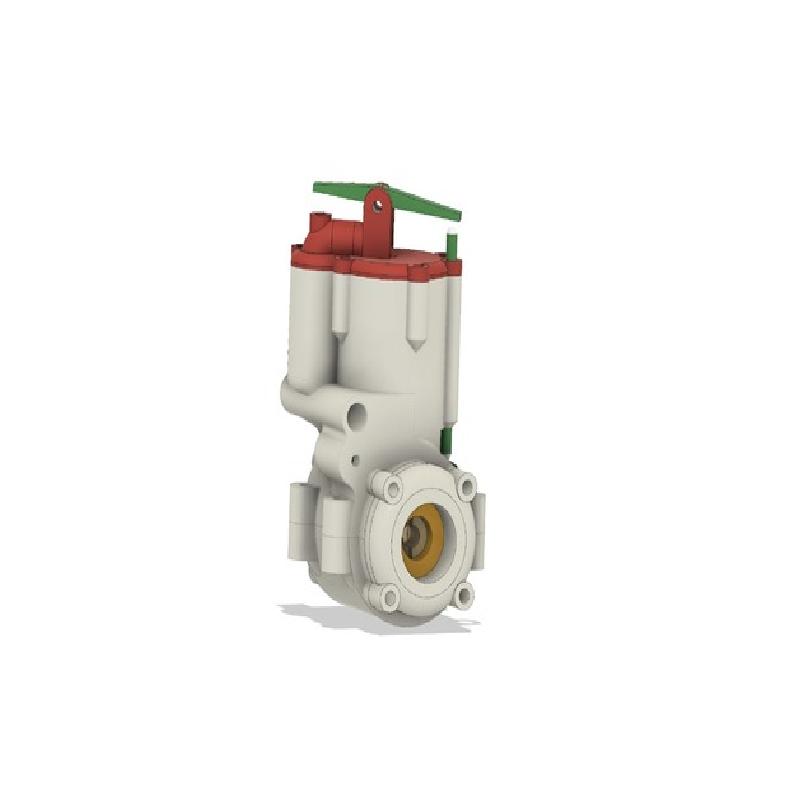

This design can be built as a single, a flat twin, or any multiple of those. You just need to print the cylinder 20mm apart so it's fused in your slicer. You should be able to maken en any inline or flat design. My goal is to make an inline 5, that's why the crank has a 72 degree offset.
It's still work in progress but I'll propably start printing in a couple of days.
I'm curious how the crank will hold up since it's a split design.
Some things need improvement, the air intake needs a better connection and I still have to close the other end off with an m5 bolt but i'm pretty confident that it will work.
Tips and requests are welcome ;)
