by BobertmaX

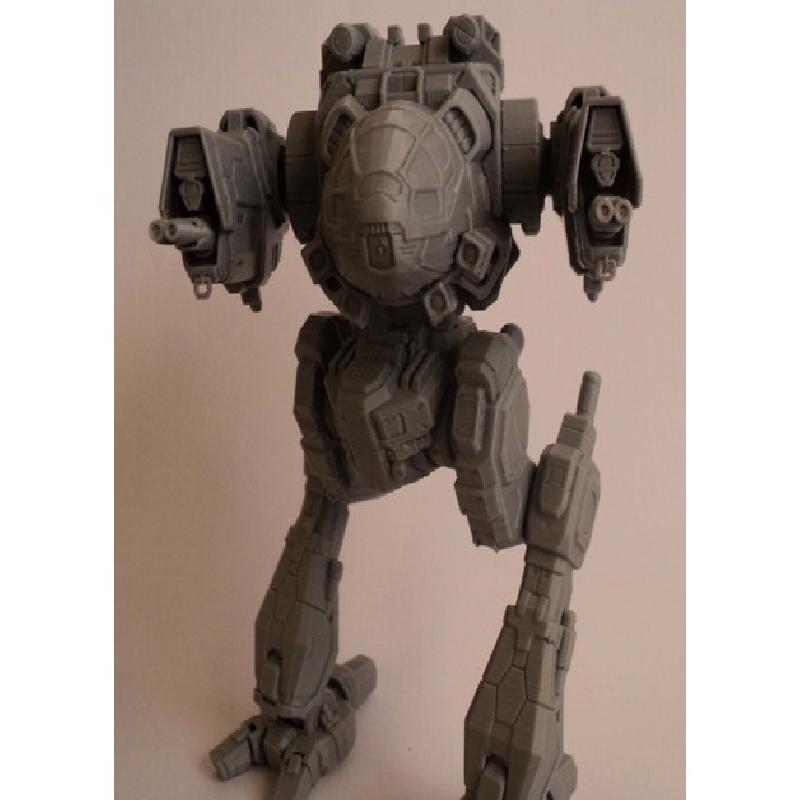

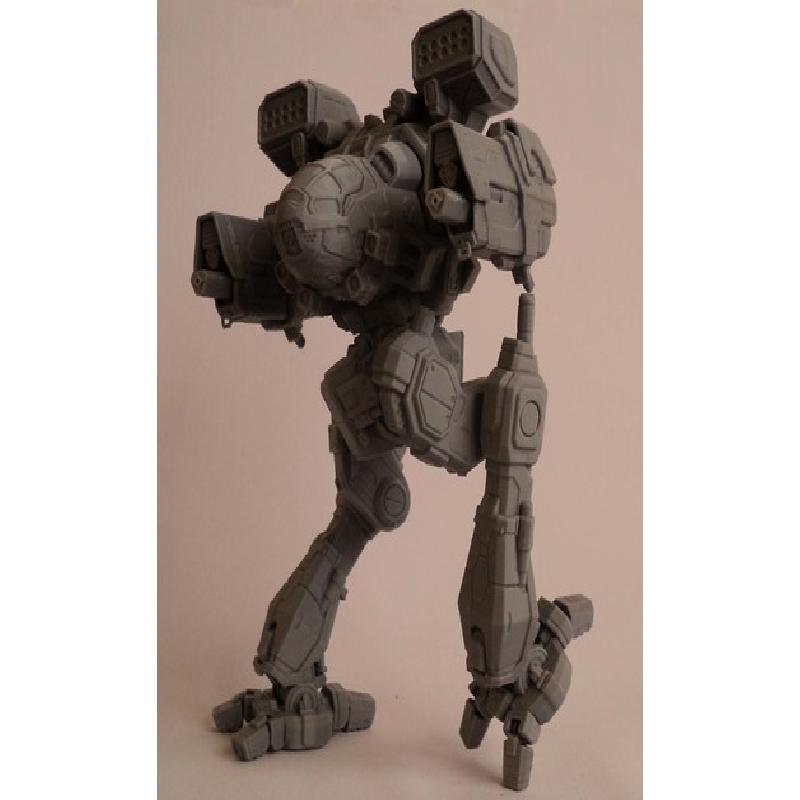

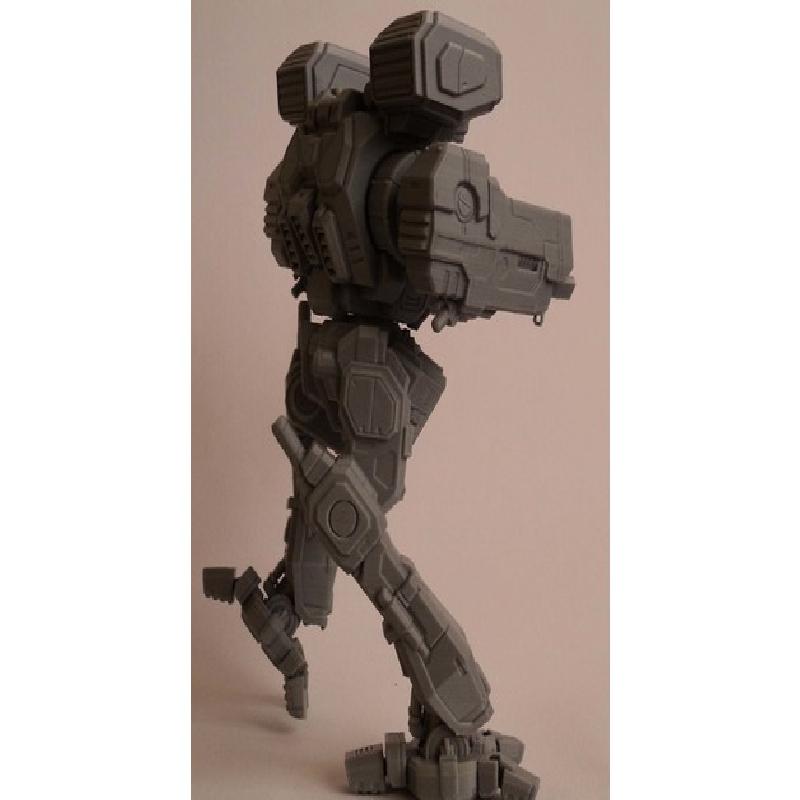

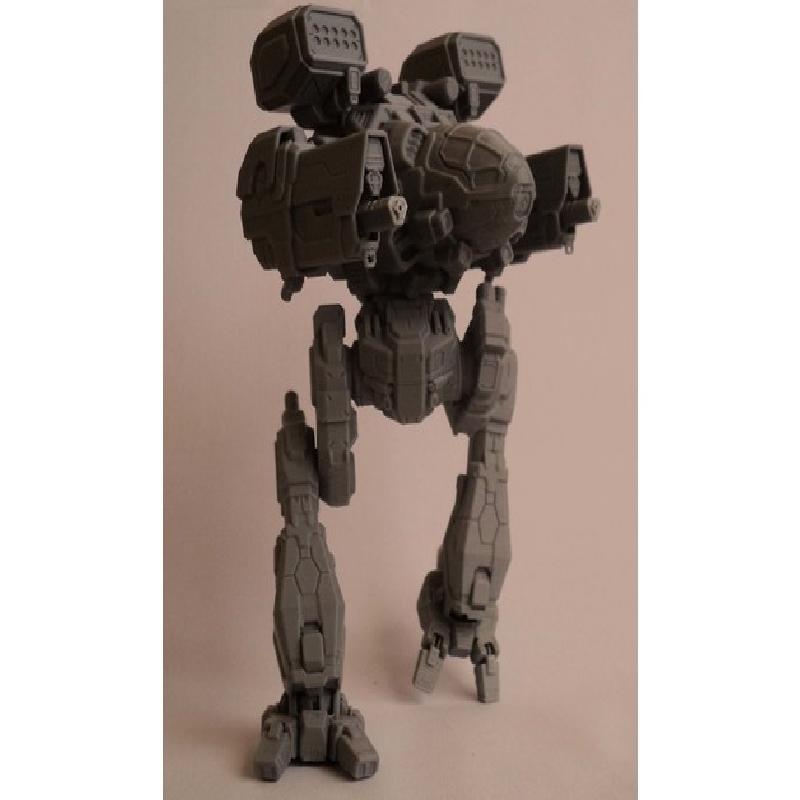

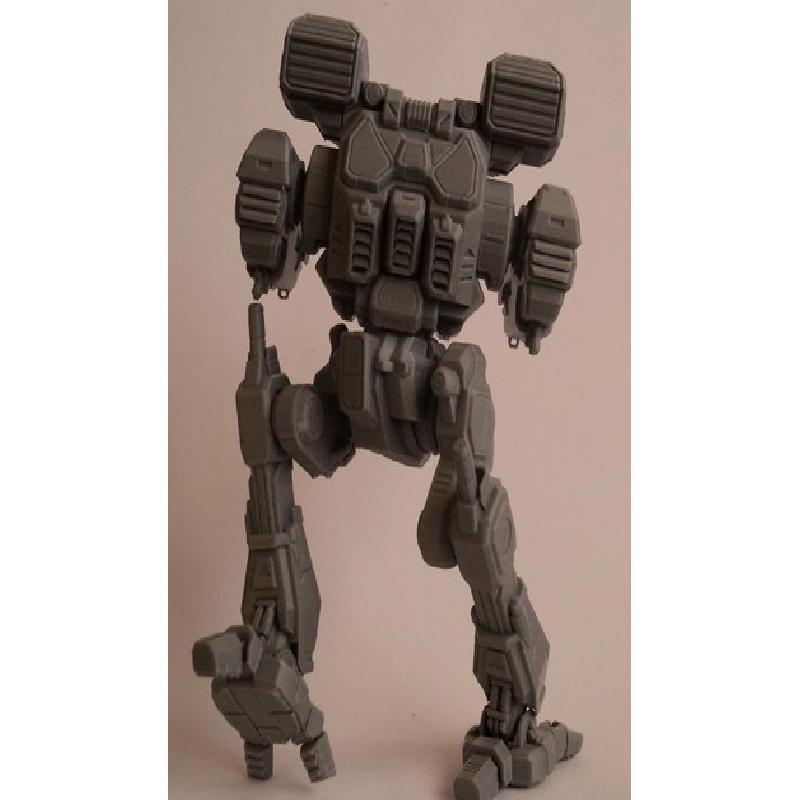

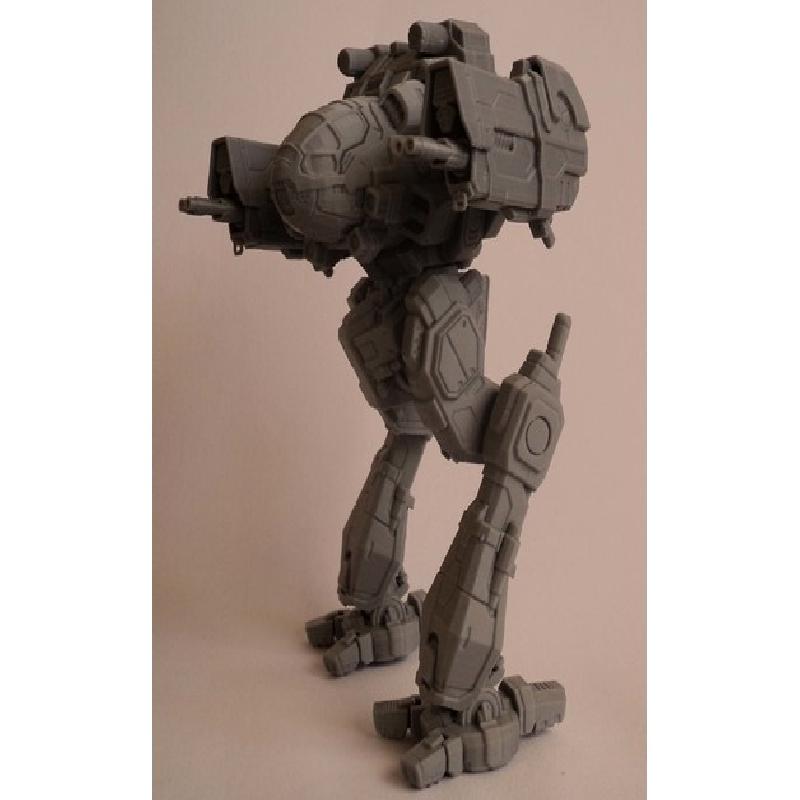

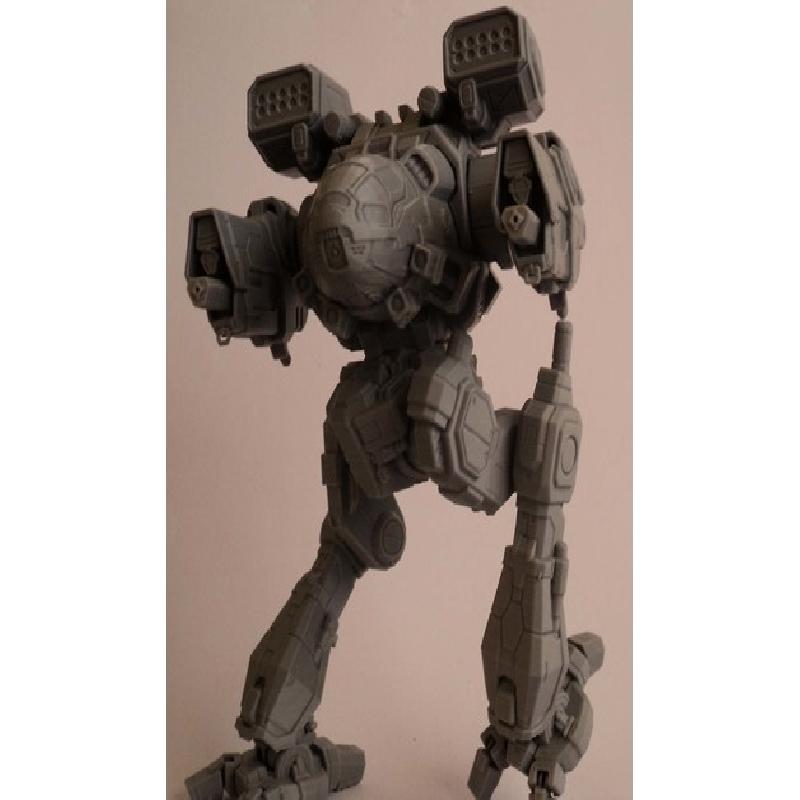

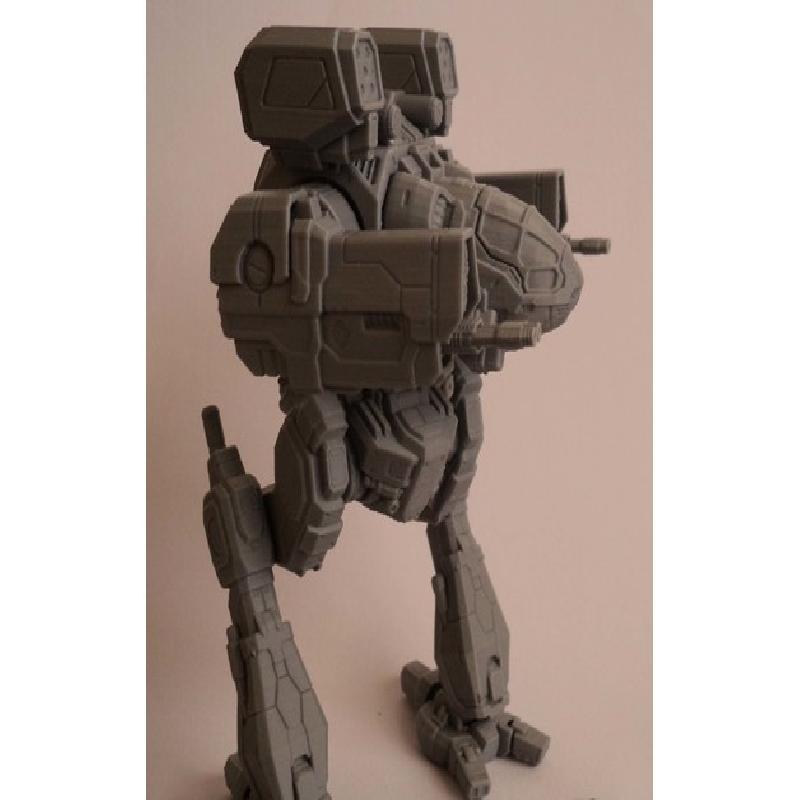

MechWarrior Online Mad Cat MKII, roughly 140mm tall.

Fully articulated, and tested, all parts should be 100% printer friendly and error free. With multiple Torso and weapon options (more than any previous), and like the Atlas, does not require any glue for assembly. LRM pods can be printed separately and attached to certain torso's to make even more options than the 12 that I provided, and I added a few more weapon attachments as well as re-doing a few. Making this the most customizable 'Mech I have done to this point.

Print Settings

Printer:

Anycubic i3 Mega

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.15mm

Infill:

10%

Filament:                                            eSun PLA+                                        Silver

Notes:

All the parts have been checked for errors and repaired. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. So you should not have any problems.

Printing Instructions:

MWO_ MadcatmkII_LeftLeg_Foot (Flip LeftLeg_Foot in X-axis for right leg) [Print 2]

MWO_ MadcatmkII_LeftLeg_Foot_BackToe (Symmetrical) [Print 2]

MWO_ MadcatmkII_LeftLeg_Foot_FrontToe_1 (Flip LeftLeg_Foot_FrontToe_1 in X-axis for right leg) [Print 2]

MWO_ MadcatmkII_LeftLeg_Foot_FrontToe_2 (Flip LeftLeg_Foot_FrontToe_2 in X-axis for right leg) [Print 2]

MWO_ MadcatmkII_LeftLeg_Lower (Flip LeftLeg_Lower in X-axis for right leg) (Two options) [Print 2]

MWO_ MadcatmkII_LeftLeg_Top (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_ MadcatmkII_Waist [Print 1]

MWO_ MadcatmkII_Torso_Pin [Print 1]

MWO_ MadcatmkII_Torso (Twelve options) [Print 1]

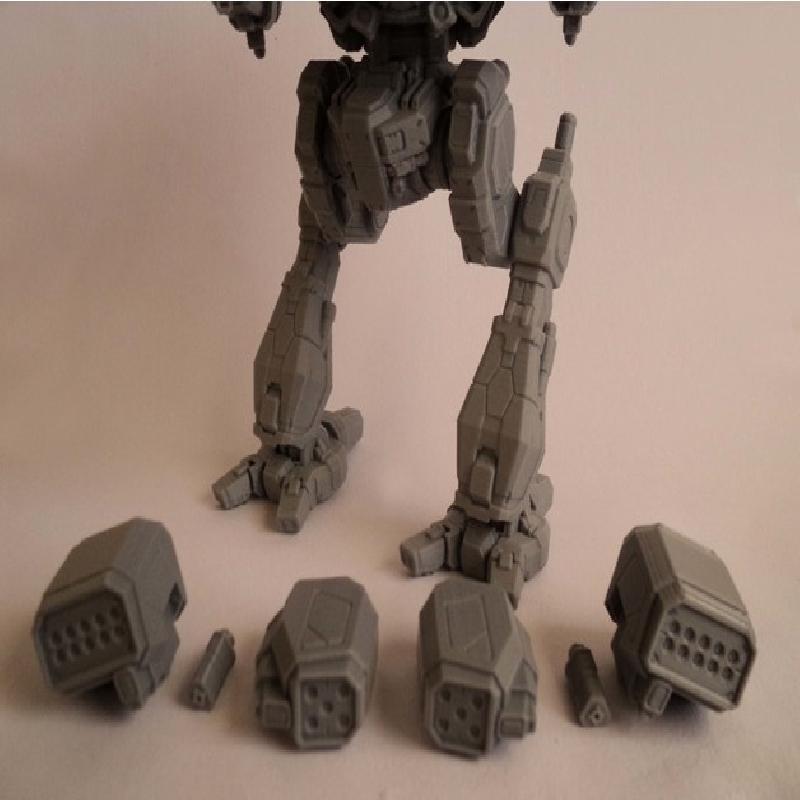

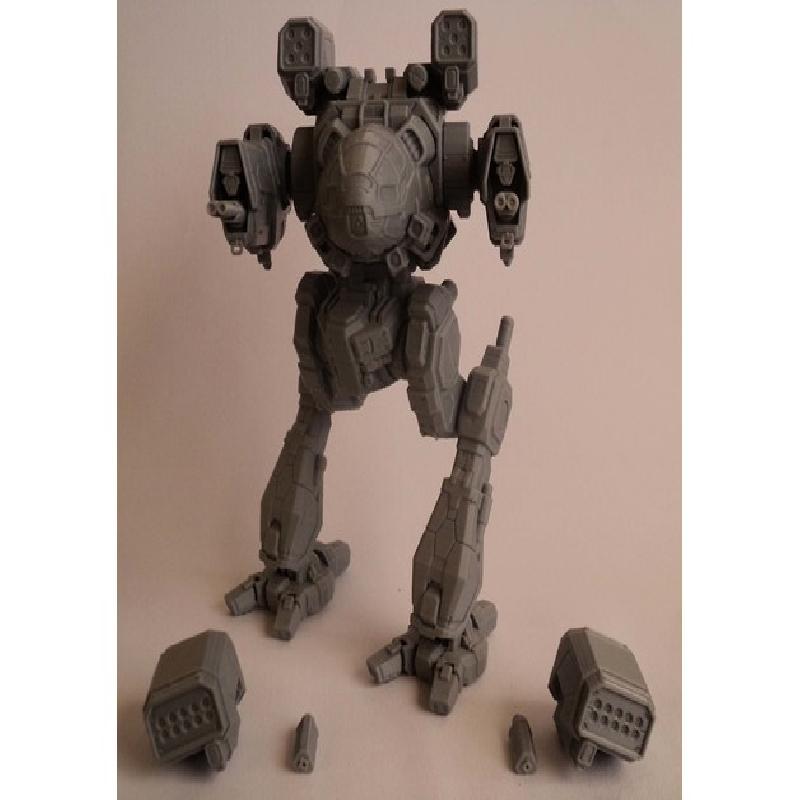

*Some of the Torso options have open shoulder sections for LRM attachments, where any of the "MWO_ MadcatmkII_Torso_LRM"s can be used (flip Torso_LRM in X-axis for right side) [Print 1 or 2 depending]

MWO_ MadcatmkII_LeftArm (Flip LeftArm in X-axis for right arm) (Seven options) [Print 2]

*Some of the Arm options have weapon attachment slots, where any of the "MWO_ MadcatmkII_Weapon"s can be used [Print 1 or 2 depending]

If you experience any problems, or would like to ask me something, please leave a comment.
