by Dubladockus

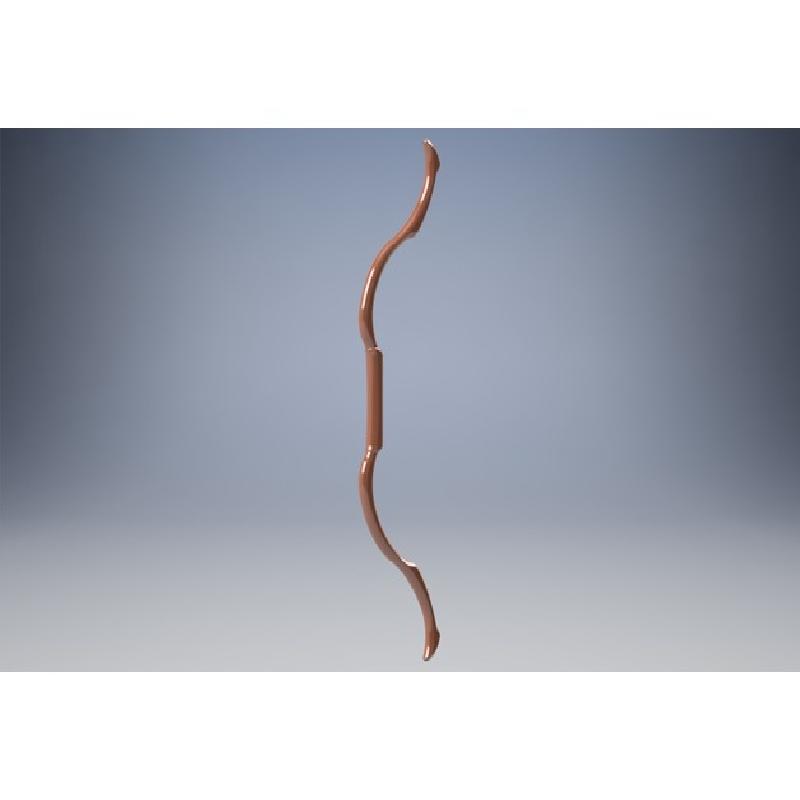

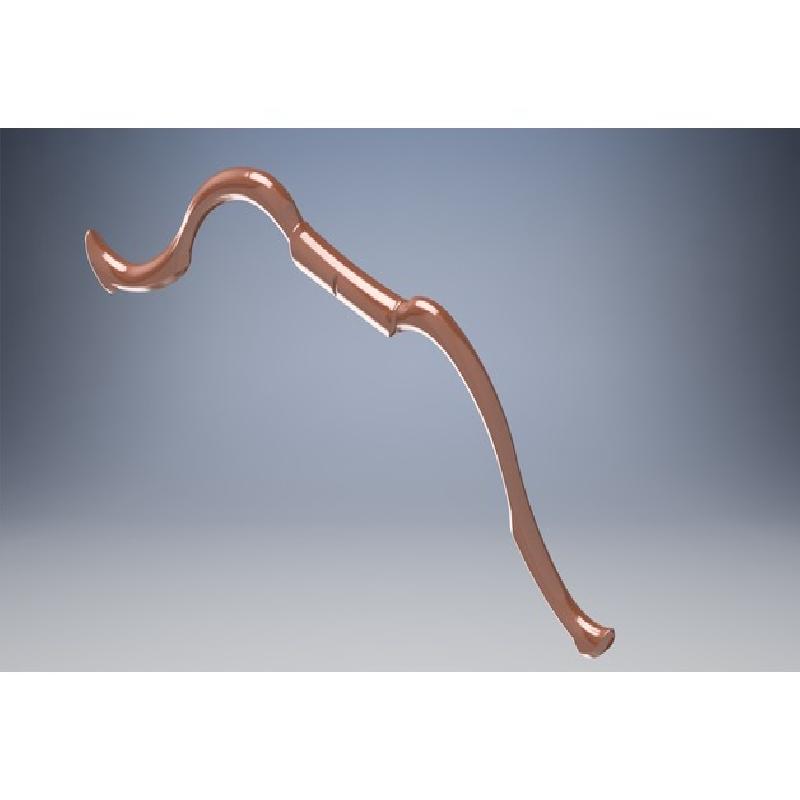

I have designed this bow inspired on the Tauriel version of the Hobbit movies. The length of the bow is 1 meter and the depth is about 30centimeters.

Print Settings

Printer Brand:

Creality

Printer:

CR-10

Rafts:

No

Supports:

Yes

Resolution:

.25

Infill:

8-15%

Filament:                                            - up to you ( I use PLA)                                        -

Notes:

The model must be scaled to a 1000%, for some reason my 3d software doesn't export the right size. I printed the model with a 230 celsius nozzle temperature for better layerbonding.

Use a reasonable brim or have a very good adhesion because of the length of the objects and the small surface attached to the build plate. Use a support overhang of 51-52 percent to have no support on 4/6 parts, 2/6 require a small amount of support.

I have broken the model up in 6 pieces which can be placed into eachother using a good quality glue will make it stick forever. (I use Loctite 60 seconds glue making it never able to detach)

You need a minimum height of 22.4 centimeters to print the Largest model, for rescales send me a message and I will make it fit for your printer.
