PMA-2 AP MINE / PMA-2反人员地雷
Historical Prop
Price£0 List:£0.39
Stand by Free Shipping(可下载)
SOLD0 [Comment0Article]
PMA-2_AP_MINE_Historical_Prop.zip Click to download Downloads: 0

- +
Add to Cart
In Stock:99
Seller:Model City 模型城
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

by mussy

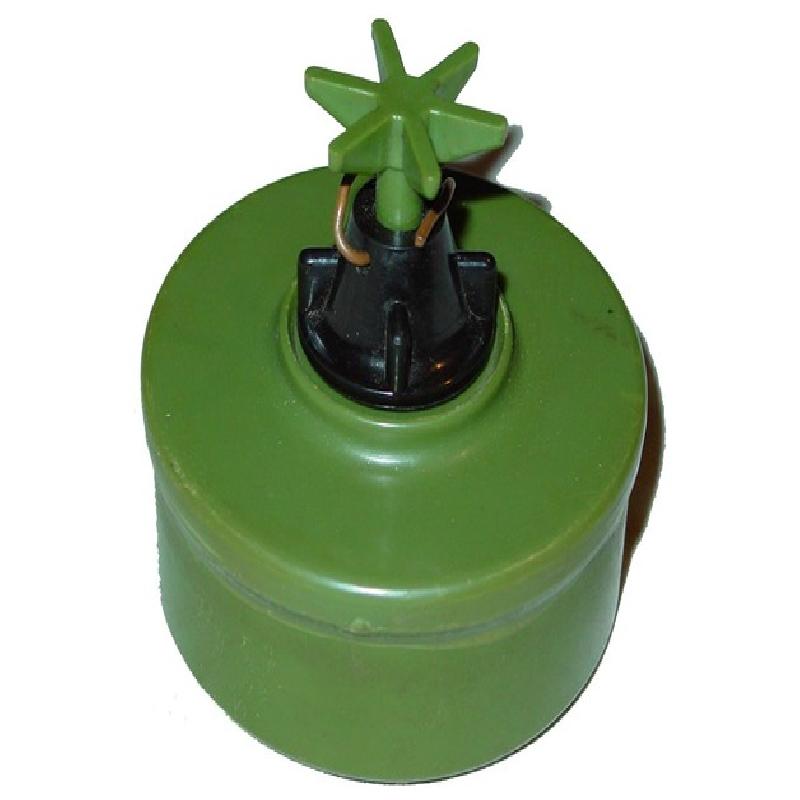

The PMA-2 is a Yugoslavian blast antipersonnel mine. Sometimes referred to as the 'Pašteta', due to its superficial resemblance to a meat-pâté tin. The mine is constructed from dark green plastic, with a distinctive plunger which has six petals radiating from it.

Overview

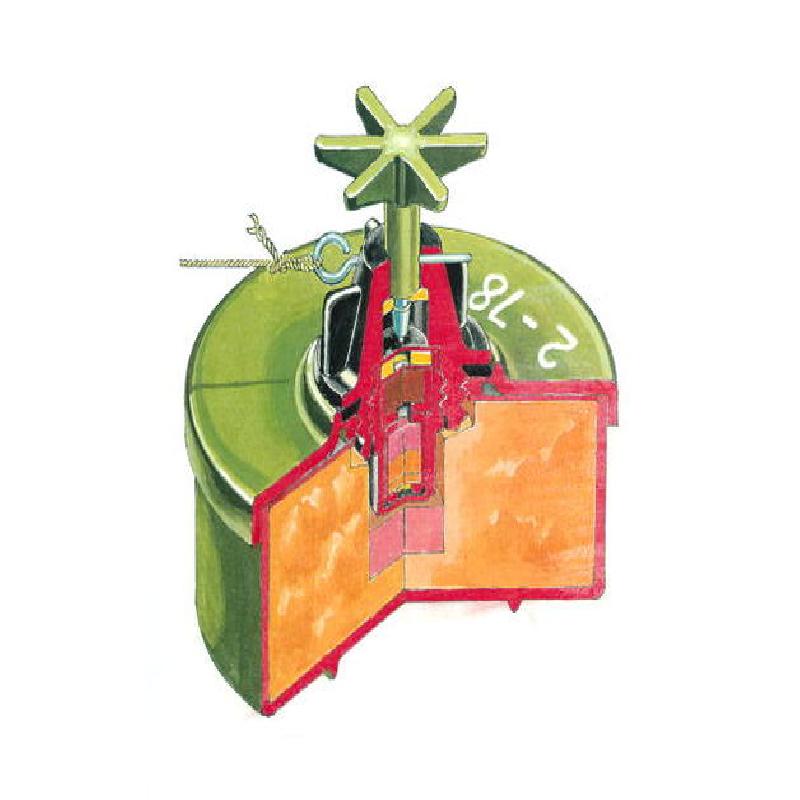

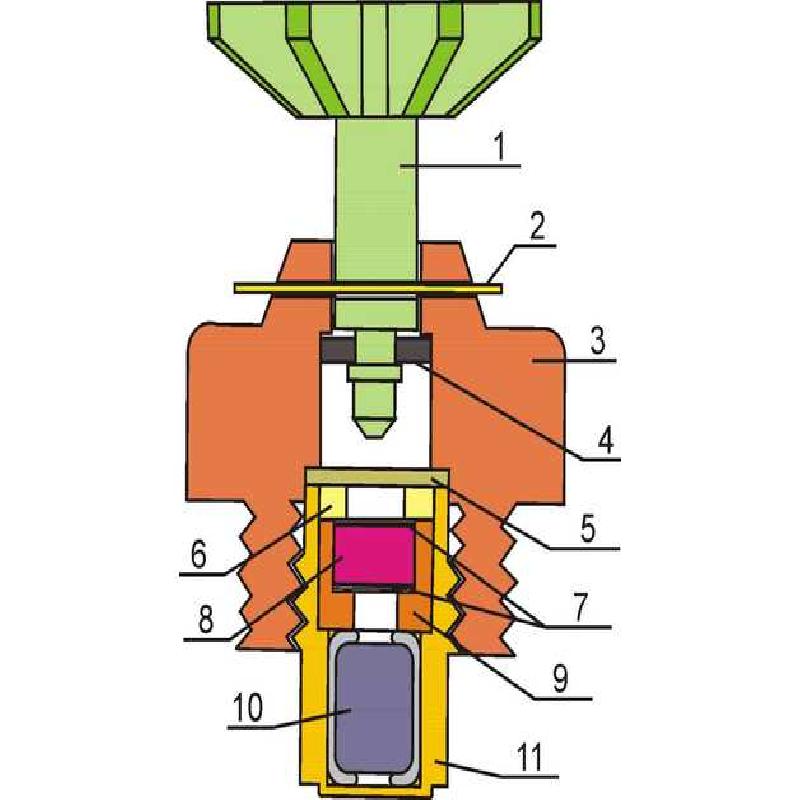

The mine is armed by removing a pin which blocks the downward travel of the six-pronged plunger. After removing the arming pin, sufficient pressure on the plunger (by the victim's foot) forces it downwards into the main fuse body, which ignites a friction-sensitive pyrotechnic composition. The burning pyrotechnic composition flashes through to the detonator which fires, initiating a small RDX booster pellet which in turn detonates the main TNT explosive charge.

Generally, PMA-2 mines are buried in such a way that only the star-shaped plunger is visible above ground. However, although this mine is not completely concealed (unlike so many others), it can be very difficult to spot it, particularly in heavy undergrowth or leaf litter.

Note: this mine can also be placed in other ways to hinder visual detection and/or the de-mining process. For example, sometimes PMA-2 mines are placed completely upside down with only a centimeter of the base showing above ground level. Alternatively, they may be buried diagonal to the ground surface, in such a way that the star-shaped plunger (now completely hidden underground) is facing a de-miner's clearance probe. A minefield containing PMA-2 mines may have them placed in some or all of the three different ways described.

This mine is resistant to traditional explosive mine countermeasures, which use sudden blast over pressure to detonate mines. Additionally, the PMA-2 is a minimum metal mine, containing only a tiny amount of aluminium in the fuze.

Although the blast wound from a PMA-2 mine is unlikely to be fatal, it usually destroys the victim's foot, thereby leading to some form of permanent disability regarding their gait.

Examples of the PMA-2 mine have been found in Albania, Angola, Bosnia, Cambodia, Croatia, Kosovo, Zimbabwe and Namibia.

Specifications
Weight: 135 g
Explosive weight: 95 grams TNT
Fuze: UPMAH-2
Diameter: 68 mm
Height: 61 mm
Operating pressure: 7 kilograms (approx)

!Don't forget to check out my other Cool designs and Follow my Daily dose KooKoo uploads, Enjoy ;)

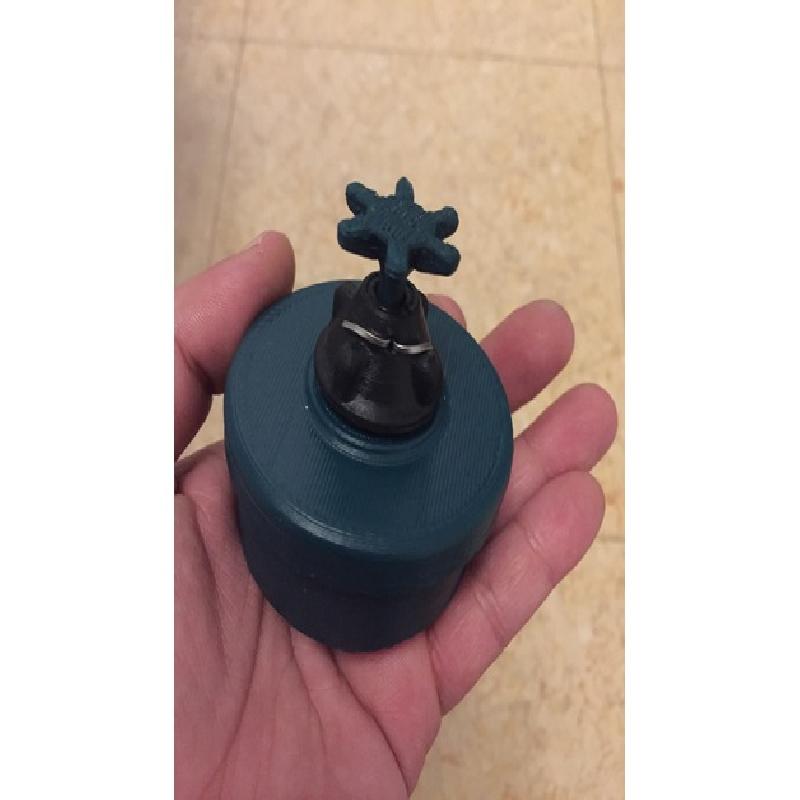

Print Settings

Rafts:

No


Supports:

No


Resolution:

0.2


Infill:

35%


Filament:                                            E-SUN PLA+                                        BLACK

Notes:

4 Shells
@215 C
1/1 SCALE
