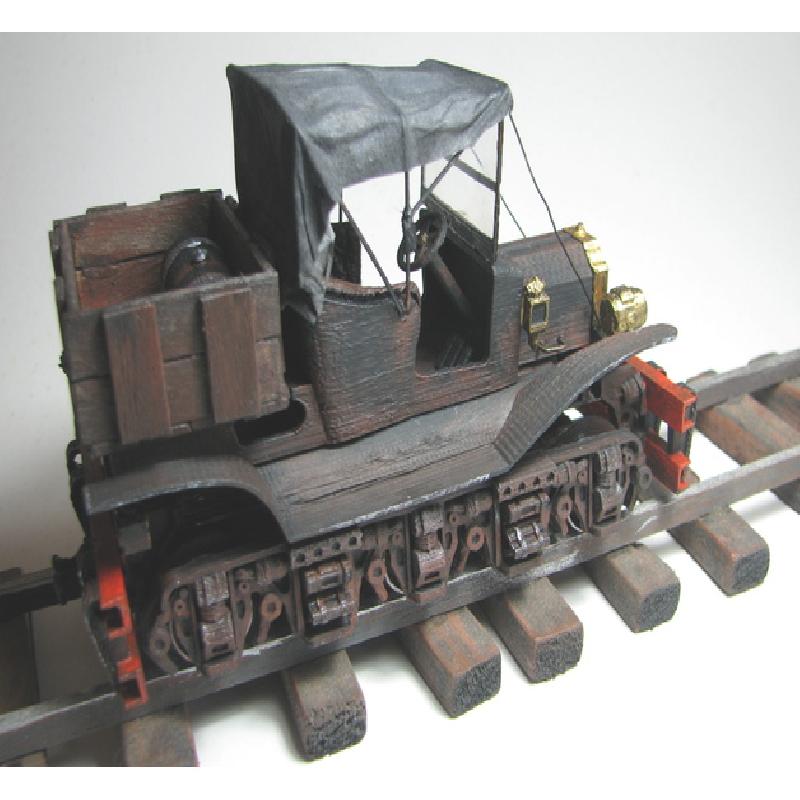

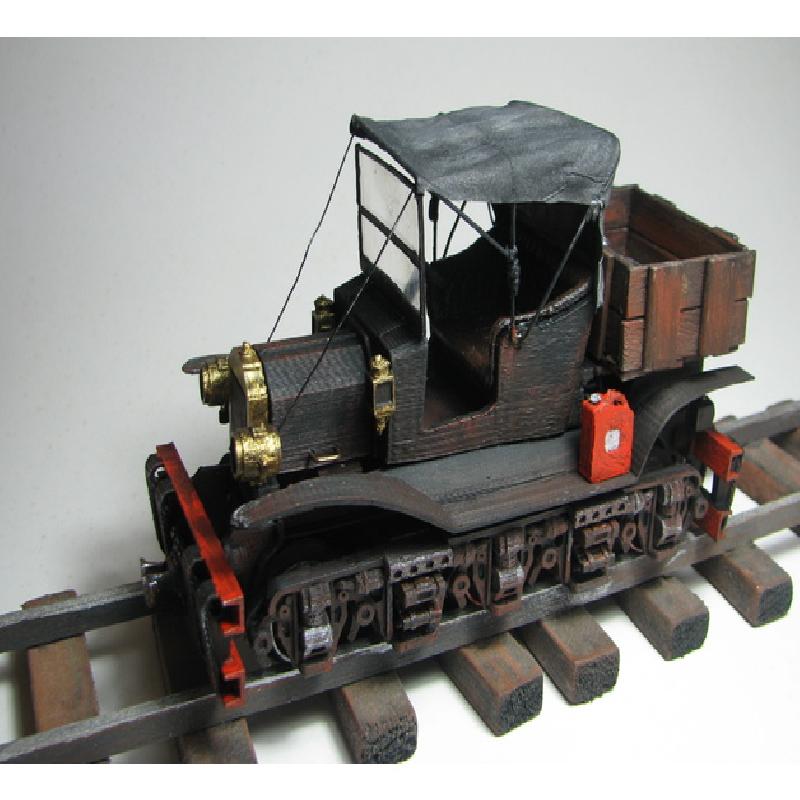

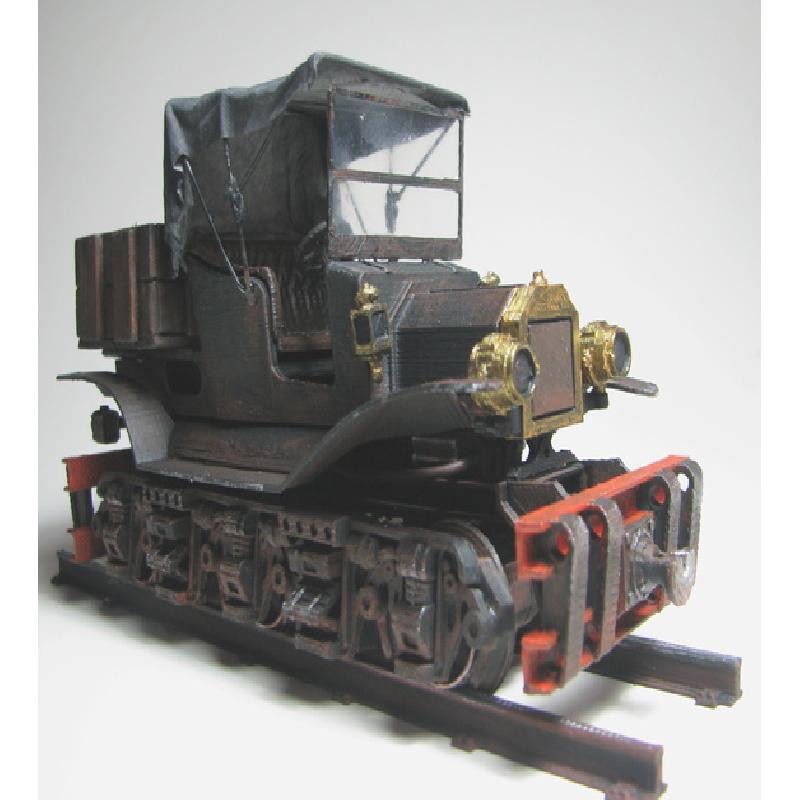

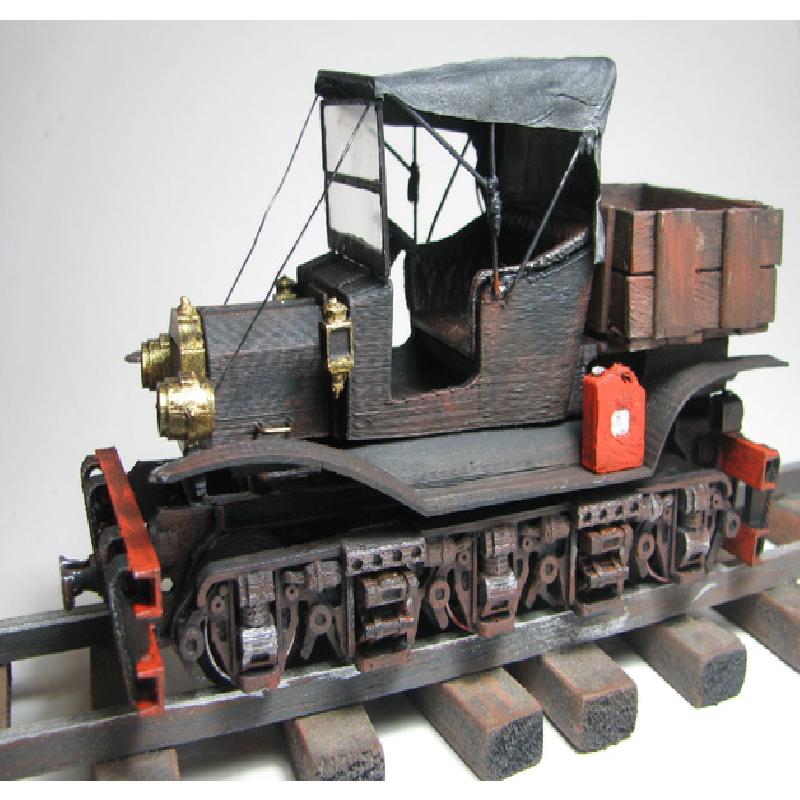

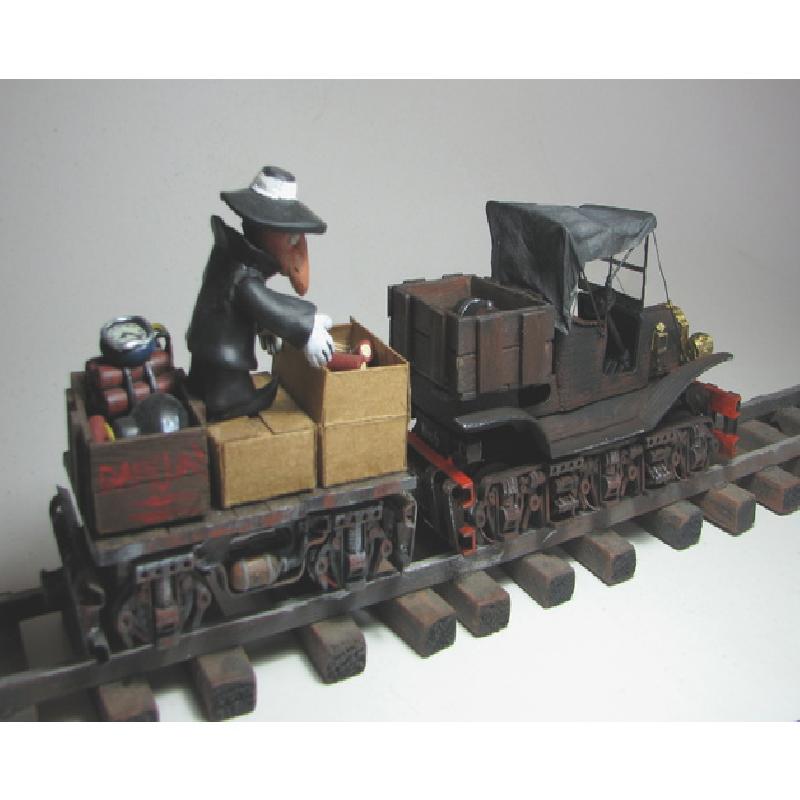

This was just a short and fun project I designed and built for my Dad.

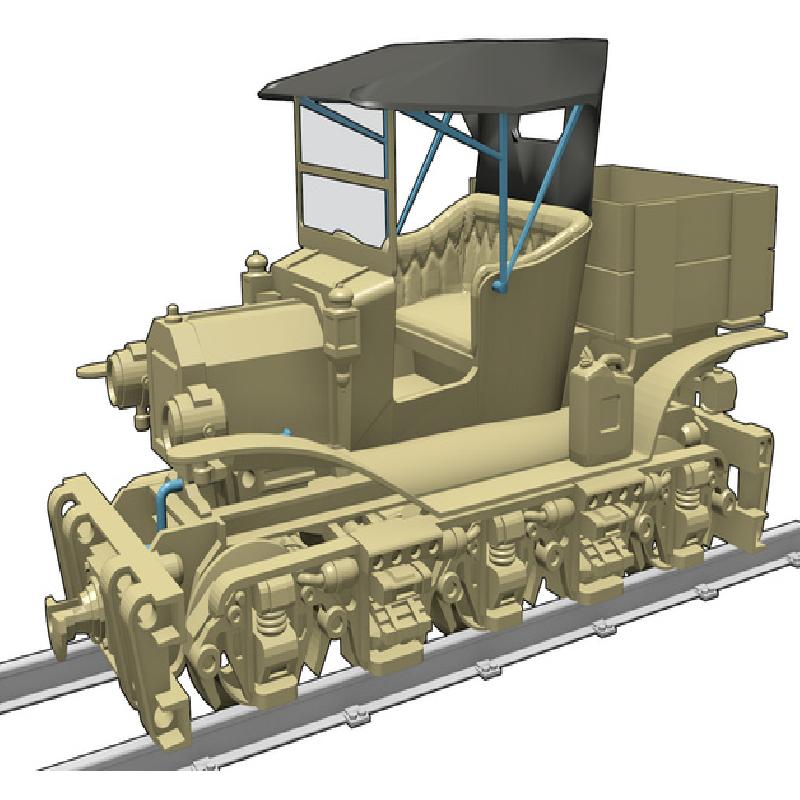

While the model is more or less a Ford Model T it is not exact and not to any particular scale.

This model is about 150mm long and is designed to fit a track with 36mm between the inside surfaces of the two rails.  In other words it is compatible with most of my other rail-mounted models.

There are a few non-printed things you will need to complete it.  These are;

• Some fine wire for the two stays from the front of the canopy to the headlight supports

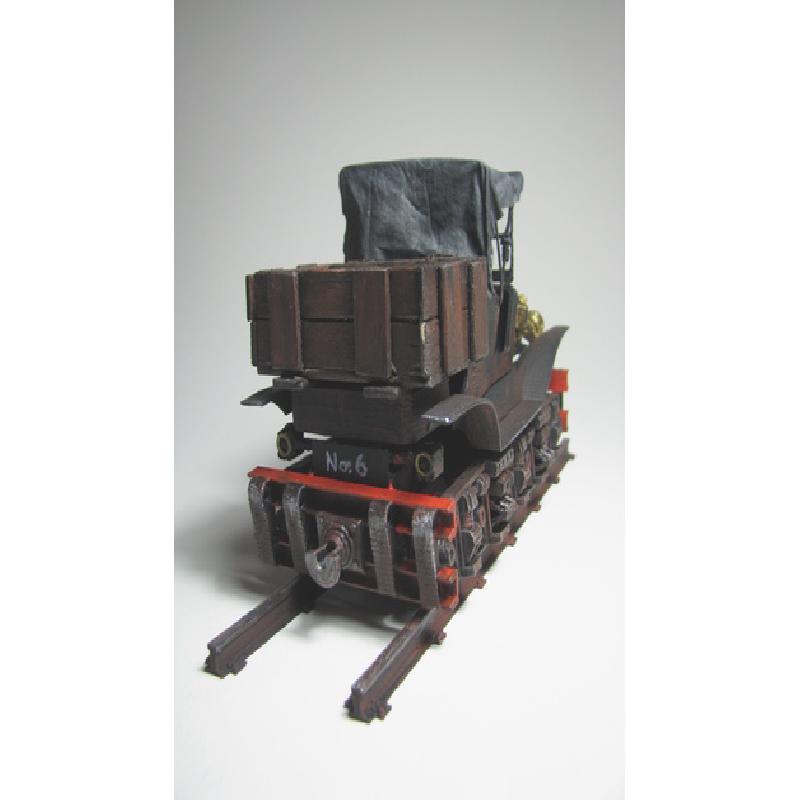

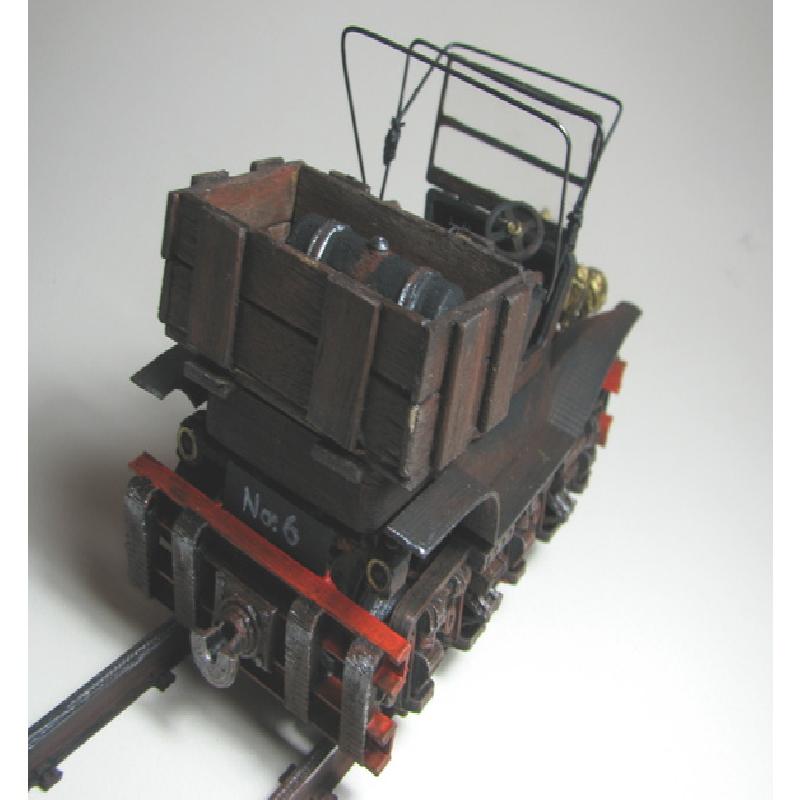

• Some ice-block sticks for the wooden crate on the back.

• Some Ø4mm dowel for the axles and locator pins

• Some Ø3mm dowel (or kebab stick) for the steering wheel column.  Seeing as it is a train and does not need a steering wheel you may choose to ignore this bit.

• Some thin clear plastic sheet for the windscreen.

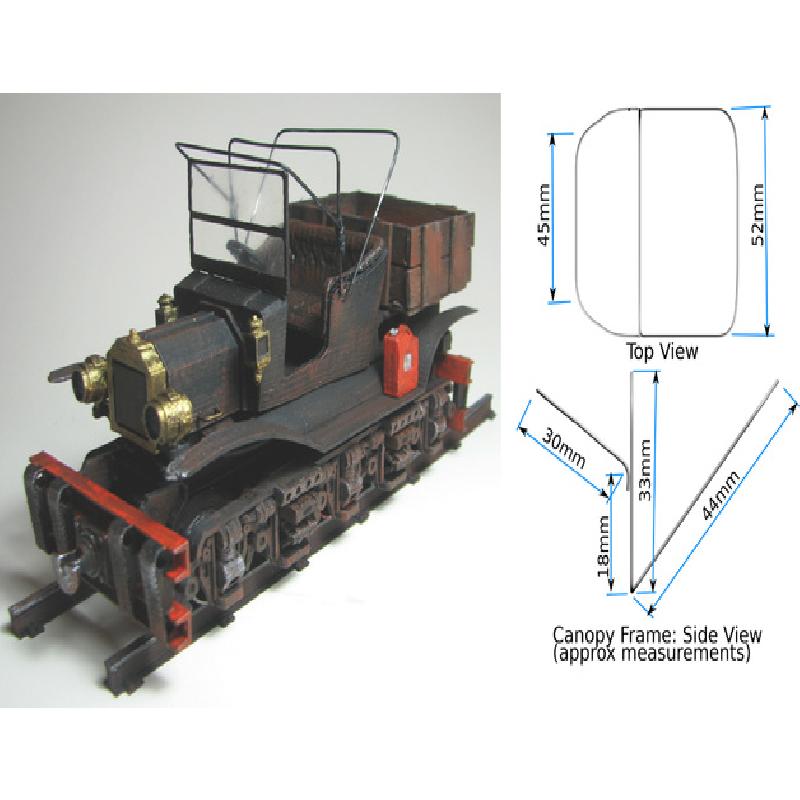

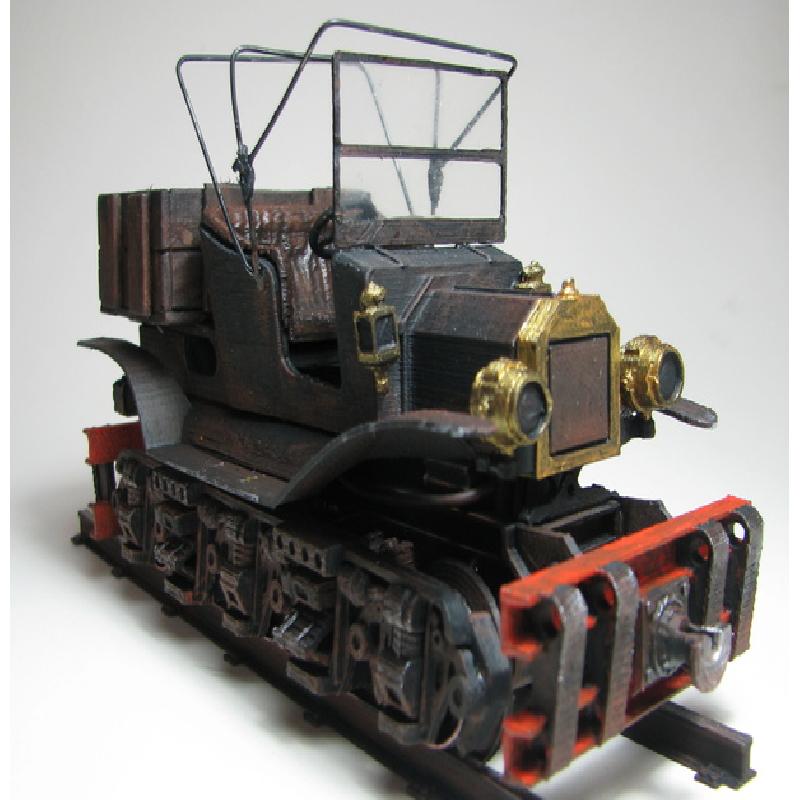

• Some relatively thick wire for the canopy frame (if you are making the canopy).  I used TIG welding wire which is about Ø1mm diameter.

• Some tissue paper – not fancy tissue paper either.  This is for the canopy.

• Some heavy(ish) insulated wire to model some pipes running from the front to the back.

You will find the model files are all of the format “Vintage_RailCarv6-Blahblahblahx2.stl” where the last bit is the number of that item you will need to print. You can expect a good size pile of pieces by the end of your printing session.  None of the pieces require support, although some may benefit from a bit of work with a craft knife or file where some of the overhangs may droop for the first layer.

Assembly instructions are included in a pdf in the downloads for this project.

Have fun.
