by wakalics, published

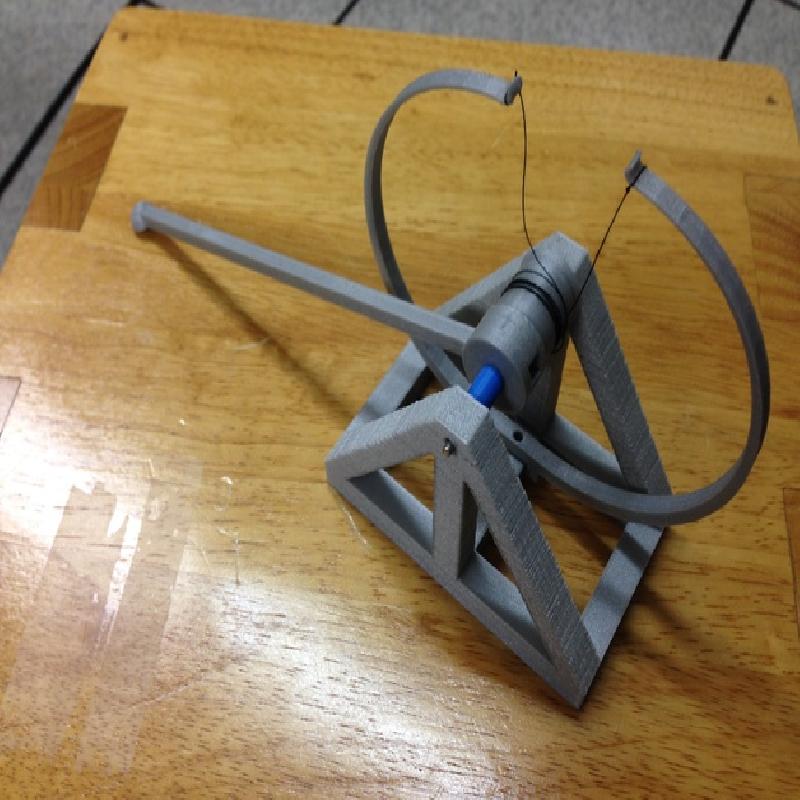

A da Vinci Style Catapult reproduced by 3D printing technology.
Every parts can be printed without support.

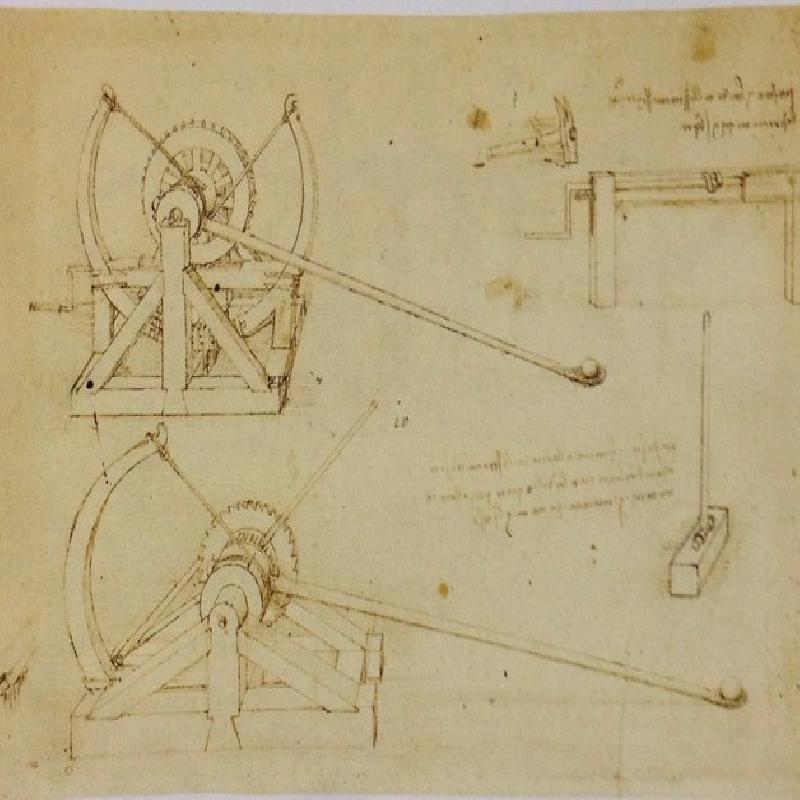

Refer to Leonardo's Machines: Secrets & Inventions in the Da Vinci Codices by Mario Taddei, Domenico Laurenza), Edoardo Zanon
My blog: http://wakalics.blogspot.kr/
Youtube Link: http://www.youtube.com/watch?v=Gj7cbOEd24M&list=UUO-bsUJqu_i_O71Kg39OlBg
Parts to print:

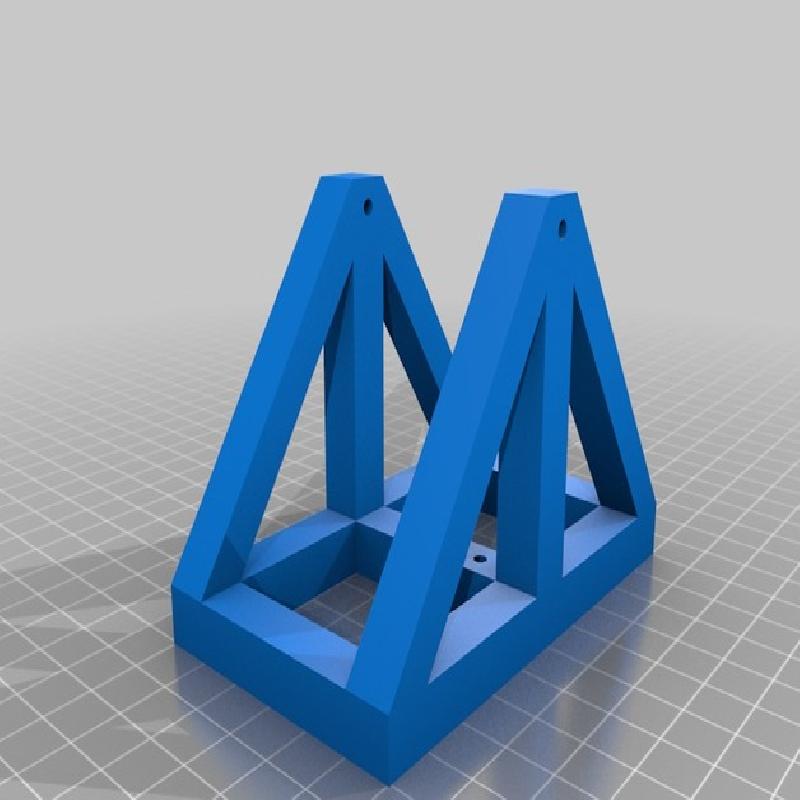

x1 Base.stl

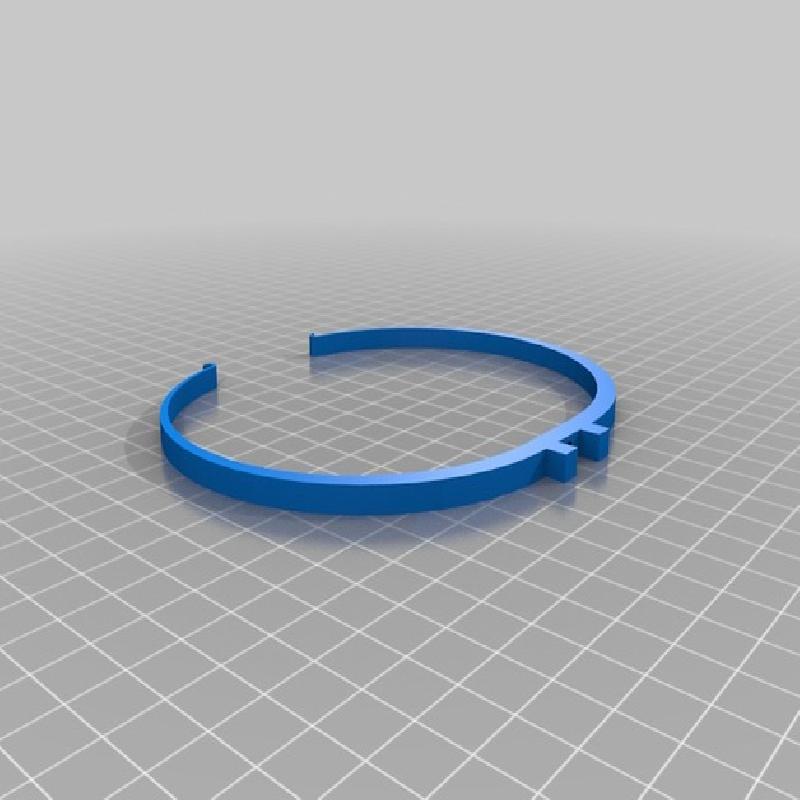

x1 Spring.stl

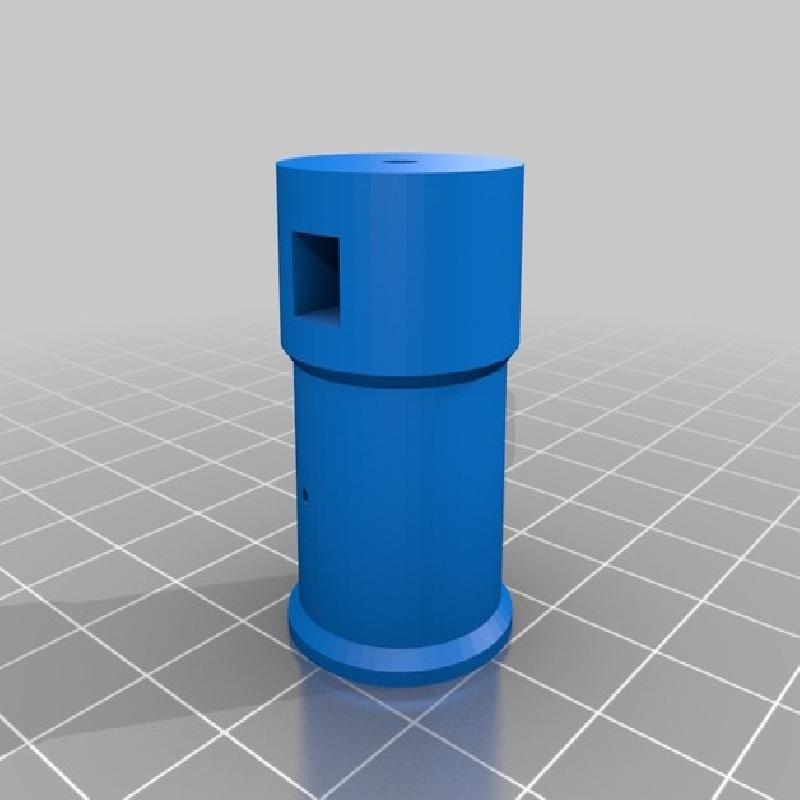

x1 Drum.stl

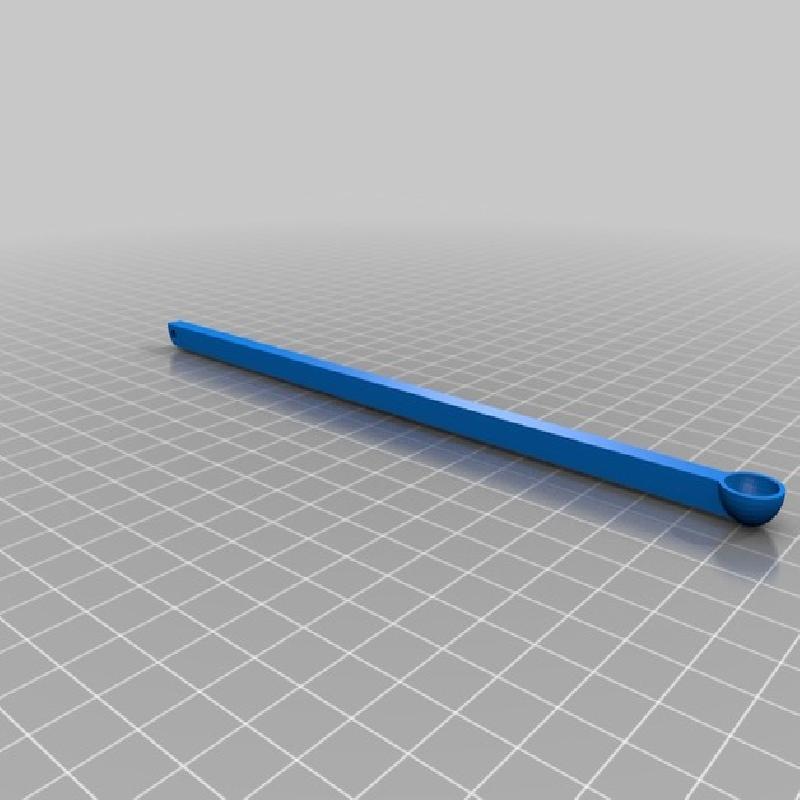

x1 Spoon.stl

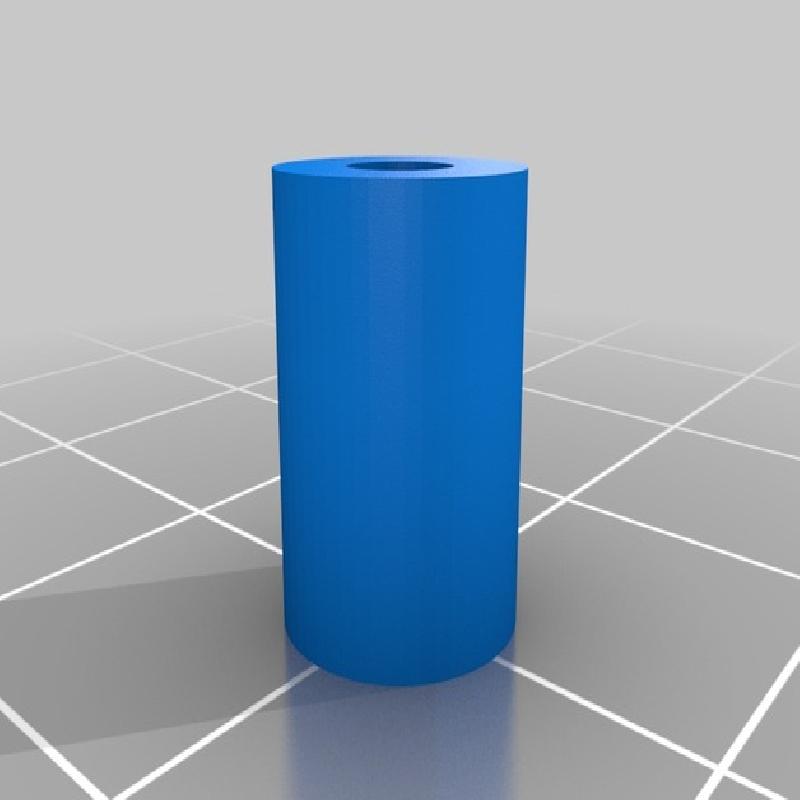

x1 Spacer.stl
Vitamin:
A rod of diameter 2.5mm(0.1 inch)
String
Step by step guide:

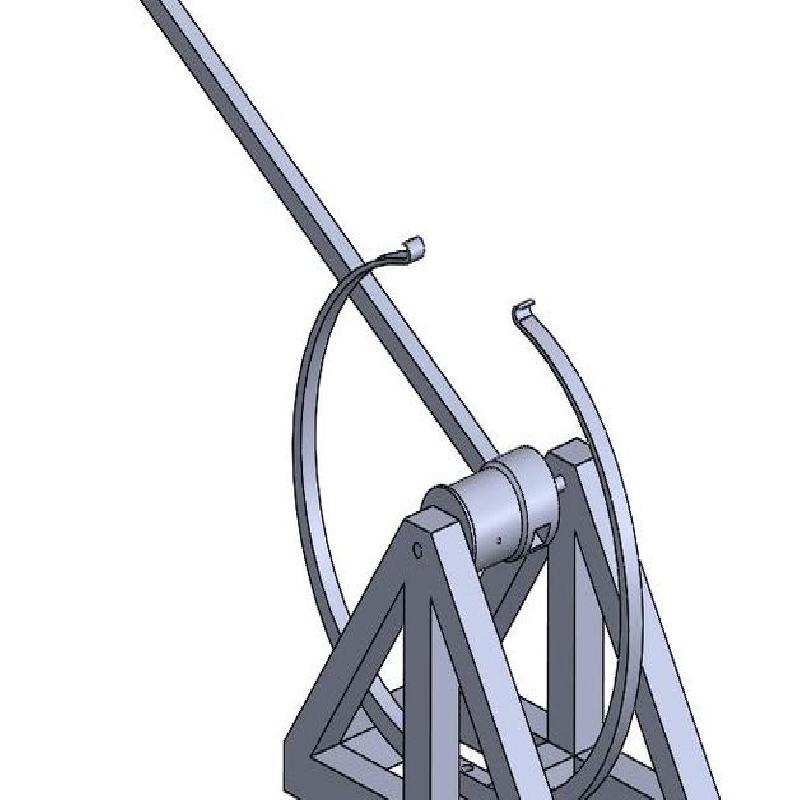

Bond the base and Spring. The holes must concentered. Refer 3rd photo.
Put the end of the spoon into the square hole of drum. The open face of spoon must be perpendicular to the circular hole of the drum.
Penetrate the base, drum and spacer by rod. Cut the rod into appropriate length
Pass through the string into the hole at the middle of the drum. Wind the string to the drum and tie each end to the spring.
Enjoy throwing things!
