Summary

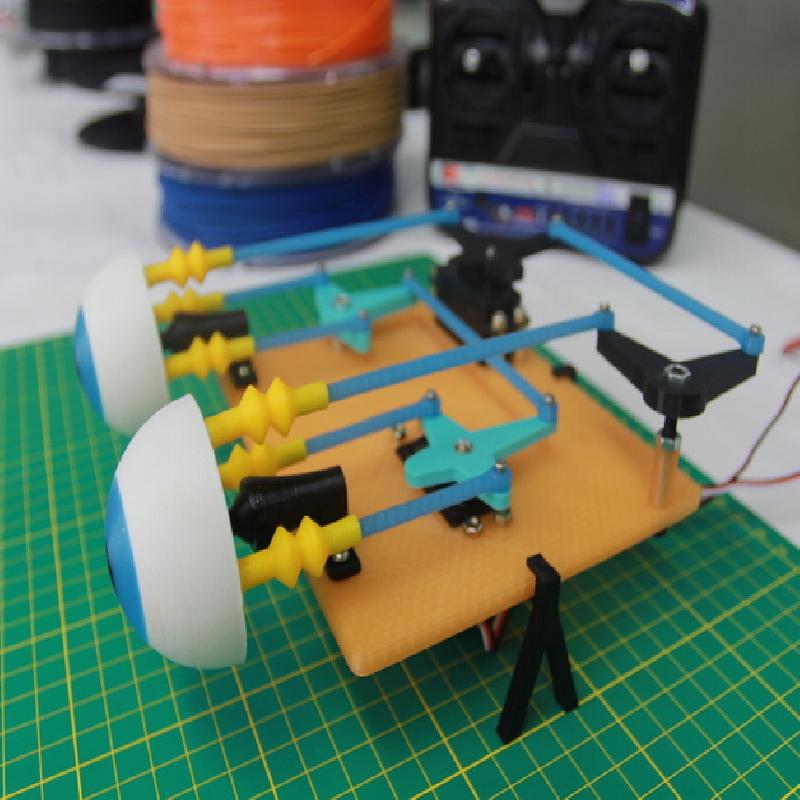

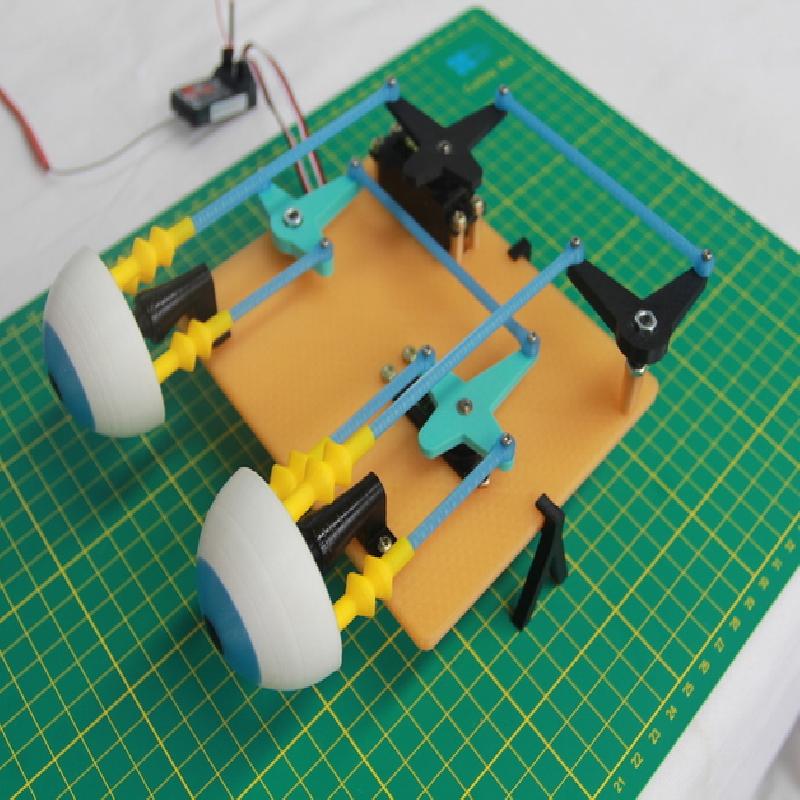

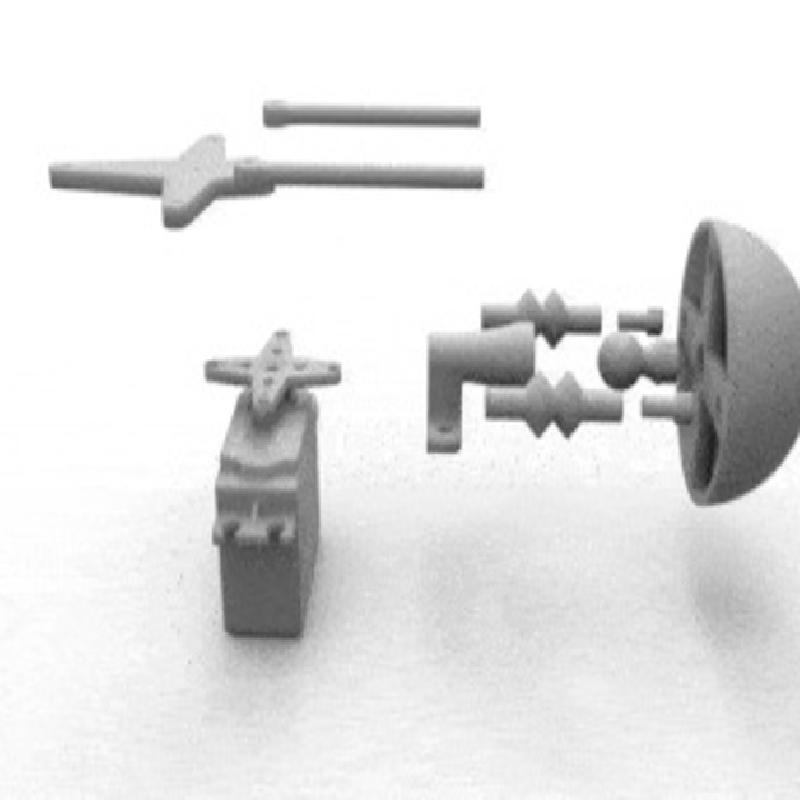

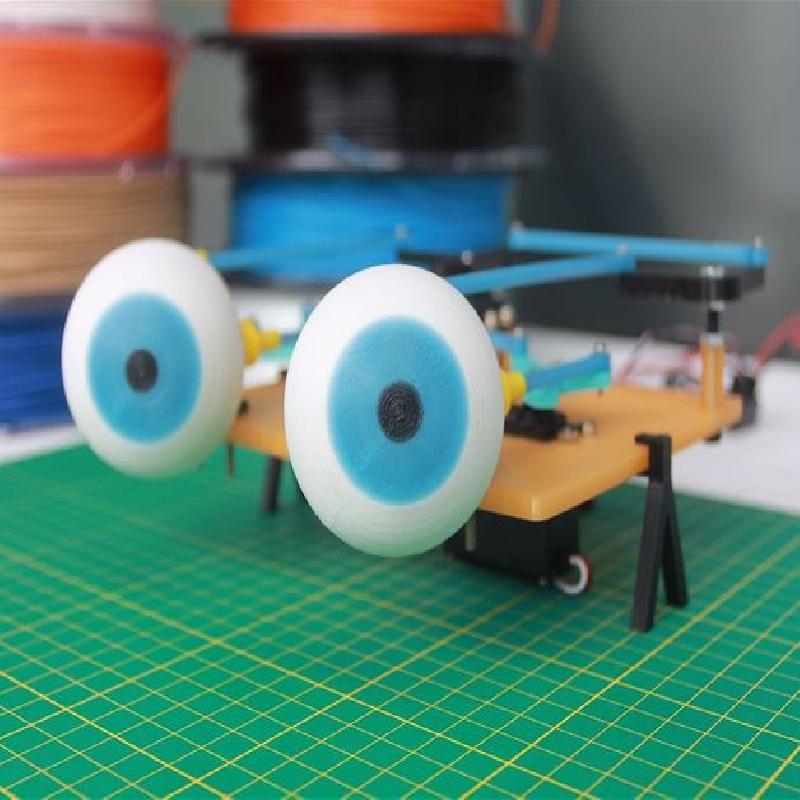

Polymaker's Animatronic Eye Mechanism. Designed for desktop extrusion based 3D printers.

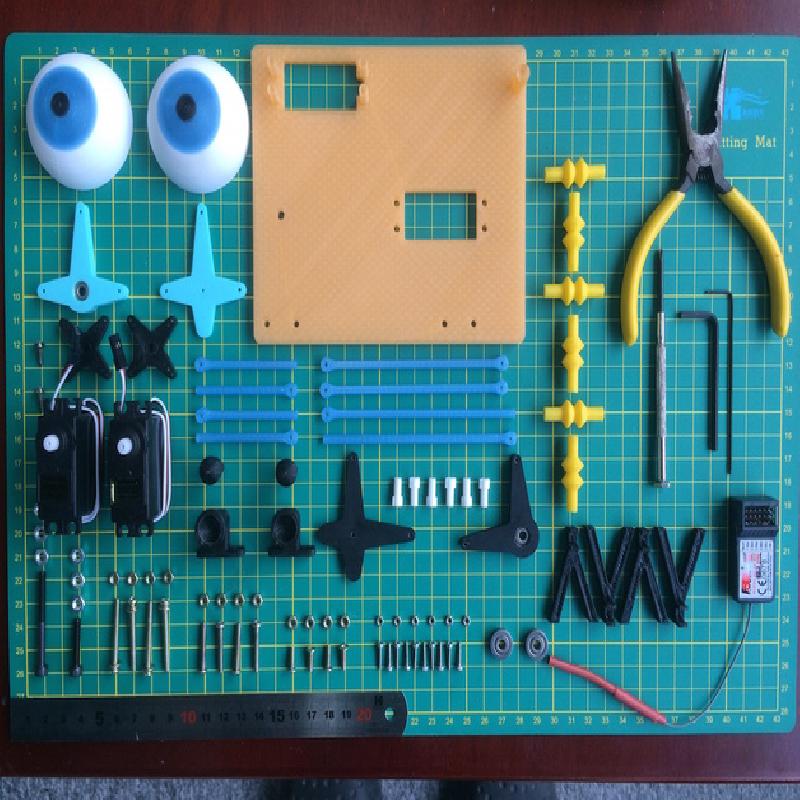

List of Non Printed Parts:
2 x Servo (Futaba S3003)
1 x Transmitter 2.4 GHz
1 x Remote Control 2.4 GHz
1 x 5v DC Battery
6 x M2 Nut
12 x M3 Nut
6 x M4 Nut
10 x M2x10mm
4 x M3x10mm
4 x M3x12mm
4 x M3x30mm
1 x M4x25mm
1 x M4x45mm
2 x 13mmx4mm (Internal Ø 4mm) Bearing

Quantity:

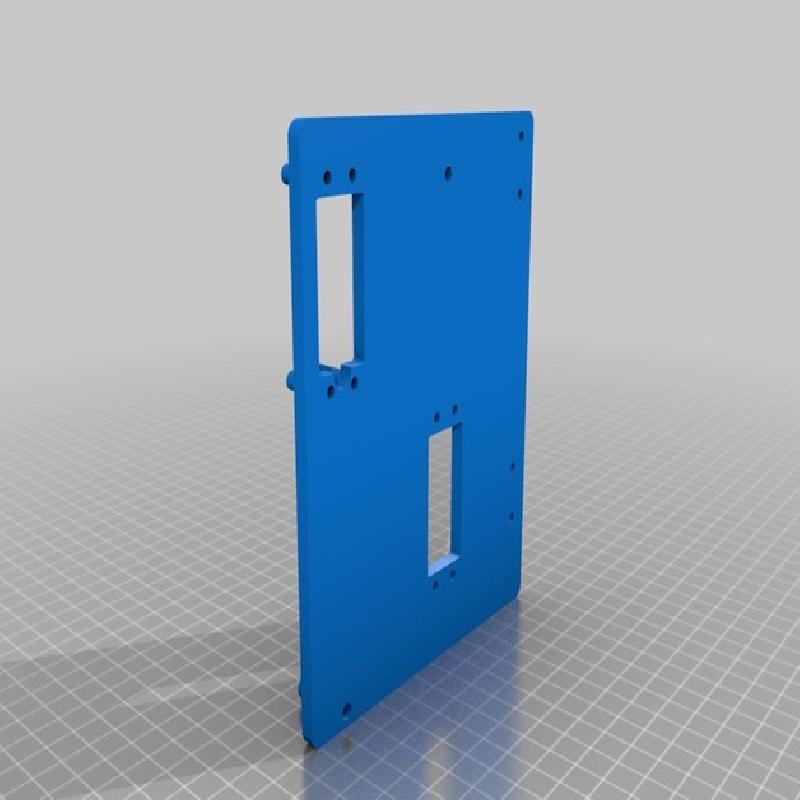

1 x Board.STL (35% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

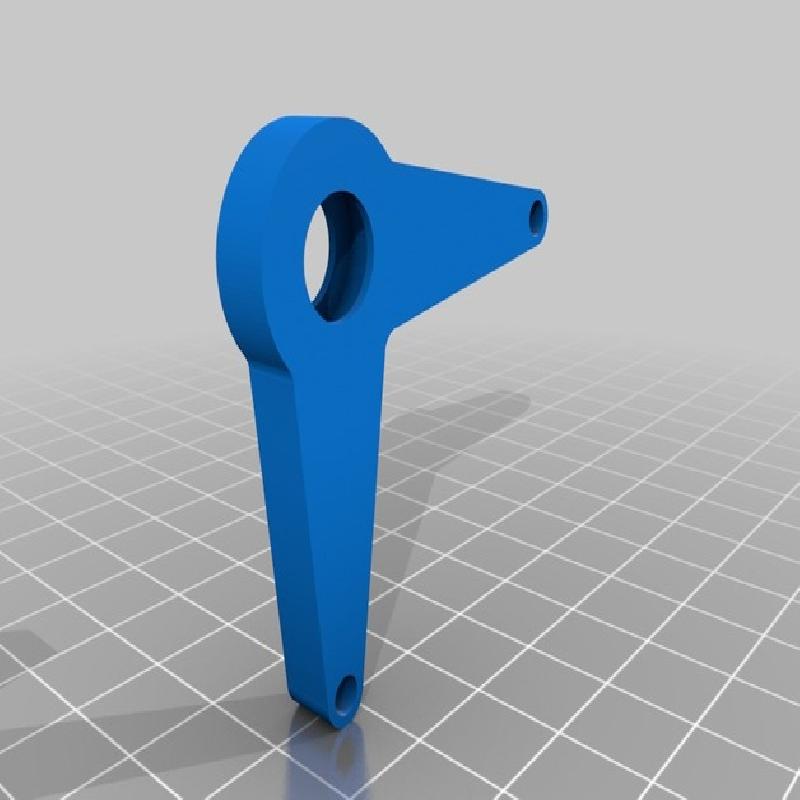

1 x Pivot X.STL (25% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

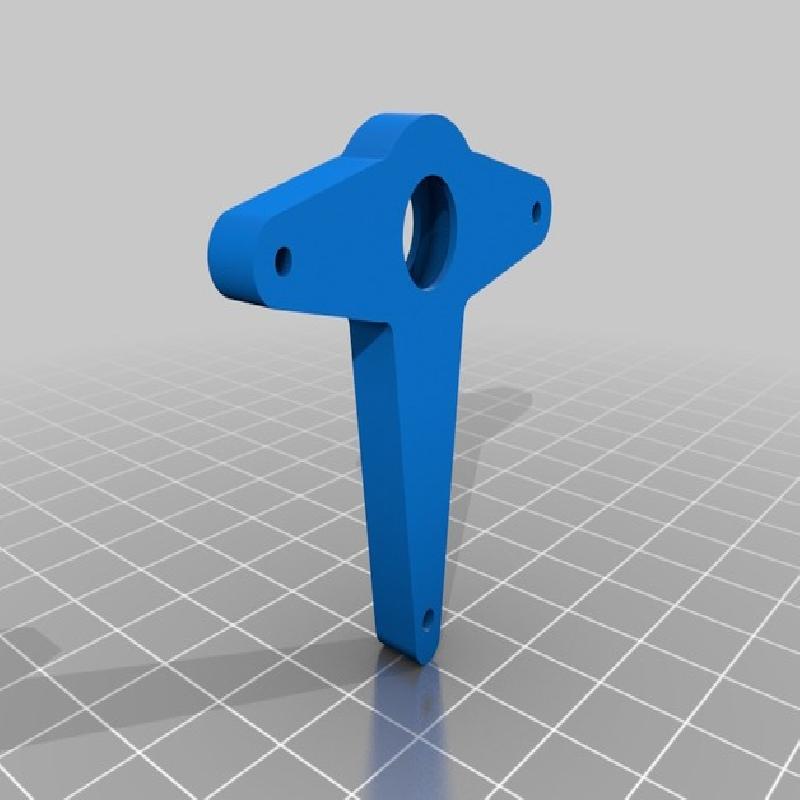

1 x Pivot Y.STL (25% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

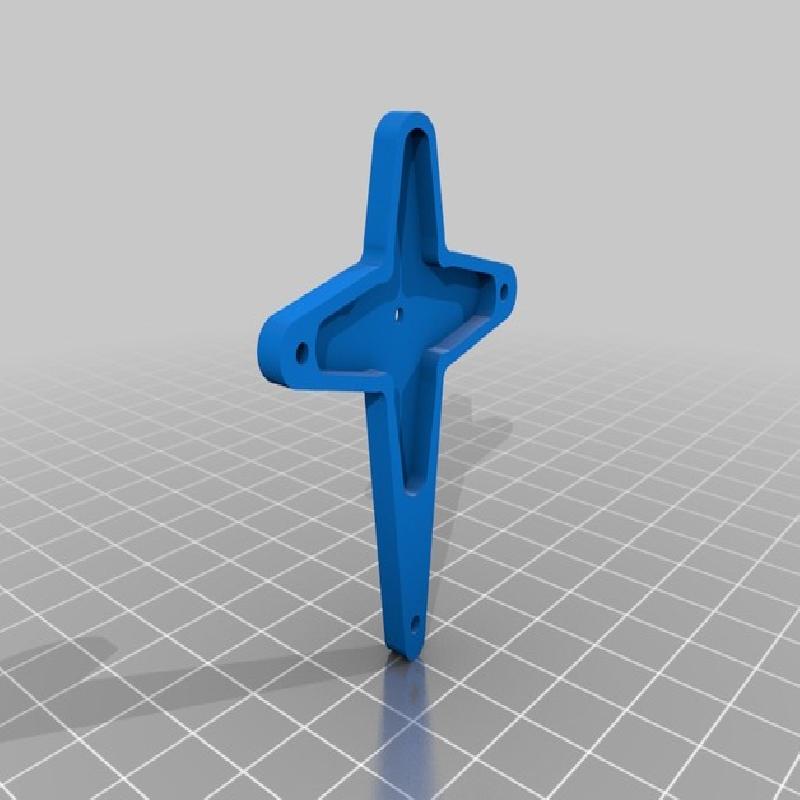

1 x Servo Arm Extension X.STL (25% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

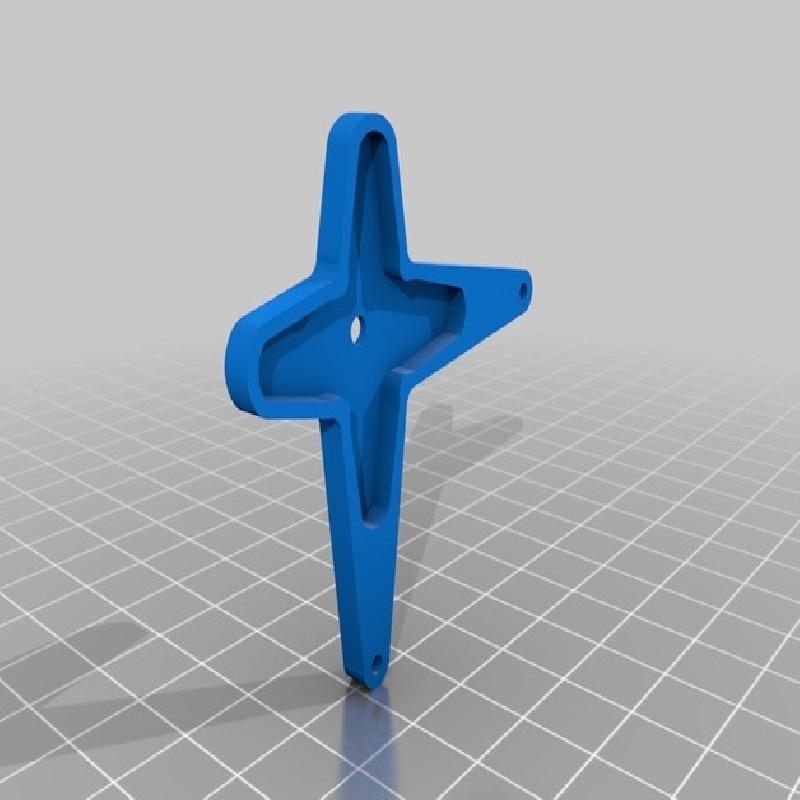

1 x Servo Arm Extension Y.STL (25% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

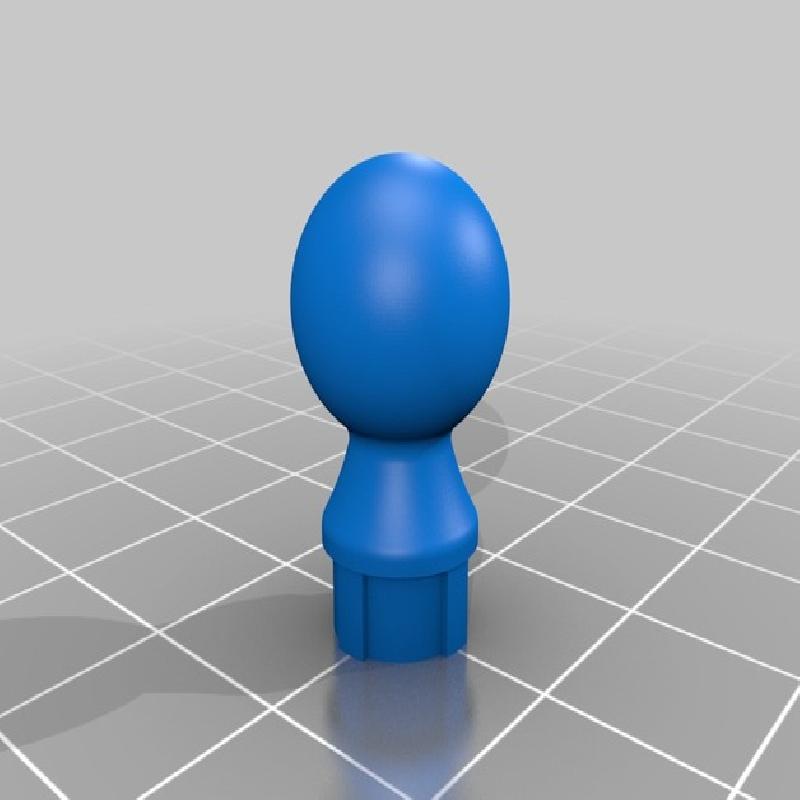

2 x Ball 11.9.STL (20% Infill, 0.1mm Resolution, 2 Shells, PolyMax)

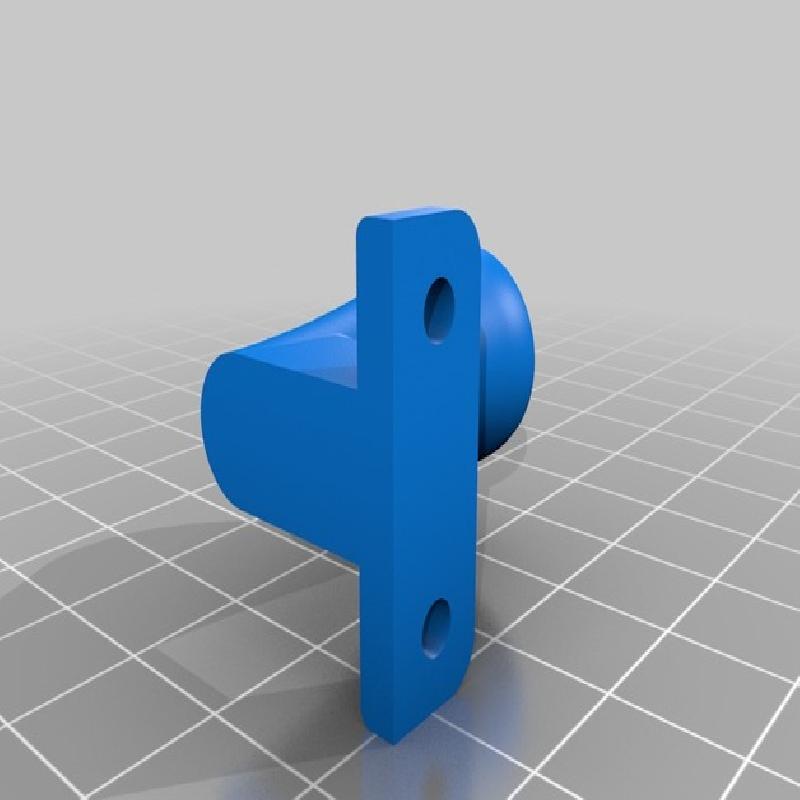

2 x Socket.STL (20% Infill, 0.1mm Resolution, 1 Shell, PolyMax)
6 x Coupling.STL (0% Infill, 0.2mm Resolution, 2 Shells, PolyFlex)

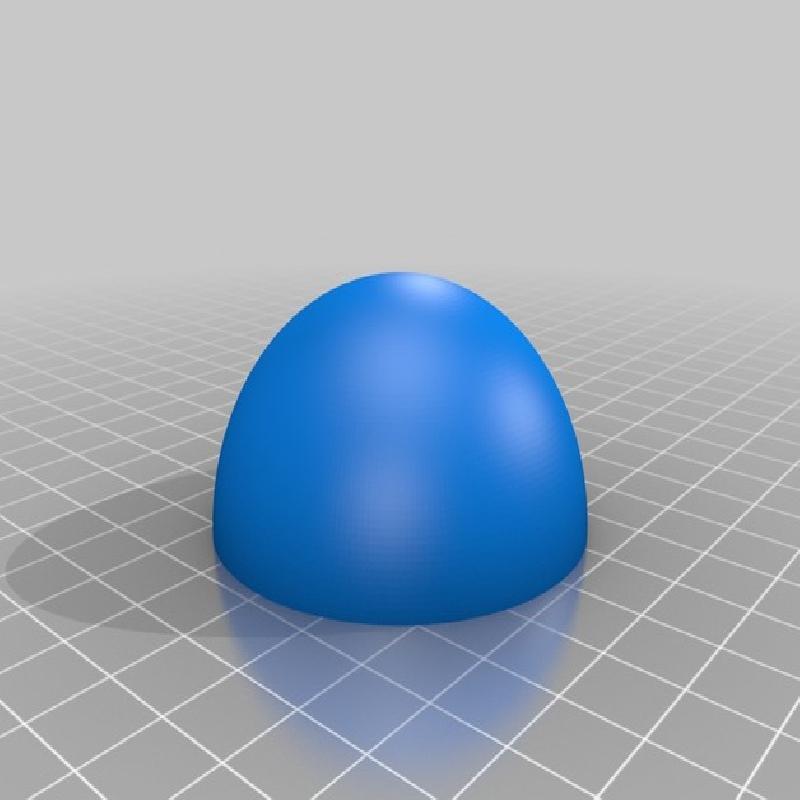

2 x Eyeball.STL (15% Infill, 0.1mm Resolution, 2 Shells, PolyMax, PolyPlus)

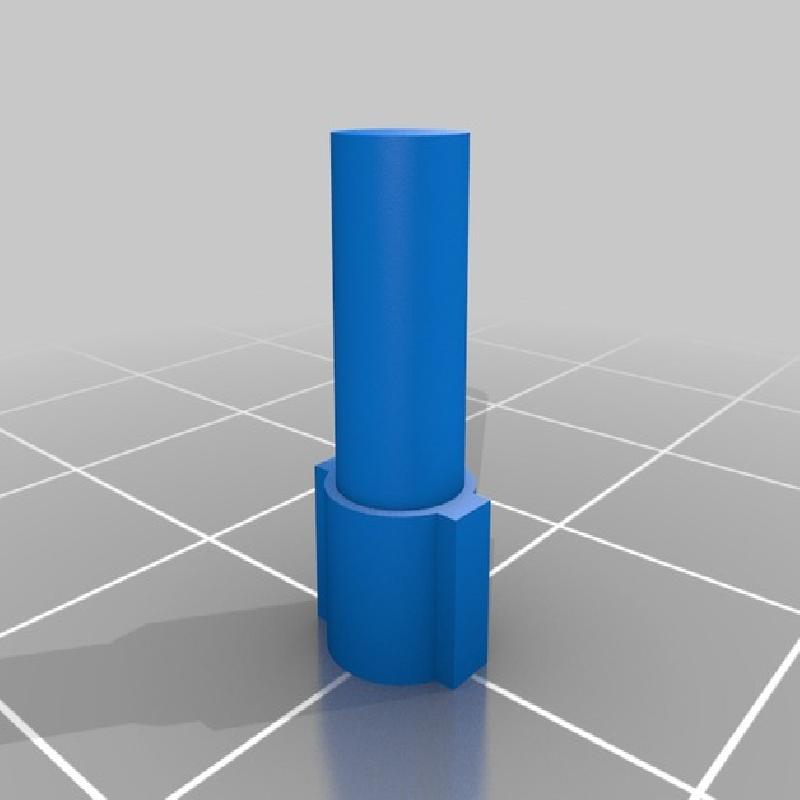

6 x Pin.STL (100% Infill, 0.1mm Resolution, 2 Shells, PolyMax)

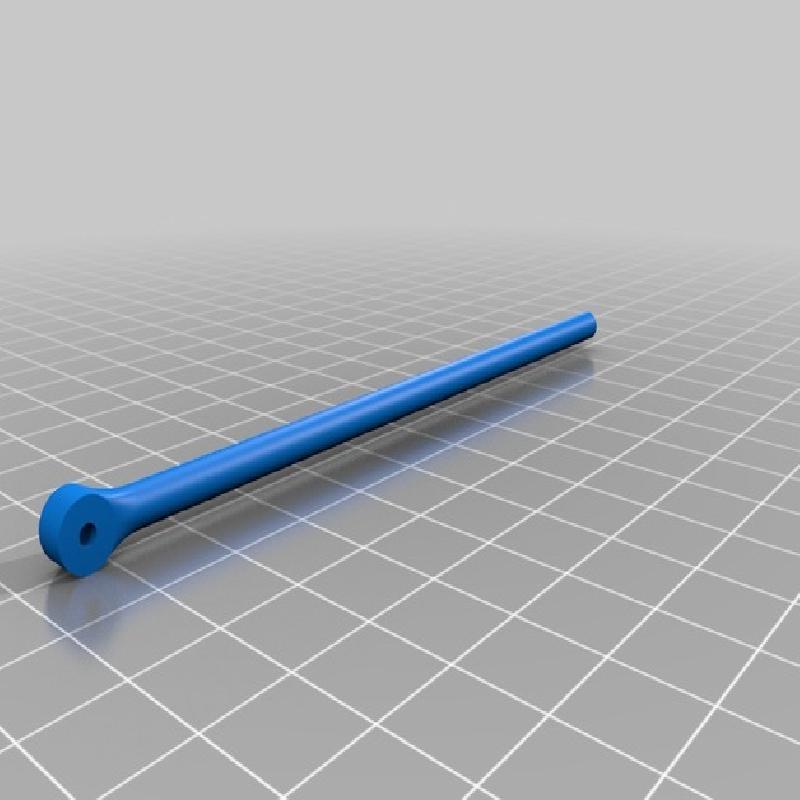

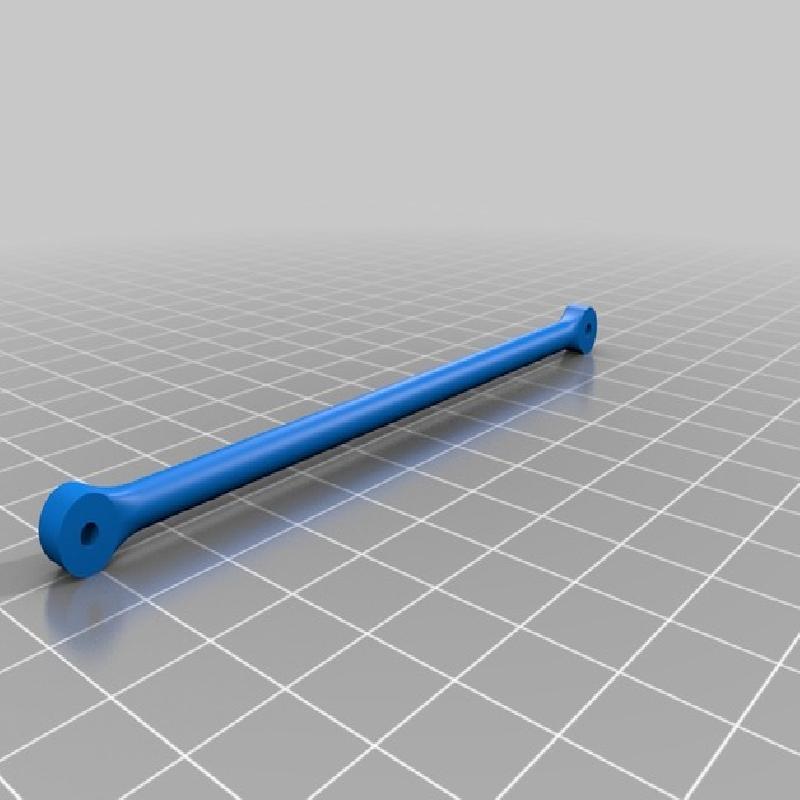

4 x Conrod X.STL (50% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)
2 x Conrod XY.STL (50% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)
2 x Conrod Y.STL (50% Infill, 0.2mm Resolution, 2 Shells, PolyPlus)

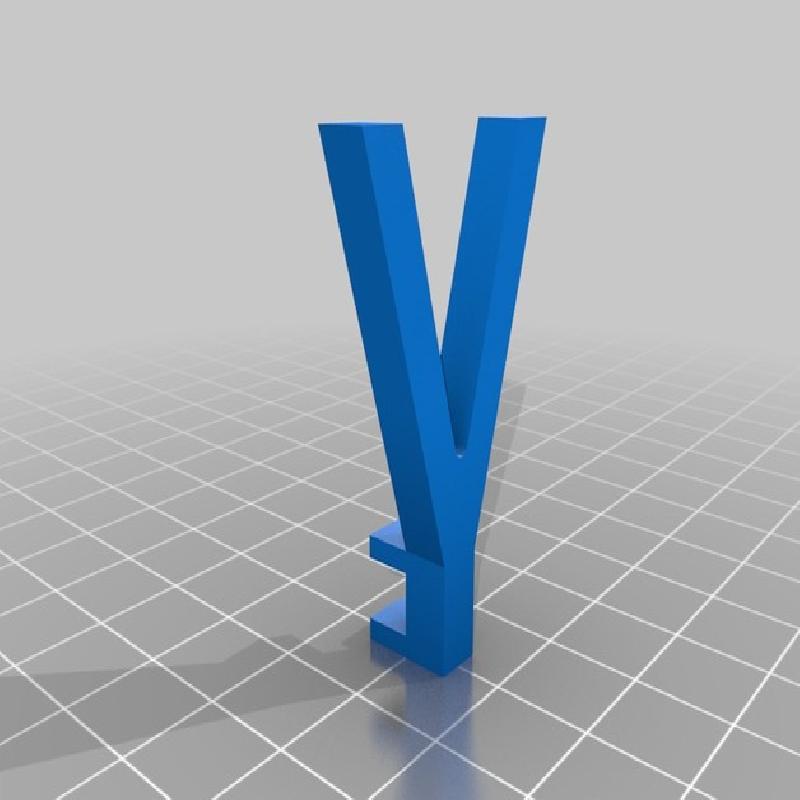

4 x Leg.STL (25% Infill, 0.2mm Resolution, 2 Shells, PolyMax)
