Update 26 April 2016

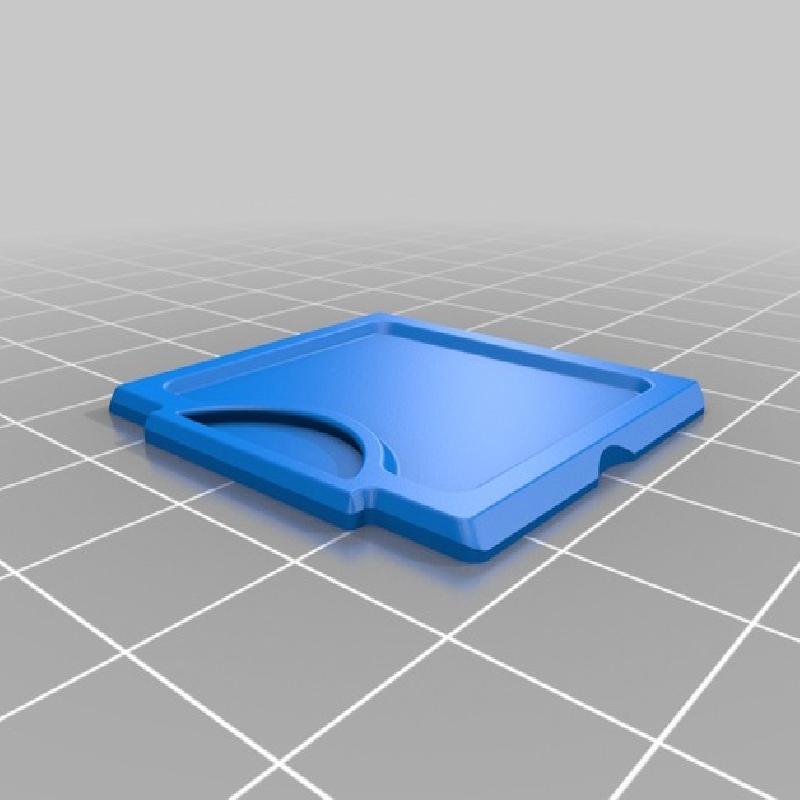

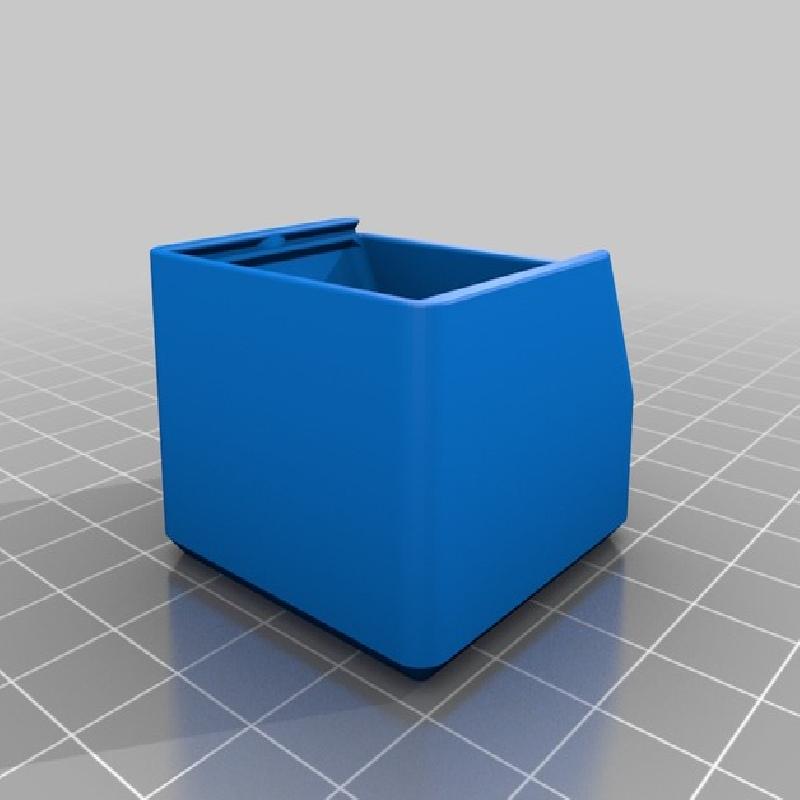

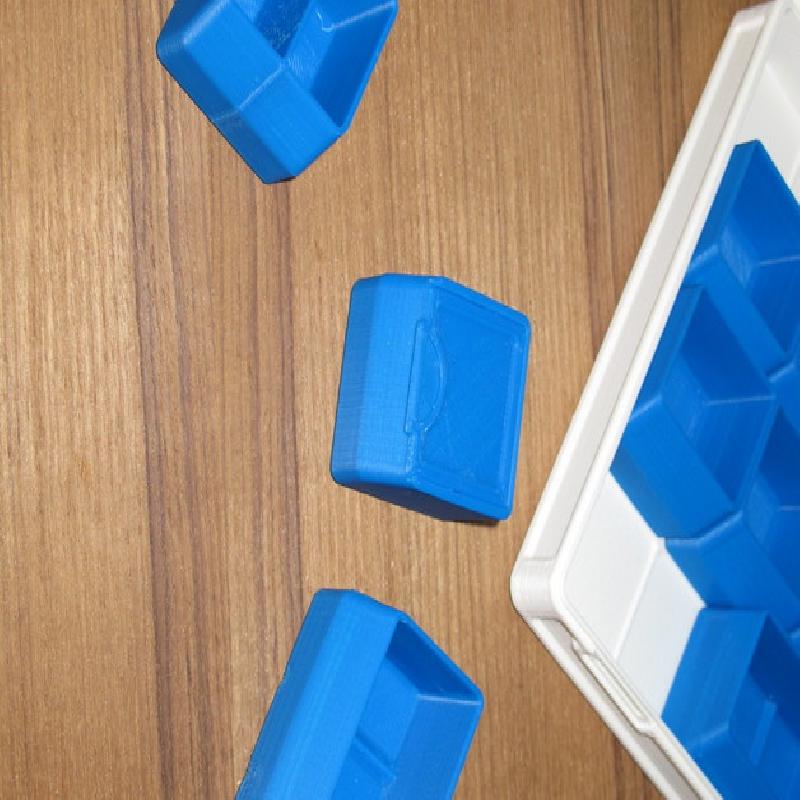

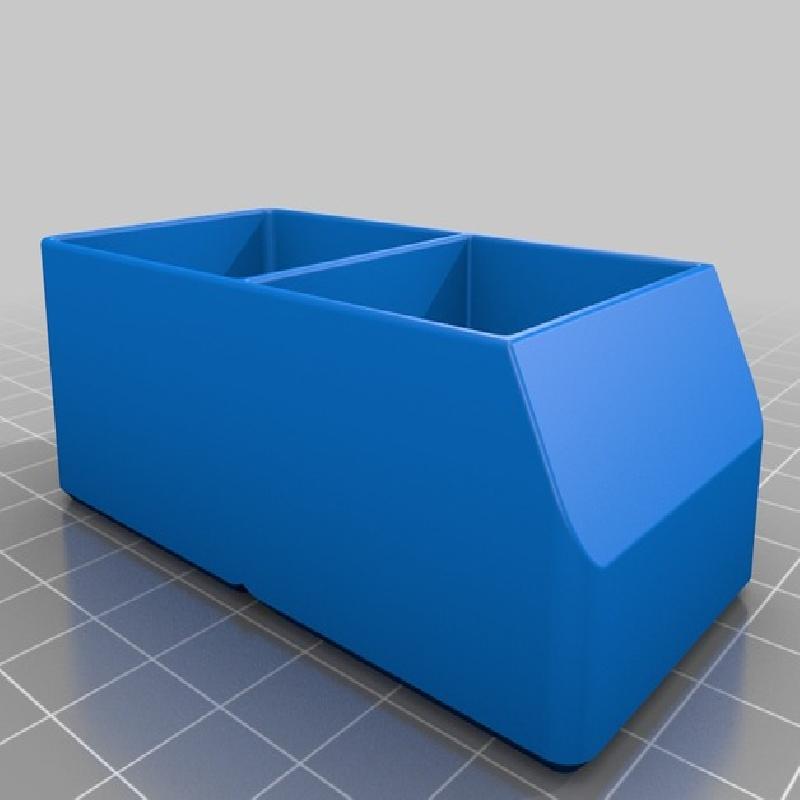

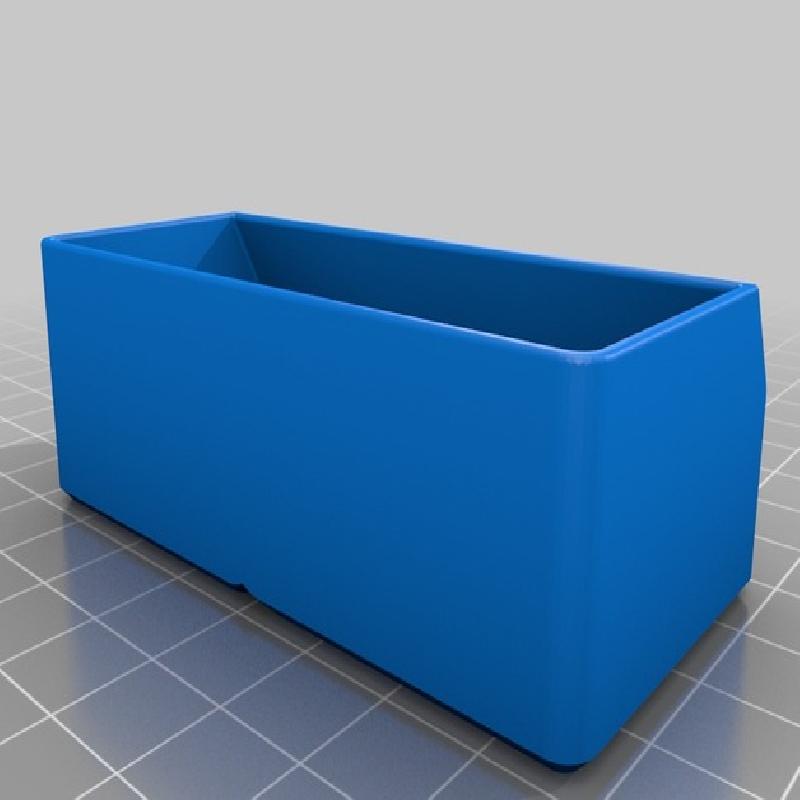

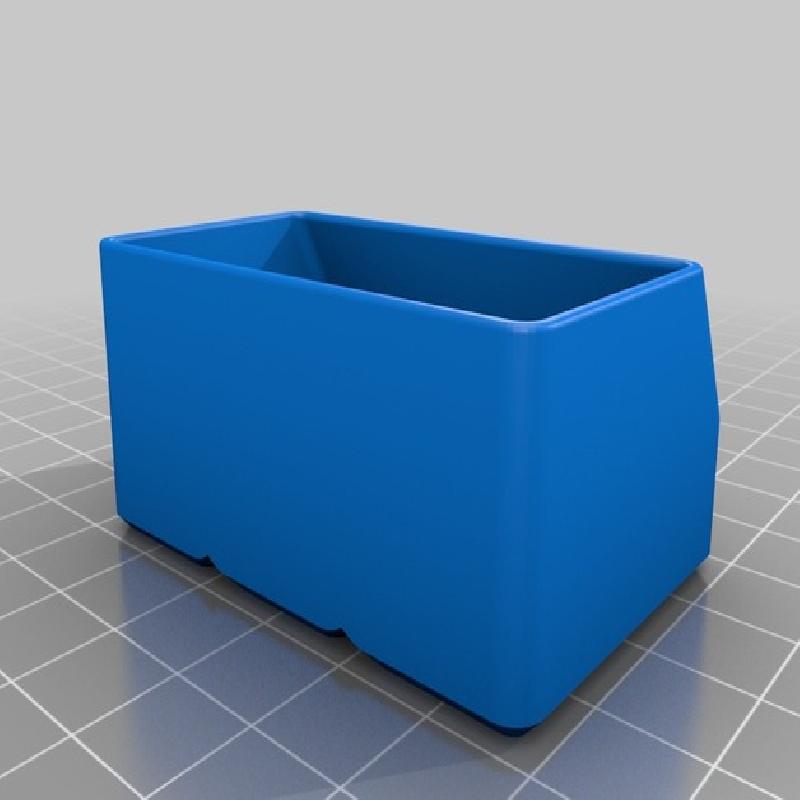

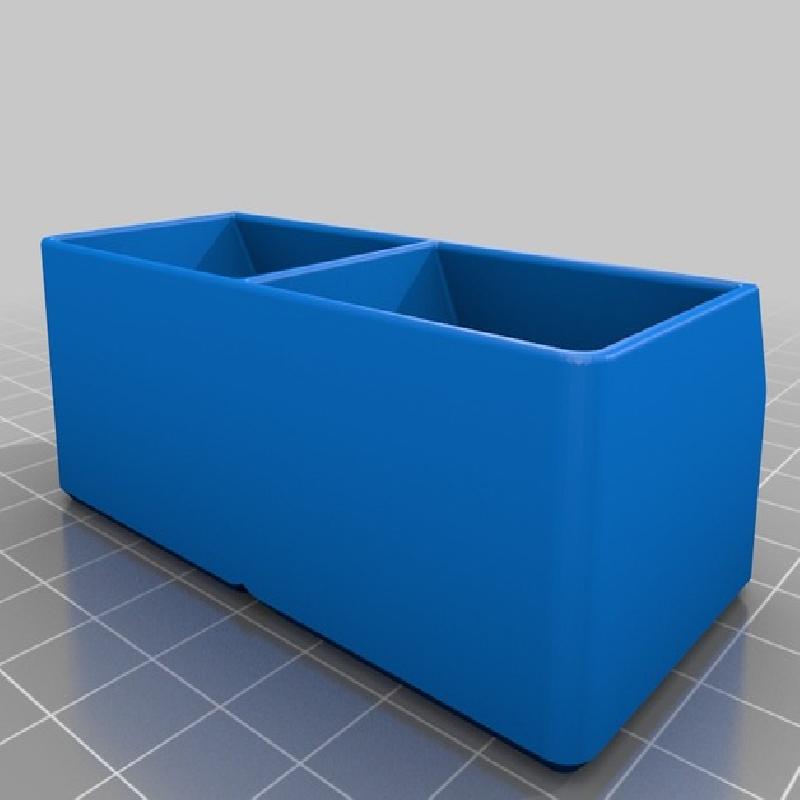

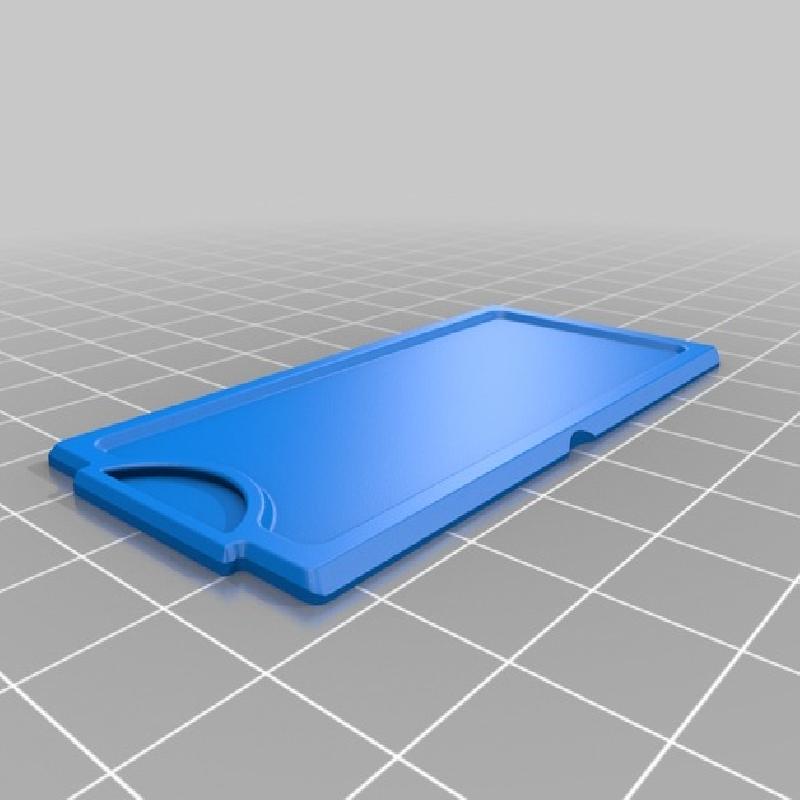

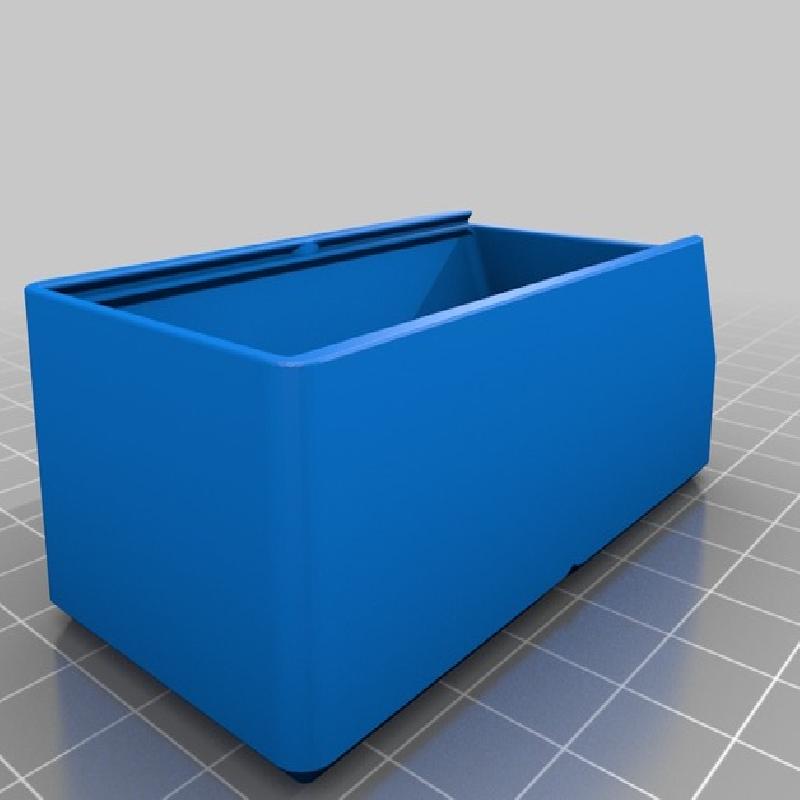

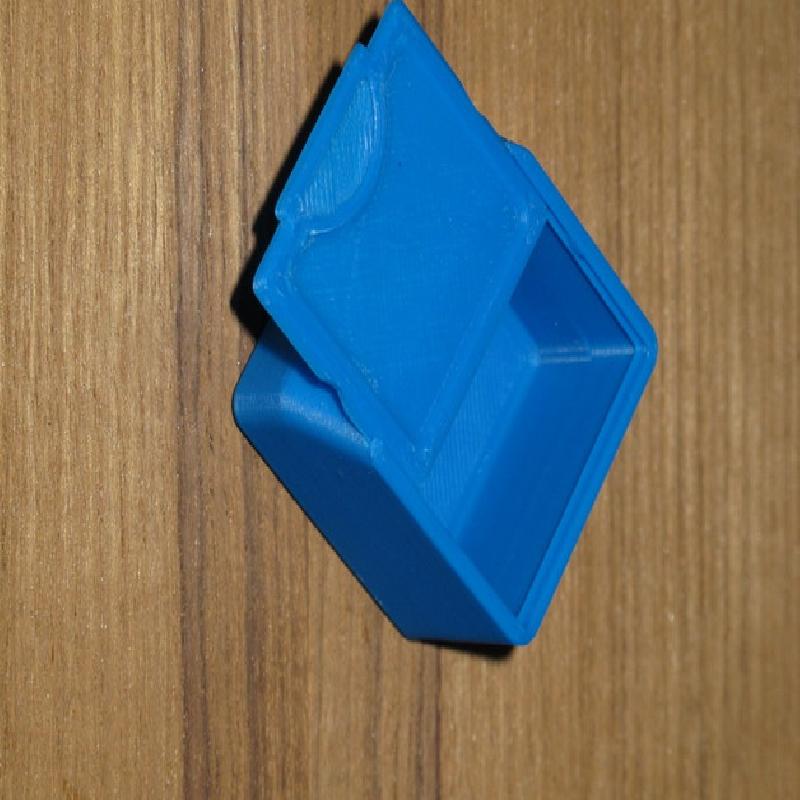

Added six new bins, 38x38_Div is divided in two compartments, 38x57 are one and a half divisions wide/long, bins 38x38 and 38x76 "Slide Top" have a sliding cover to keep very small parts from falling.

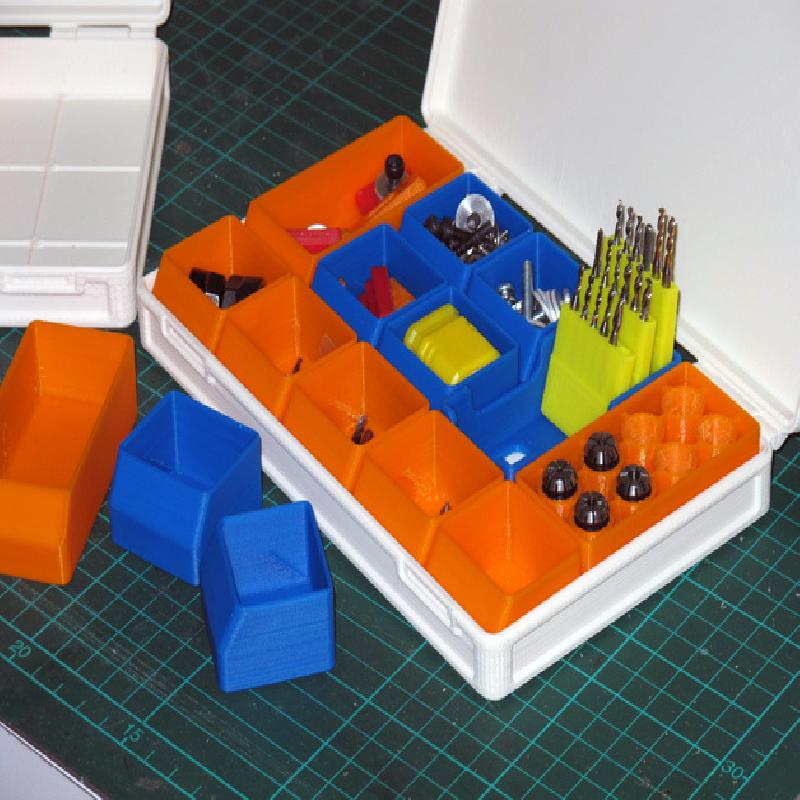

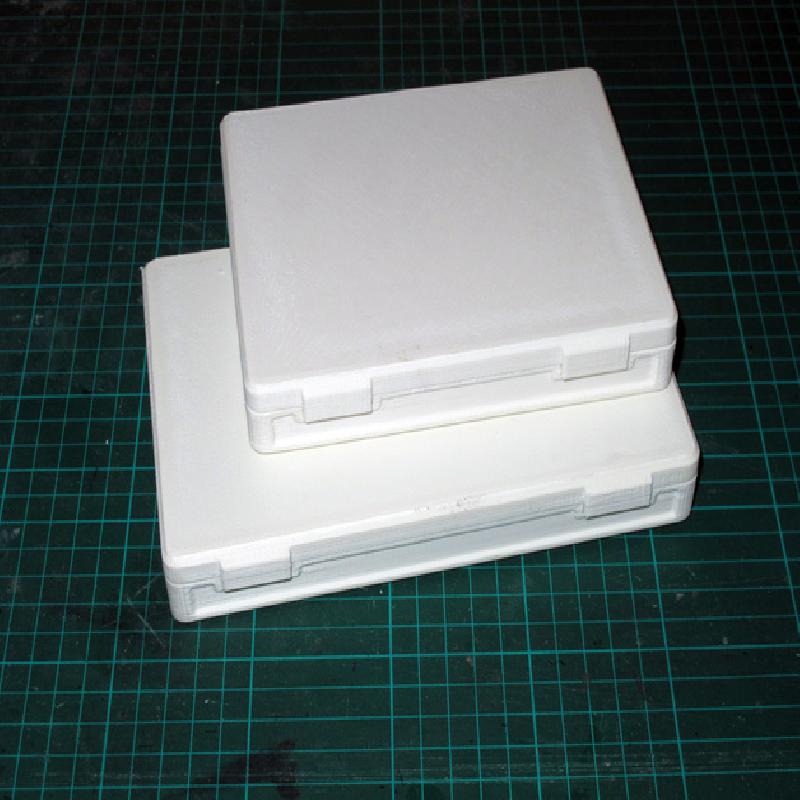

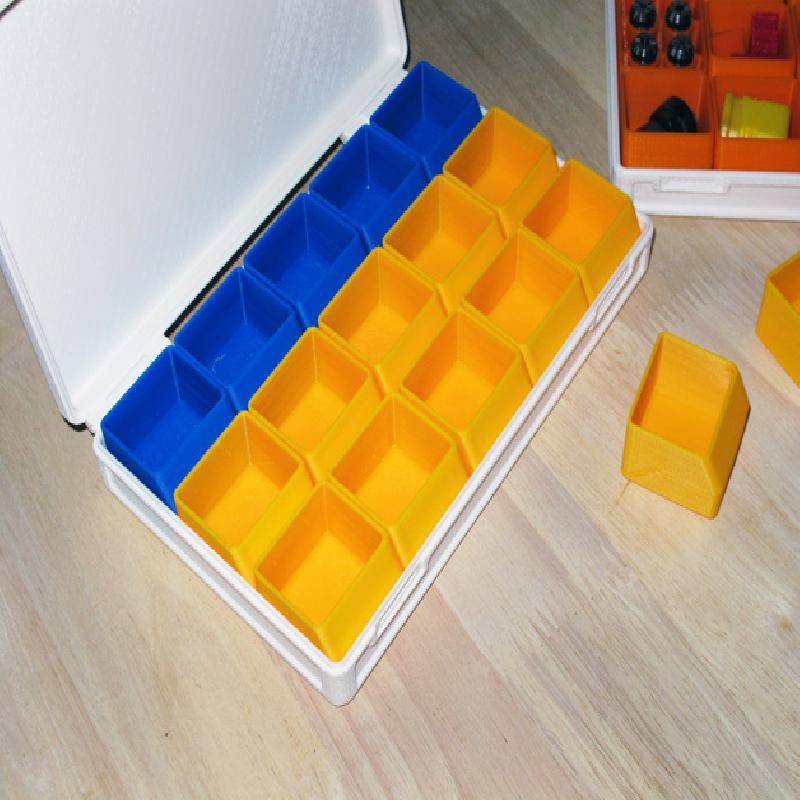

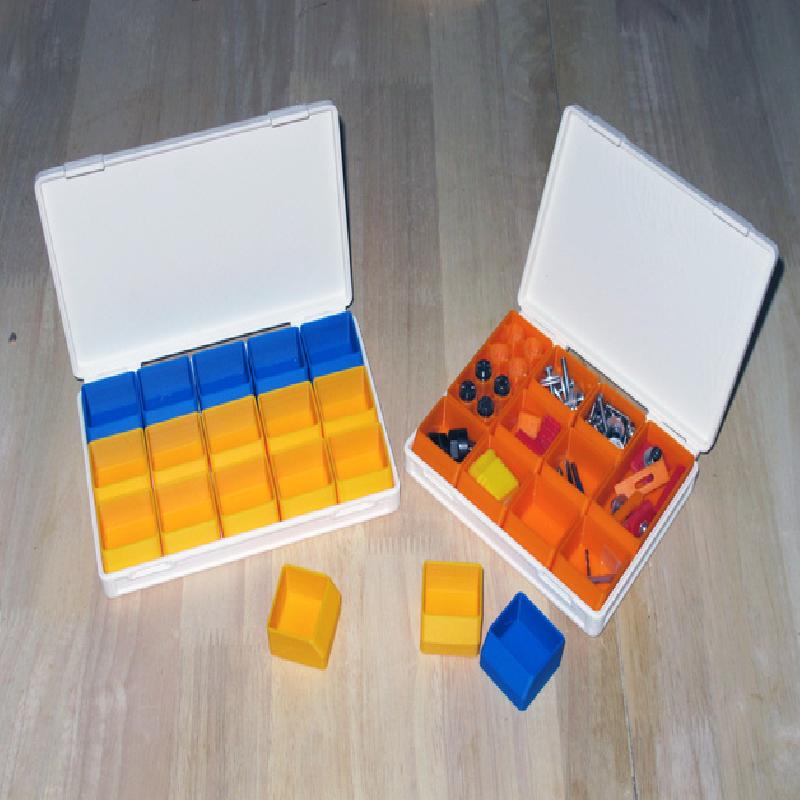

Originally designed as a screw box, I decided it could have many other uses by making different bin and size combinations. I plan to make a stacking system later on plus other bin designs and box variations.

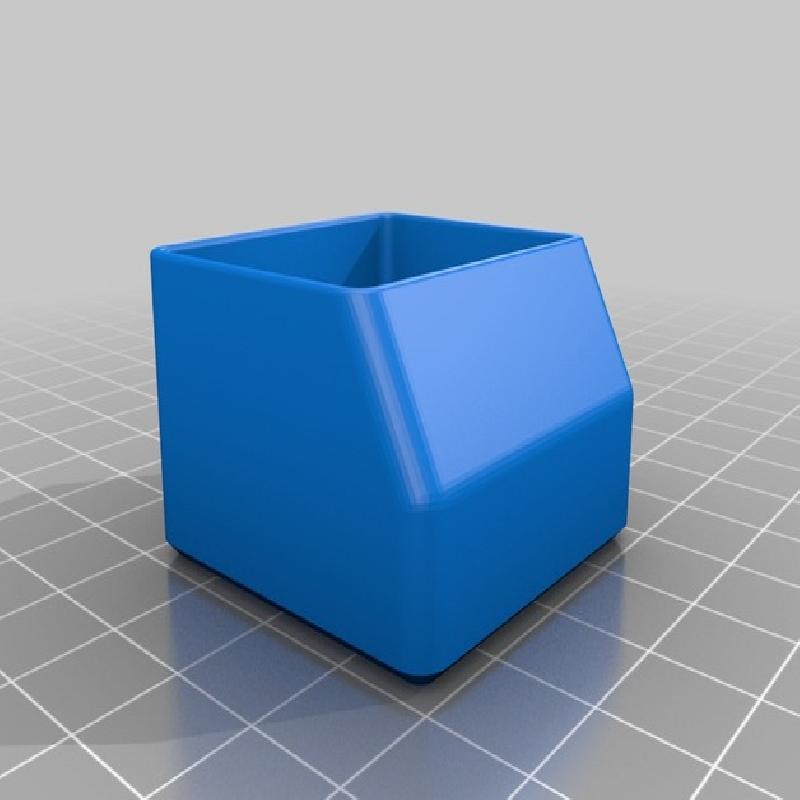

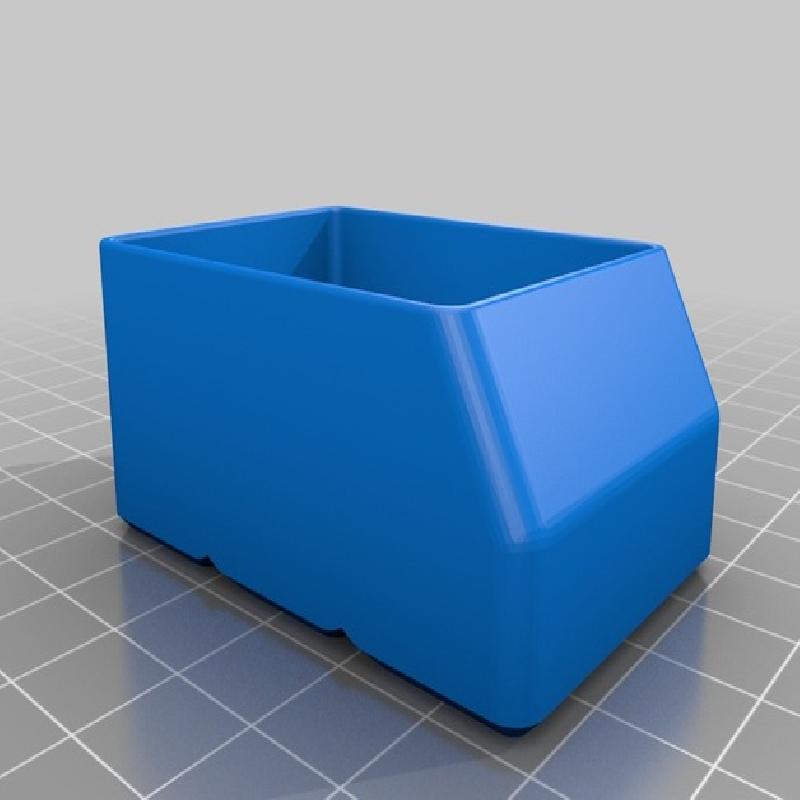

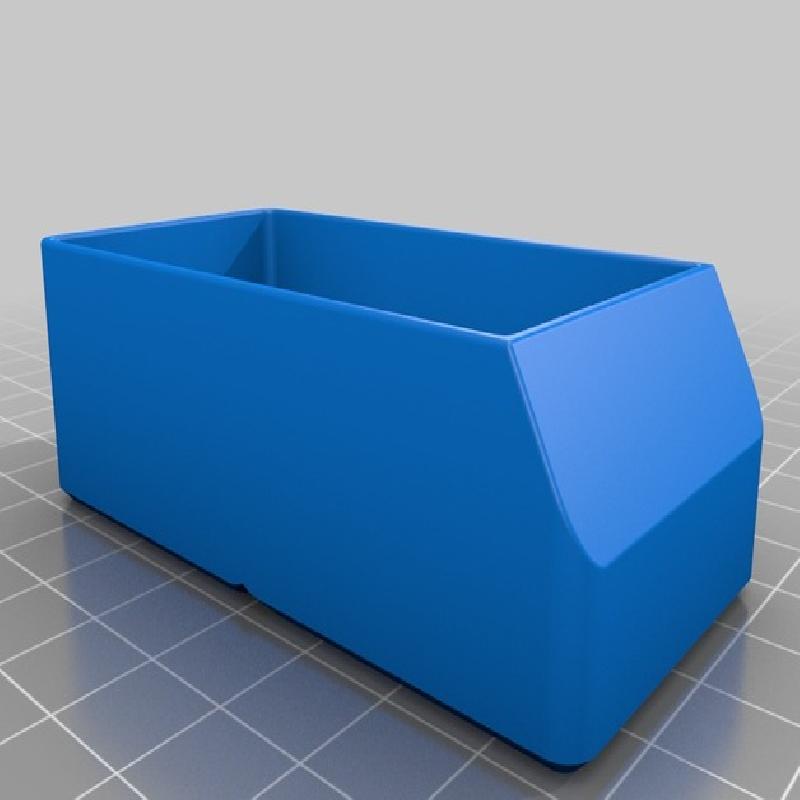

The chamfered top of the bins makes it easy to pick them out and also can be used to put a label on it.

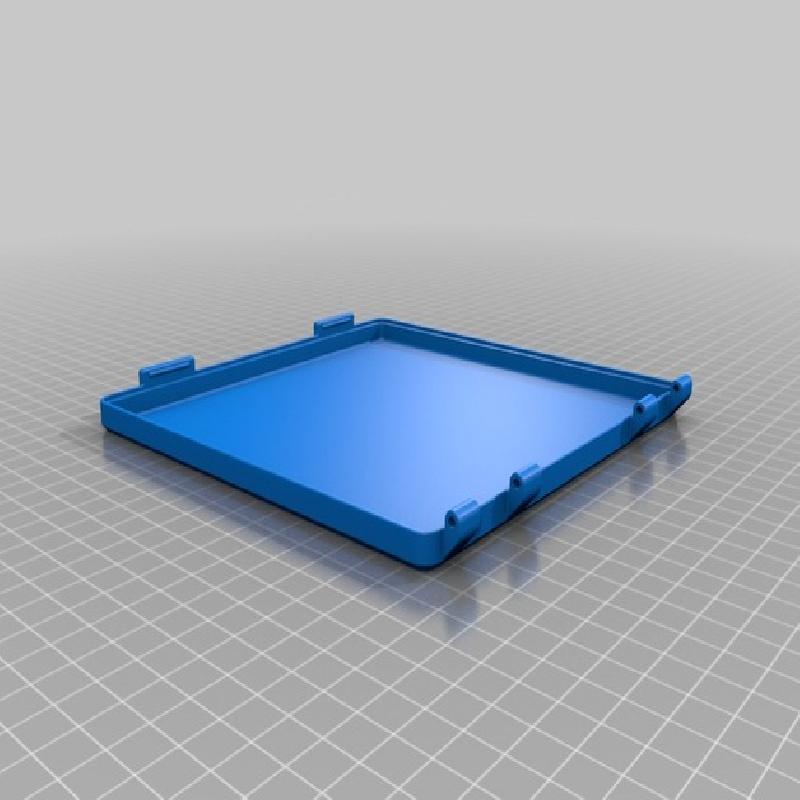

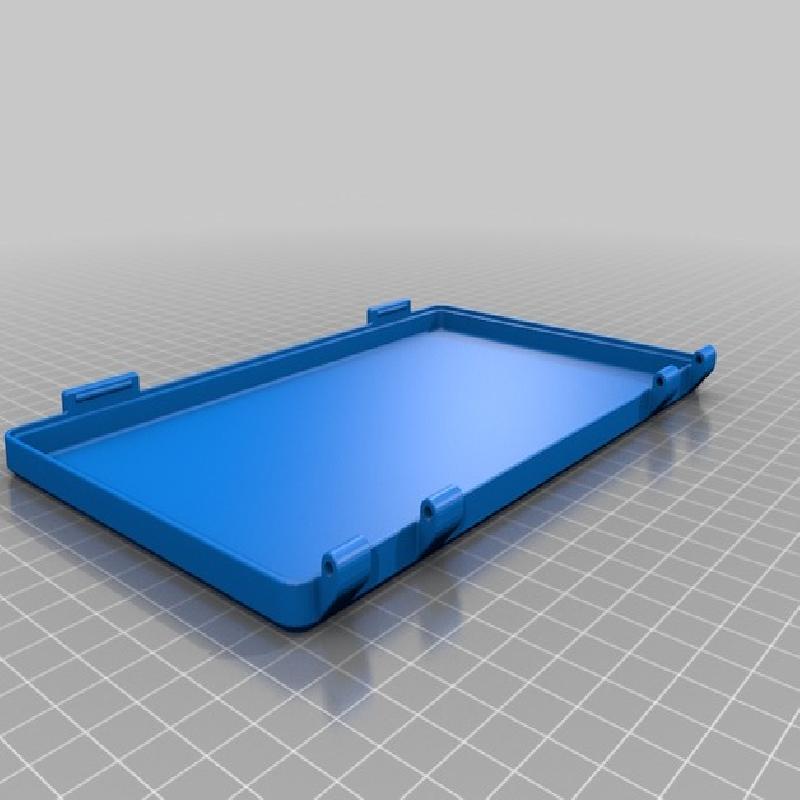

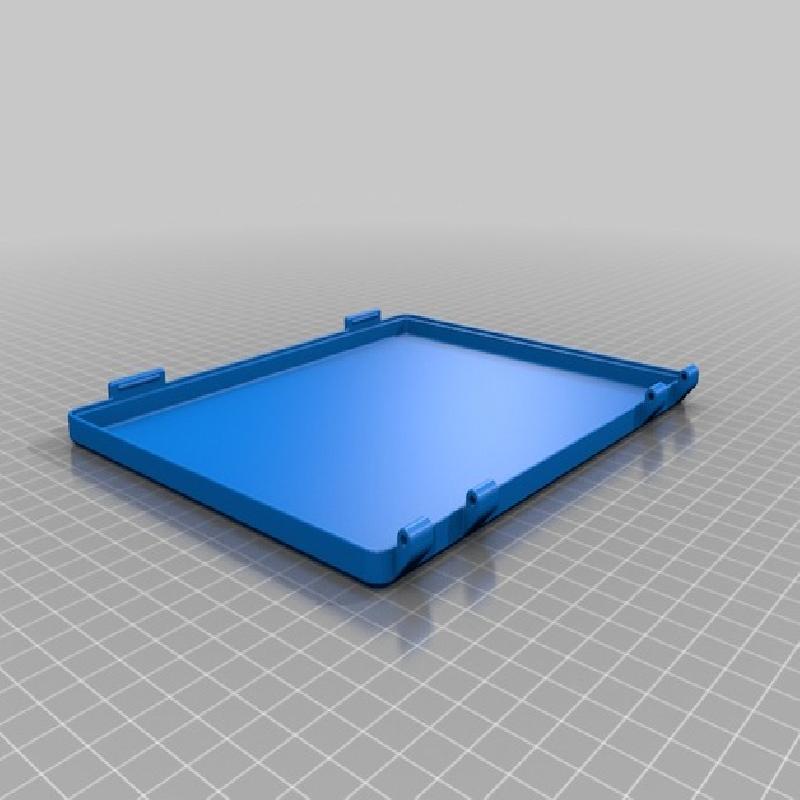

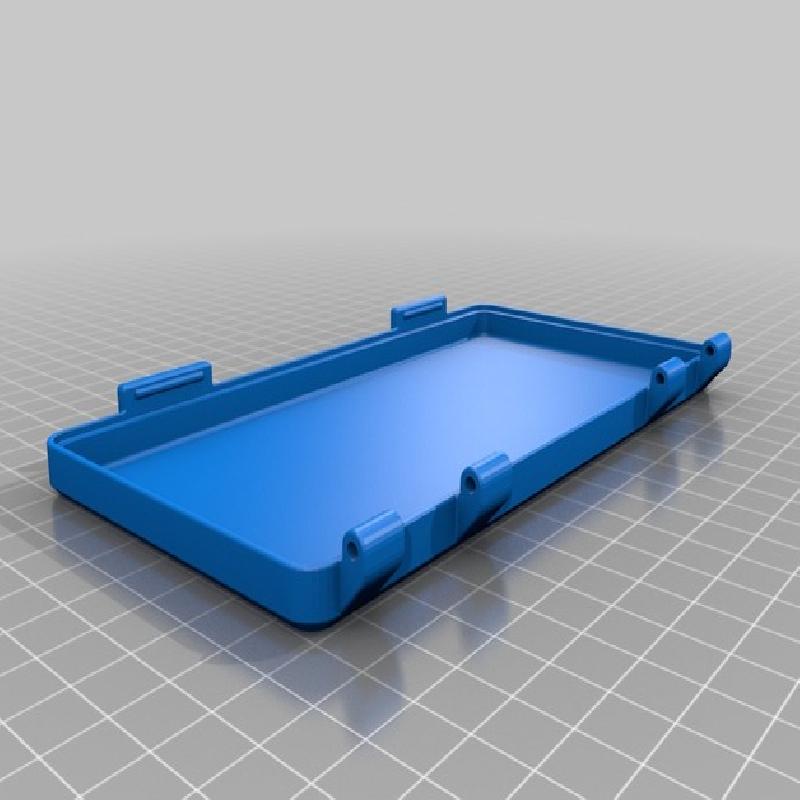

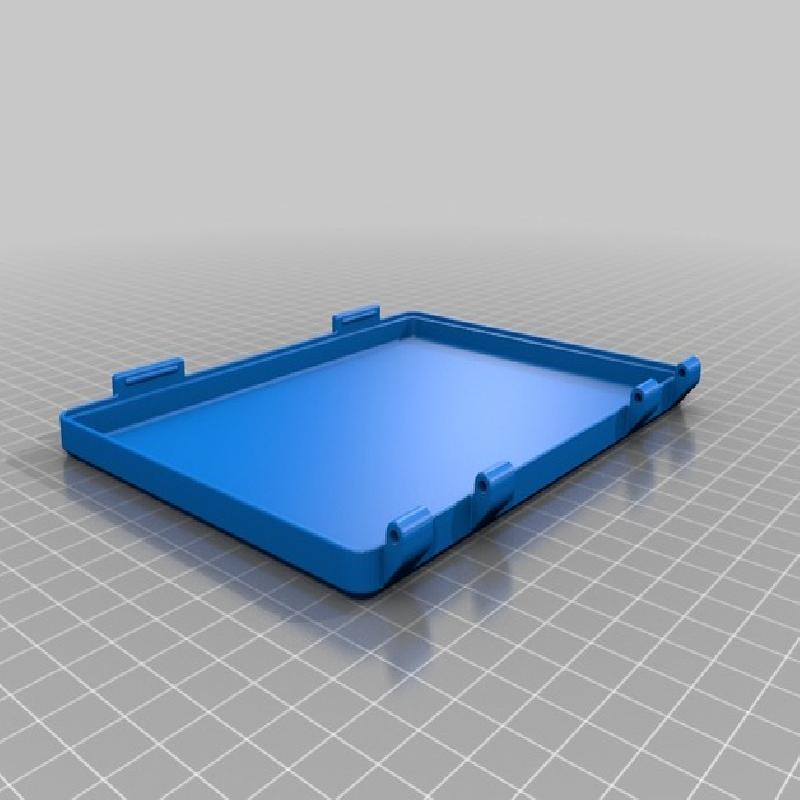

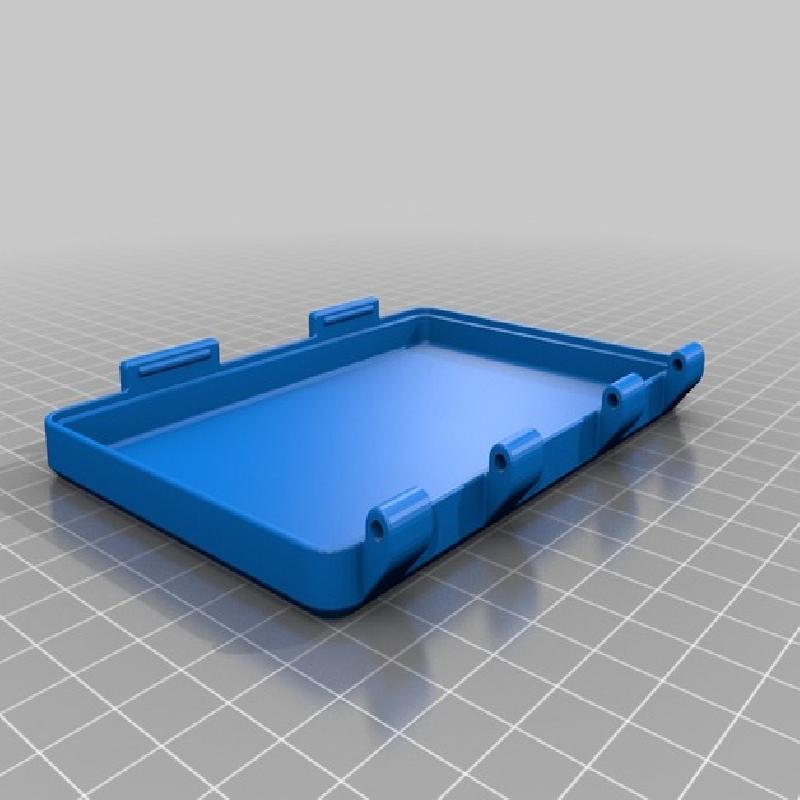

The only assembly needed is to insert a length of 1.75mm filament in the hinge holes to join the top and bottom parts.

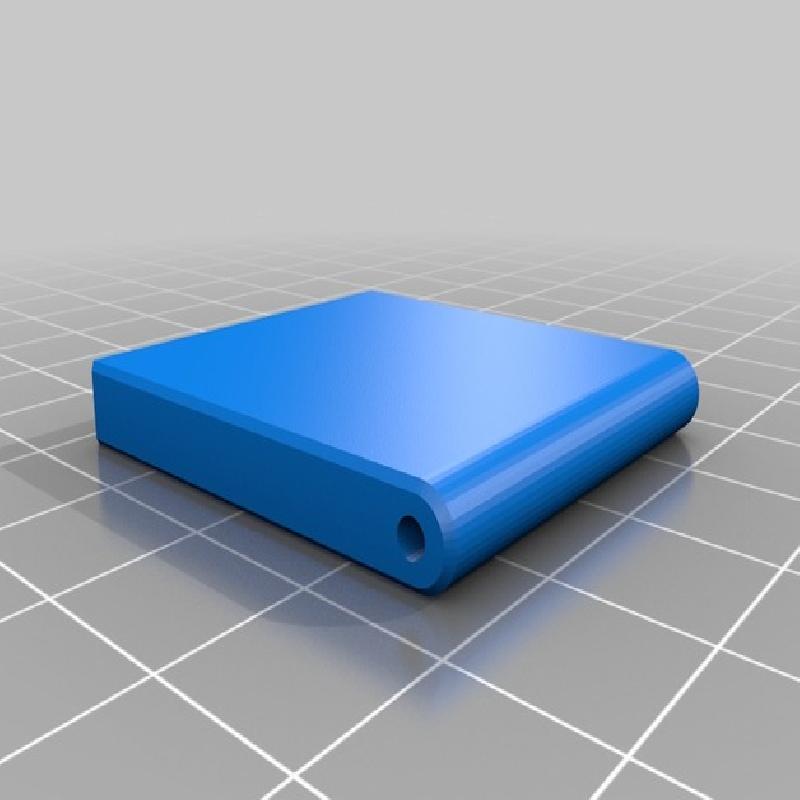

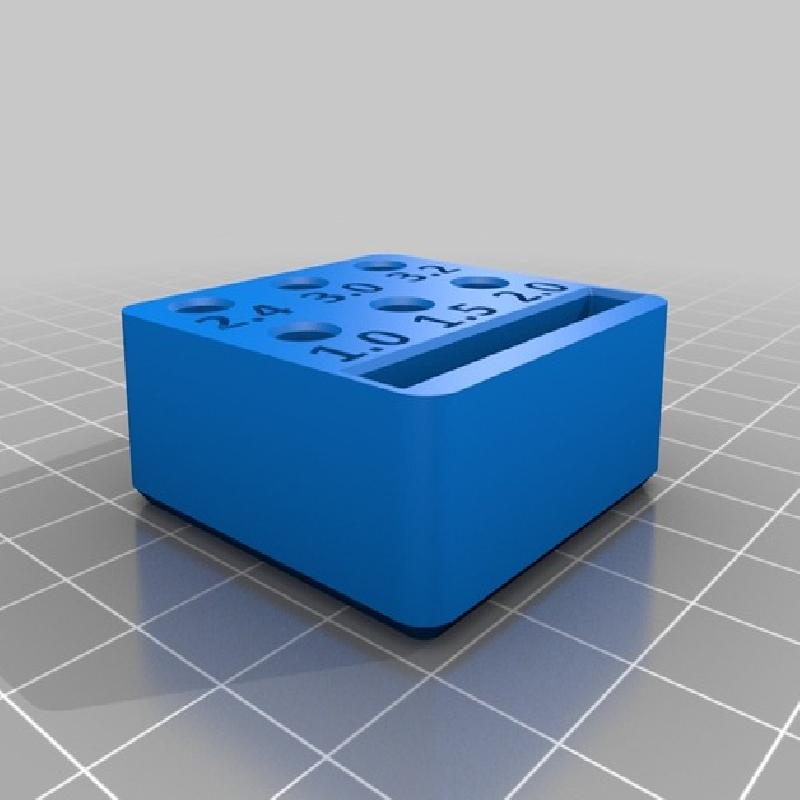

The drill bit index works for 3.17mm drill bits, also assembled by using filament as hinge pins.
I will probably add more bin designs later on, if you have any suggestions let me know.
Rafts: No
Supports: No
Resolution: 0.2 to 0.3
Notes:
0.4mm extrusion width works best for the bins, the walls should be at least 3 perimeters thick.

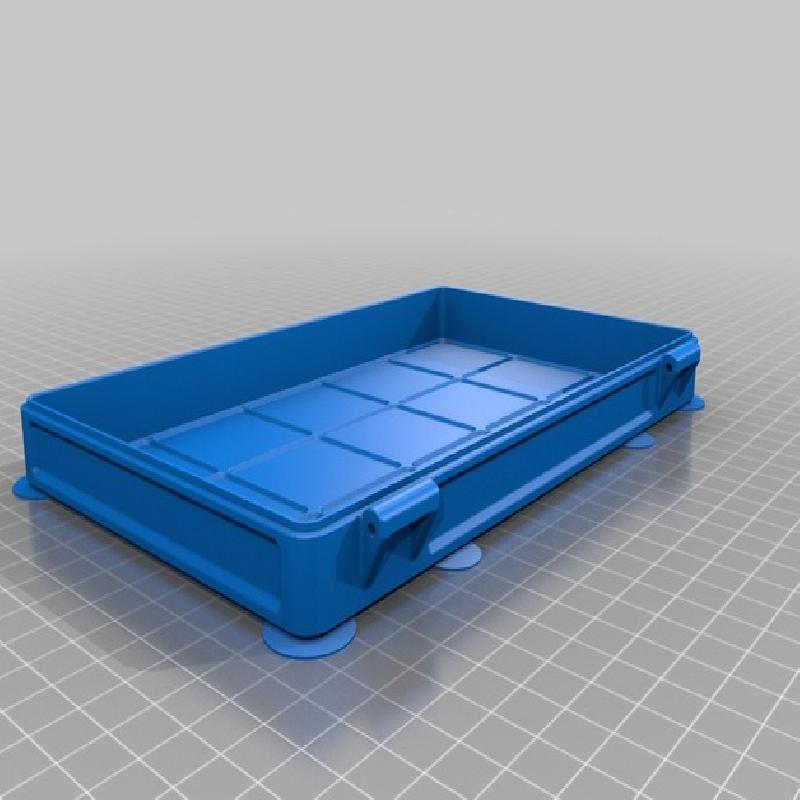

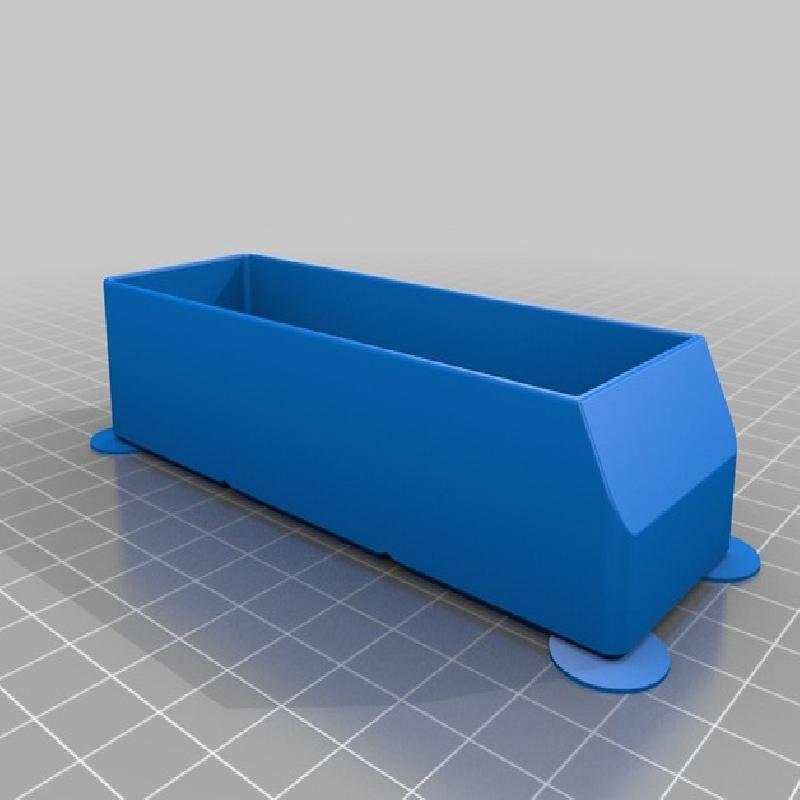

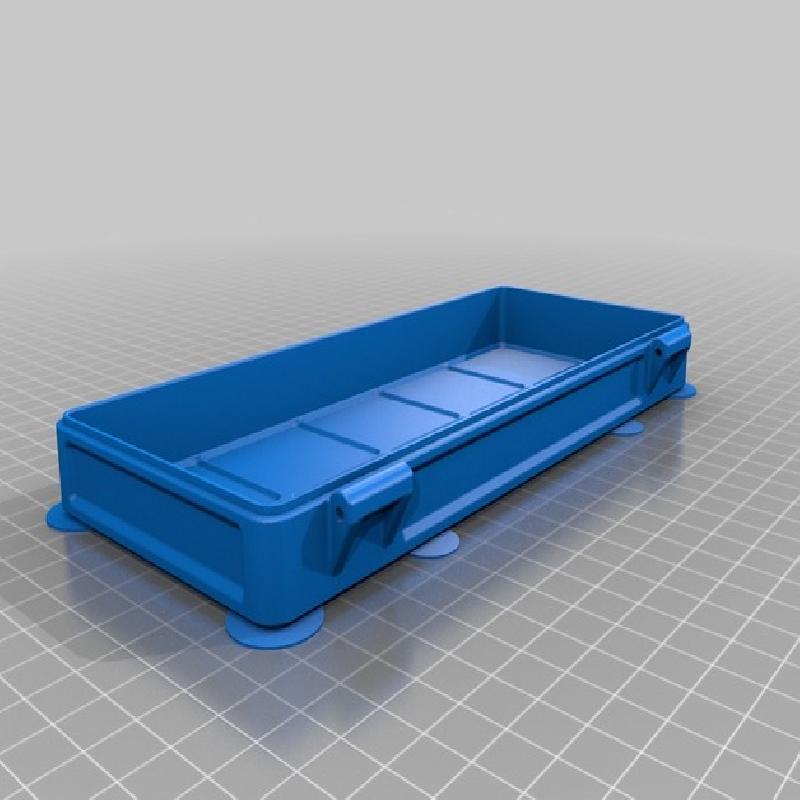

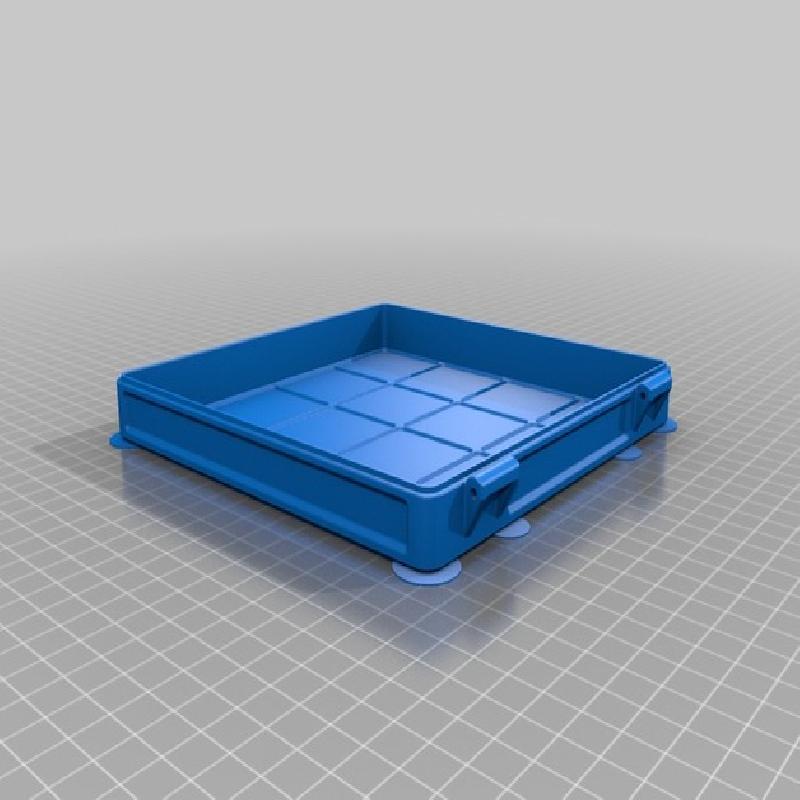

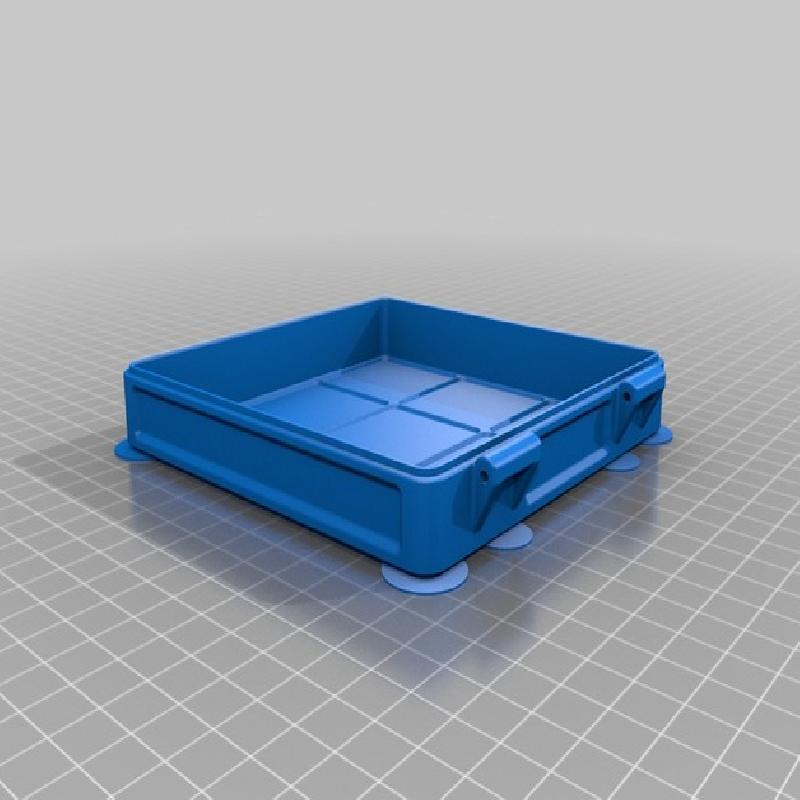

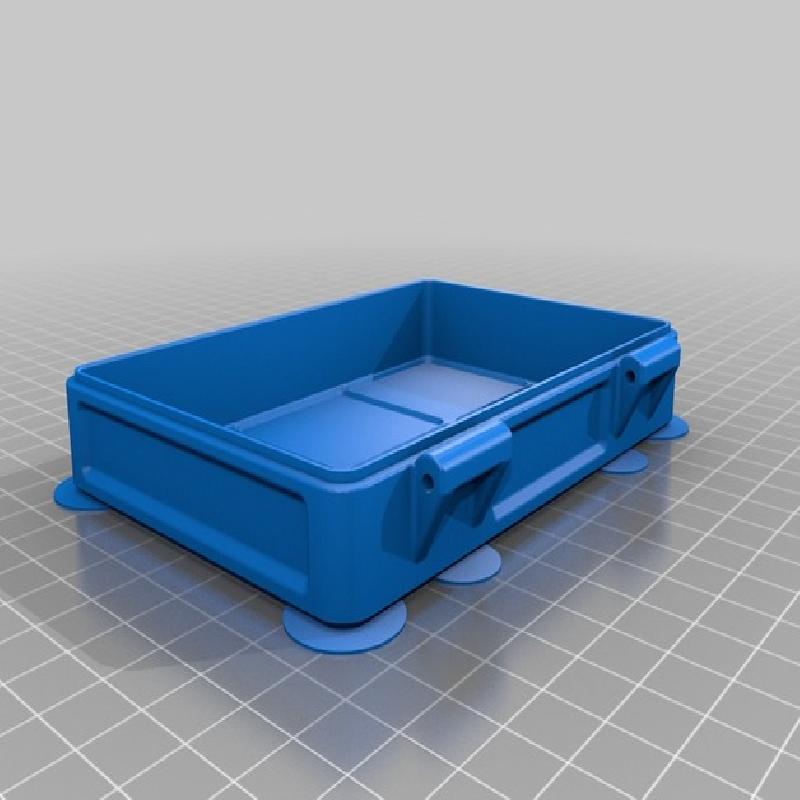

You'll need to remove the print pads at the base of the box bottom, some of the larger bins also have print pads that need to be removed.
