by FMWP
The Geman SdKfz 223 was an armoured car with similar features to the Sd. Kfz. 221, but with the addition of a frame antenna and a 30-watt FuG 10 medium-range radio set. Later versions of the vehicle were equipped with an improved 80-watt FuG 12 radio set. It was originally armed with a 7.92 mm MG 13 machine gun, but in 1938 this was changed to a Maschinengewehr 34. The crew was increased to three by the addition of a radio operator. Production ran from 1936 to January 1944, with at least 567 vehicles being produced for the army. Its full name was Leichter Panzerspähwagen (Fu).
The SdKfz 223 was usually deployed 1 to every 3 SdKfz 222.
I wargame in 1/144th scale so all my models are in this scale but it's fairly easy to up-scale to what ever you want.

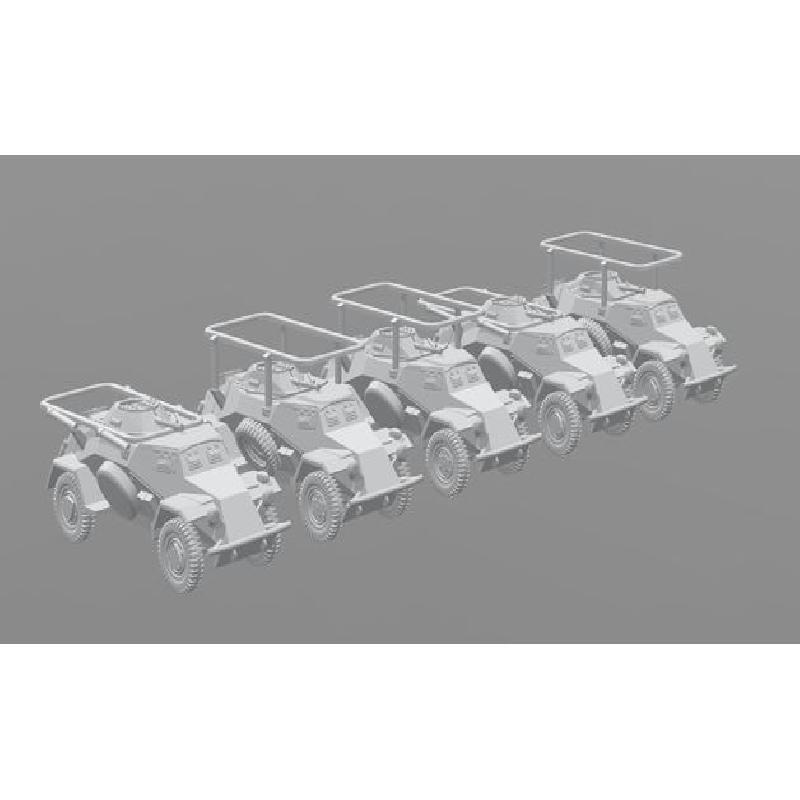

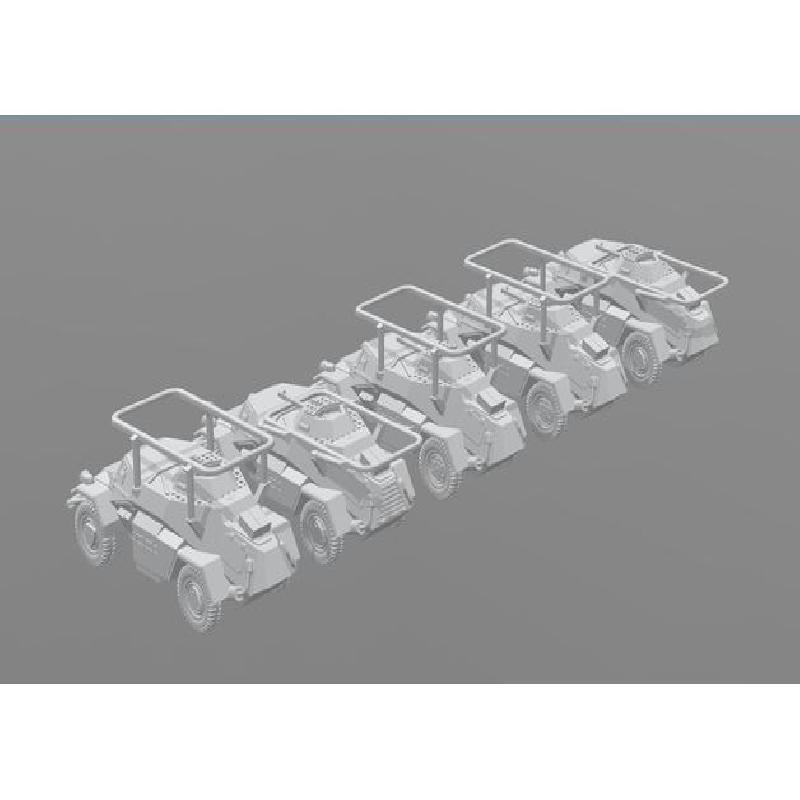

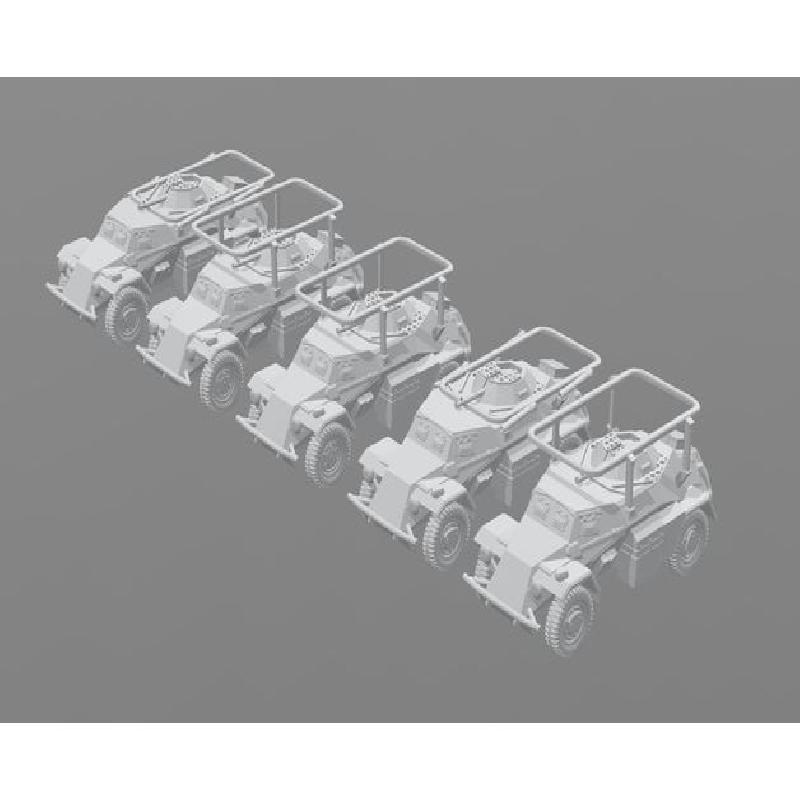

There are two basic models with early (A) or with late (B) vision ports, then each can have varies wheels etc and one of two types of antenna.
A1 wheel guards & covered spare

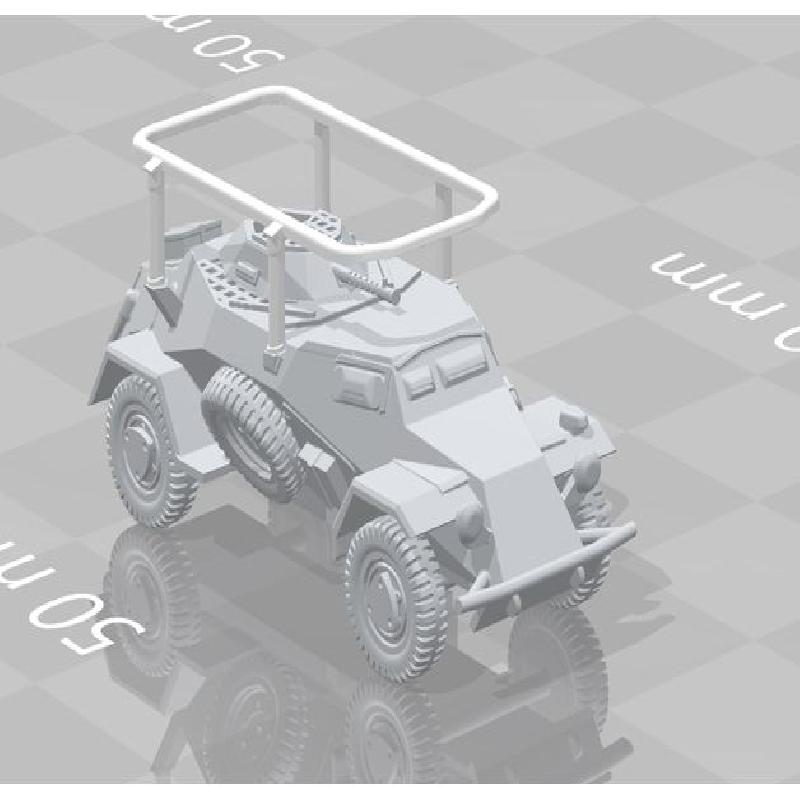

A2 wheel guards & uncovered spare
A3 wheel guards & uncovered spare, no radiator shield
A5 no wheel guards & uncovered spare
B1 wheel guards & covered spare
B2 wheel guards & uncovered spare
B3 no wheel guards & covered spare
B4 no wheel guards & uncovered spare
B5 no wheel guards & uncovered spare, no radiator shield

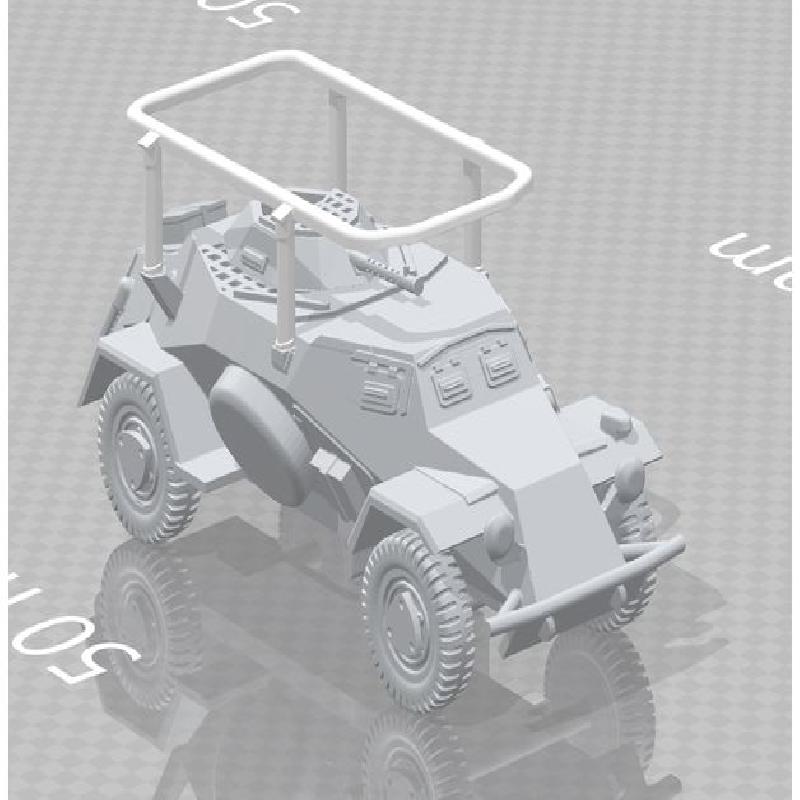

C1 raised antenna type 1

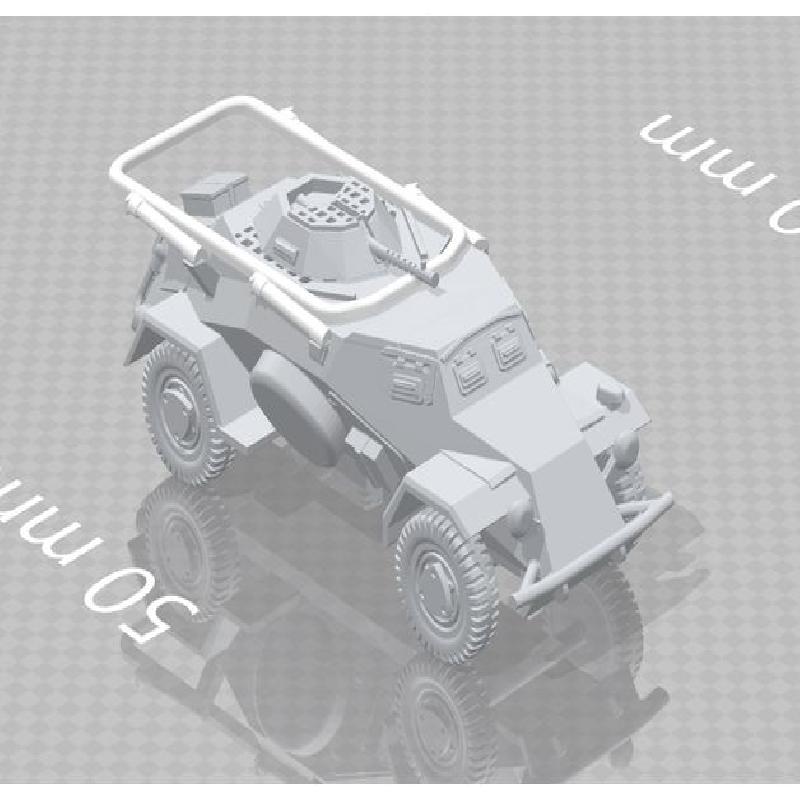

C2 folded antenna type 1
D1 raised antenna type 2
D2 folded antenna type 2
E1 MG34 turret
F1 simple turretThis gives about 20 variations!

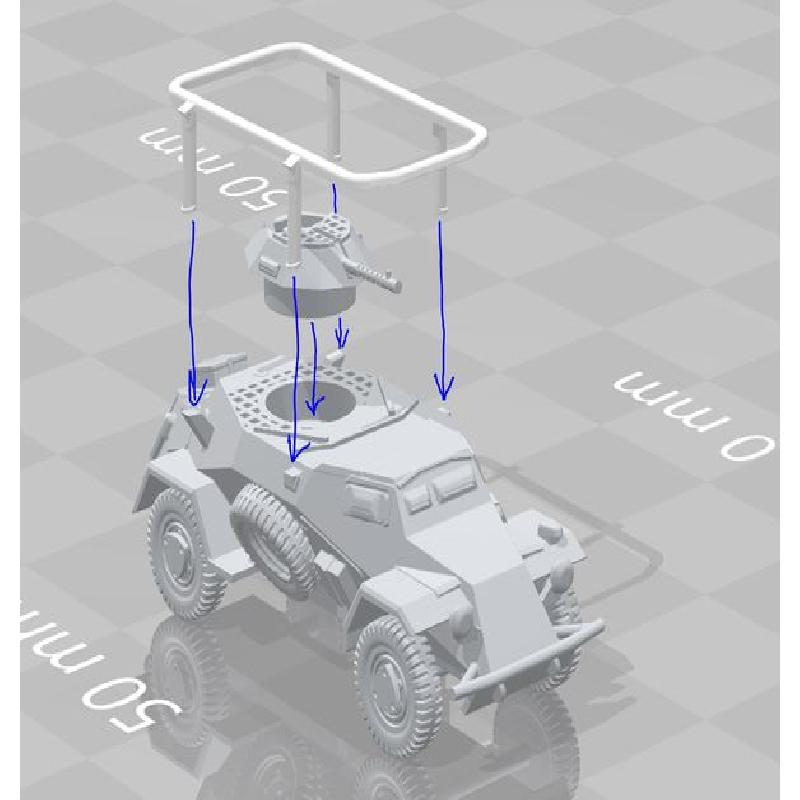

Some trimming of the top of the vehicle may need doing to get the folded antenna to lay flat and not interfere with the turret MG.
This is a re-mix of a number of things :- M-Bergman's 1:200 & 1:100 series. TigerAce1945's sdkfz 222, I used direwolf77's kfz 221 as the bases of my turret, can't remember were I got the tyres from?.
I haven't printed this yet!
I usually get my things printed commercially in resin.
