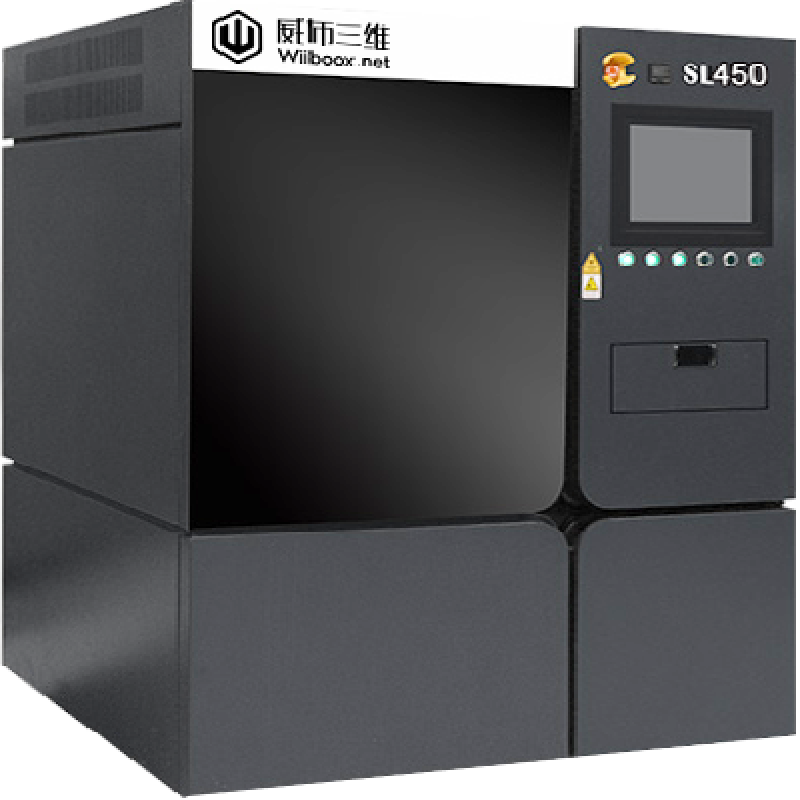

威布三维3DSL450工业级激光3D打印机(Wiibox 3D 3DSL450 industrial grade laser 3D printer)
威布三维3DSL450工业级激光3D打印机(Wiibox 3D 3DSL450 industrial grade laser 3D printer)
Price£75683
Shipping:£8
SOLD0 [Comment0Article]
- +
Add to Cart
In Stock:99
Seller:Another WorldV
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

威布三维3DSL450工业级激光3D打印机产品招标参数

名称及图片

技术参数、规格

单位

市场价

威布三维3DSL450工业级激光3D打印机

1.       主要参数:

打印技术:SLA

★激光类型:355nm固体激光器

★成型尺寸:450mm*450mm*350mm(L×W×H)

★成型层厚:0.03-0.25mm

★成型精度:±0.1mm(L≤100mm)或±0.1%×L(L>100mm)

激光功率 ≥500mW

设备尺寸:1350mm*900mm*1880mm

设备重量:950kg

支持带有STL接口的所有三维造型软件

工艺过程全自动,CAD数据驱动,无需特殊工装和工具

★可更换树脂槽,支持一台设备可通过更换打印多种耗材

★树脂槽系统具备自动储藏树脂功能,确保树脂在长期不使用时随机器储藏不变质

★采用升降式树脂槽设计,配合高精度液位检测系统,相比于传统的沉降块系统,液位控制更准确,打印过程更加稳定

★刮刀采用非横梁结构,可借助检测仪器实现刮刀快速调平,保证了单层未固化树脂层的涂覆均匀度,以及工件制品的成型精度

★采用弹性储能器的树脂真空吸附系统,可有效避免固化件被刮坏,又可大大提高树脂涂抹的均匀程度

★使用热空气方式加热,与传统加热树脂槽的方式相比,既可以对树脂温度进行控制又可以避免树脂变质,且机器的功耗更低,更节能

★设备控制软件须终生免费升级并免费新增模块

设备控制软件自动生成扫描路径,自动优化打印数据,支持打印数据快速自动排列,具备智能涂层功能,具备偏差设置功能,具备时间模拟模块,具备机器、激光器自动关机控制功能

★设备控制软件具备液位检测、液位补偿功能,保证液平面精确检测、自动液位补偿

操作系统:Windows7

电源:220V  50Hz

2. 本产品的技术参数和要求的内容,仅为最低要求,投标单位必须达到或超过参数要求且须提供产品彩页(必须为印刷品)并加盖生产厂商单位公章,否则视为不能响应招标文件参数。







Wiibox 3D450 3DSL450 industrial grade laser 3D printer product bidding parameters

Name and picture

Technical parameters, specifications

unit

Market price

Weibu 3D 3DSL450 industrial grade laser 3D printer

1. Main parameters:

Printing Technology: SLA

★Laser type: 355nm solid state laser

★Molding size: 450mm*450mm*350mm (L×W×H)

★Forming layer thickness: 0.03-0.25mm

★ Forming accuracy: ±0.1mm (L≤100mm) or ±0.1%×L (L>100mm)

Laser power ≥500mW

Equipment size: 1350mm*900mm*1880mm

Equipment weight: 950kg

Support for all 3D modeling software with STL interface

Fully automated process, CAD data driven, no special tools and tools required

★Replaceable resin tank, support one device, can print a variety of consumables by replacement

★The resin tank system has an automatic storage resin function to ensure that the resin does not deteriorate when stored for a long time.

★With lifting resin groove design and high-precision liquid level detection system, the liquid level control is more accurate and the printing process is more stable than the traditional sedimentation block system.

★The scraper adopts non-beam structure, which can realize the rapid adjustment of the scraper by means of the testing instrument, ensuring the uniformity of coating of the single-layer uncured resin layer and the forming precision of the workpiece.

★Resin vacuum adsorption system with elastic energy storage device can effectively prevent the cured parts from being scratched and greatly improve the uniformity of resin application.

★Using hot air heating, compared with the traditional method of heating the resin tank, it can control the resin temperature and avoid the deterioration of the resin, and the power consumption of the machine is lower and energy saving.

★Device control software must be upgraded free of charge for life and add new modules for free

The device control software automatically generates the scan path, automatically optimizes the print data, supports the rapid and automatic arrangement of the print data, has the intelligent coating function, has the deviation setting function, has the time simulation module, and has the automatic shutdown control function of the machine and the laser.

★The equipment control software has liquid level detection and liquid level compensation function to ensure accurate liquid level detection and automatic liquid level compensation.

Operating system: Windows7

Power supply: 220V 50Hz

2. The technical parameters and requirements of this product are only the minimum requirements. The bidder must meet or exceed the parameter requirements and must provide the product color page (must be printed) and affix the official seal of the manufacturer. Otherwise, it is considered unable to respond to the parameters of the bidding documents. .

station
