威布三维SLM250工业级金属3D打印机产品招标参数

Wiibox 3D SLM250 industrial grade metal 3D printer product bidding parameters

Name and picture

Technical parameters, specifications

unit

Market price

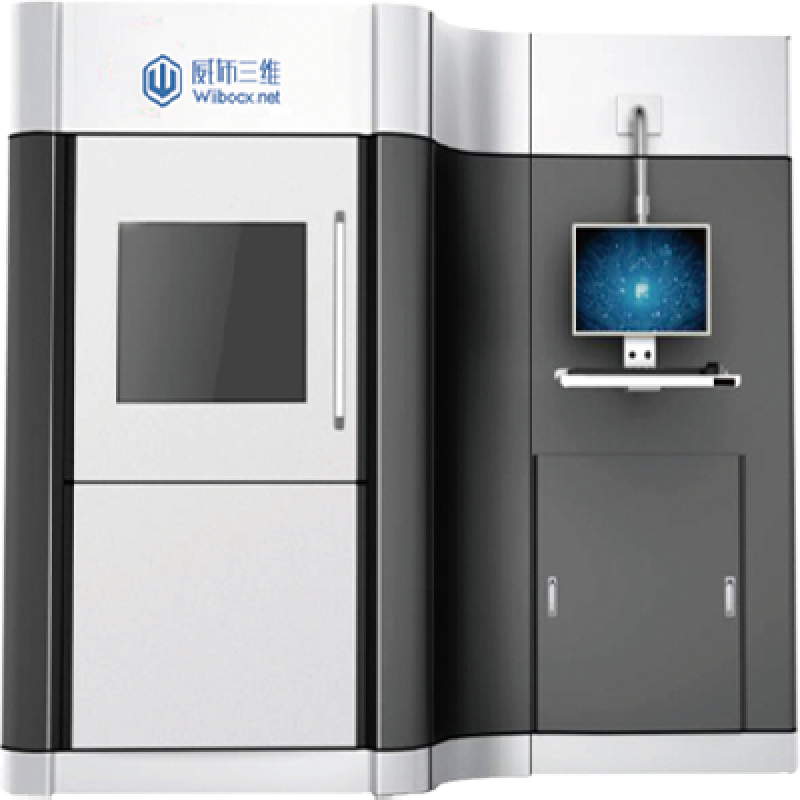

Weibu 3D SLM250 industrial grade metal 3D printer

1. Main parameters:

★Laser optical system: imported single-mode fiber laser, laser power: ≥200W, output power range: 10%-100%;

Laser cooling method: water cooling, chiller requirements: water storage capacity ≥ 10L, temperature control accuracy: ± 0.1 ° C, alarm when the water level is too low or the temperature is too high, cooling power: ≥ 2.5kW;

★ Scanning galvanometer: imported high-precision scanning galvanometer, laser spot can cover the entire sintering area, including four corners,

Scanning and positioning speed: X, Y axis scanning speed: ≥ 7m / s; X, Y positioning speed: ≥ 7m / s;

Positioning accuracy: scanning angle positioning accuracy ≤ ± 4μrad; repeat positioning accuracy ≤ ± 4μrad;

★Working room molding size: ≥250mm×250mm×300mm (L, W, H; with fastening screw position);

★Inflatable atmosphere of working cabin: adopting field mirror air-leather shielding protection, linear guide and active cleaning of observation window, etc., can simultaneously remove black smoke and oxidized slag generated during the forming process, keep the paving plane clean and ensure activity The metal powder is not oxidized. The inert gas flow and pressure input into the work chamber can be monitored and adjusted in real time;

★Working room sealing requirements: using a floating balance force elastic sealing device, 50 mbar positive pressure sealed working compartment, high-reliability sealing such as disturbance rapid oxygen discharge;

Inert gas consumption: less than 0.6m3/h during molding;

★Powdering device: It adopts active cleaning type powder-scraping device, adopts one-way dynamic intelligent powder laying method, and is equipped with at least two different materials for spreading powder scraper (high-speed steel, silicone rubber, etc.), according to the material of the parts and The shape is selected by a suitable scraper to achieve the best molding effect;

★ Thickness of paving layer: adjustable within 20μm ~ 80μm;

★ Oxygen analysis alarm function: The working chamber is equipped with an oxygen analyzer, and the test accuracy is 100ppm. During the processing, when the oxygen content in the working chamber rises to an abnormal level, the device has a photoacoustic alarm prompt function and stops processing. When the oxygen content drops to a certain value again, the processing can be continued after confirmation, thereby eliminating the processing process. The risk of explosion of the active metal powder and the quality of the processed parts;

Oxygen content in the working room: less than 1000ppm within 30min after starting the equipment;

★Independently developed control software that supports the following functions: During the forming process, the computer displays the current molding cycle progress (total height of the molding, total number of layers, current processing layer, processing time, start processing time, processed time), molding The required powder height, real-time display of oxygen content in the forming chamber, part temperature and other parameters, the forming process parameters can be modified as needed, the processing can be suspended, processing continues, the single-layer powder supply can be adjusted in real time, automatic control and manual control can Switching, when the automatic control fails, manual control can be performed at the standstill of the forming program, and the product is continuously formed according to the previously set program;

★Special functions: open core forming process parameters (laser power, scanning speed, scanning pitch, lap ratio, etc.), and can individually set and control the parameters of each machined part, with self-diagnosis function, can be used for the running process Various faults are alarmed in real time by sound and light;

Safety system: The equipment should have an emergency stop button, and the laser will stop running immediately after pressing;

★Smoke filter system: The filter system has an automatic cleaning component, which can automatically clean the filter element, which can achieve a filtration accuracy of 0.1μm and a discharge level of H13;

★ molding materials: stainless steel, die steel, cobalt chromium molybdenum, titanium alloy, aluminum alloy, copper alloy, high temperature nickel-based alloy powder, etc.;

Working requirements: power supply: power ≤ 9kW, requiring equipment to work stably for 24 hours in a working environment with an ambient temperature of 10 to 30 ° C and a relative humidity of ≤ 85%;

★Special requirements: The bidder should have the ability to provide laser zone melting technology support, and complete the specified part process trial production according to the purchaser's requirements. Provide stainless steel, nickel-based superalloy, titanium alloy material stable and reliable 3D additive manufacturing process parameters (laser scan path, power, scanning speed, lap rate, layer thickness, shrinkage, etc.) and prototype samples.

★One student auxiliary machine (including accessories) is provided at random: the auxiliary machine is FDM molding principle, double nozzle, the machine is fully enclosed and supports four-way opening, with air filter module and TVOC air safety certificate is required, print size ≥ 270mm*280mm*300mm, print layer thickness 0.05mm, the printing platform is magnetic buckle type removable aluminum plate, can be heated to 100 degrees, the platform supports three-point automatic leveling, support camera remote video monitoring and mobile APP remote connection operation, equipped More than 20,000 3d model material libraries, the material library contains websites and APPs, and APP supports Android and IOS downloads.

★ Material support: equipped with a 3D material library, the number of material libraries must be more than 20,000, the material covers characters, cartoons, education, architecture, fashion, toys, animals, plants, home, tools, animation games, etc. The material has 25 The above featured topics, each topic contains at least 5 quality materials of the same category. The material library contains the website and APP, and the APP supports Android and IOS downloads synchronously. The material library system must obtain the computer software copyright registration certificate for the computer terminal and the iphone mobile terminal and the Android mobile terminal.

2. The student's experimental assistant equipped with the metal 3D printer of the bidder shall pass the Korean TVOC air certification. (copy and stamp the official seal of the manufacturer)

3. Provide the manufacturer's original project authorization letter of attorney and the original after-sales service commitment letter of the project. (must be stamped with the official seal of the manufacturer)

4. The 3D model library provided by the bidder is required to provide the Software Copyright Registration Certificate. (copy and stamp the official seal of the software supplier unit)

5. The bidder's 3D printer has a 3D printing brand certificate for the China-US Youth Maker Competition.

The product parameters listed in Article 1 are the basic requirements for bidding, and the addition of part is mandatory. The parameter values of the bidding products shall meet or exceed the requirements of this article. The bidding unit shall provide the printing color page of the bidding product and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the bidding parameters.

Article 2 TVOC air certification shall provide a copy and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 3 The project authorization letter and the after-sales service commitment letter shall be provided with the original and affixed with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 4 "Software Copyright Registration Certificate" shall provide a copy and affix the official seal of the software supplier unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 5 requires additional requirements for bidding. If the bidding product meets the requirements, it may add 5 points. If it does not meet, it shall be reduced by 5 points.
