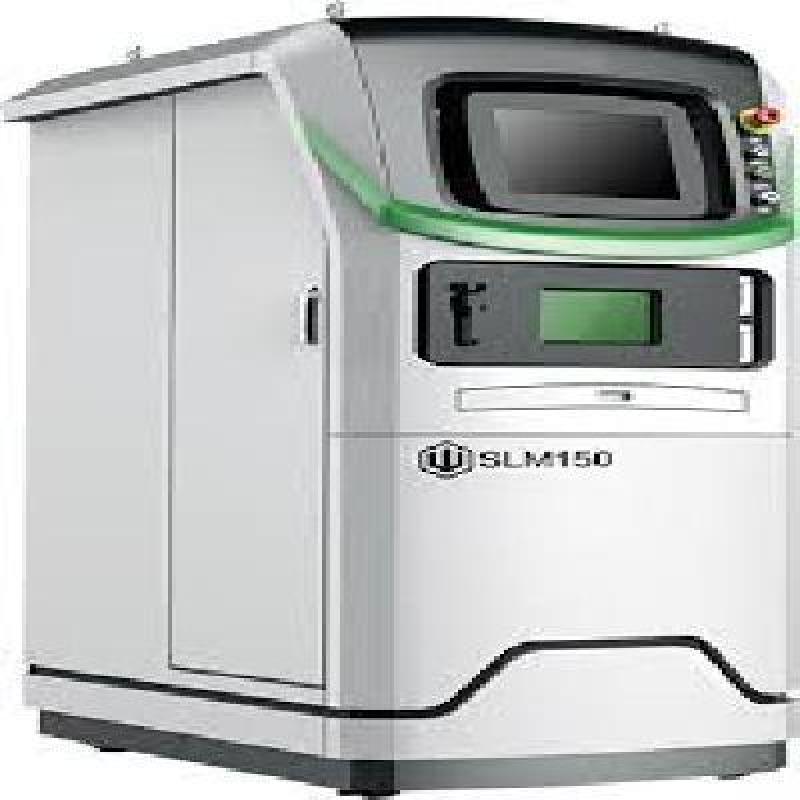

威布三维SLM150工业级金属3D打印机(Wiibox 3D SLM150 industrial grade metal 3D printer)
威布三维SLM150工业级金属3D打印机(Wiibox 3D SLM150 industrial grade metal 3D printer)
Price£189207
Shipping:£8
SOLD0 [Comment0Article]
- +
Add to Cart
In Stock:99
Seller:Another WorldV
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

威布三维SLM150工业级金属3D打印机产品招标参数

名称及图片

技术参数、规格

单位

市场价

威布三维SLM150工业级金属3D打印机

1.       主要参数:

★激光光学系统:进口单模光纤激光器,   激光功率:≥100W,输出功率范围:10%-100%;

激光器冷却方式:循环风冷;

★扫描振镜:进口高精度扫描振镜,激光光斑能覆盖到整个烧结区域,包括四个角落,

扫描定位速度:X,Y轴扫描速度:≥7m/s;X,Y定位速度:≥7m/s;

定位精度:扫描角度定位精度≤±4μrad;重复定位精度≤±4μrad;

★工作舱成型尺寸:≥120mm×120mm×80mm(L,W,H;含紧固螺钉位置);

★工作舱惰性气体氛围:同步去除成形过程中产生的黑烟及氧化渣,保持铺粉平面的清洁,同时保证活性金属粉末不被氧化。输入工作舱内的惰性气体流量及压力可被监控,且可实时调整;

★工作舱密封:50mbar正压密封工作舱、扰动快速排氧等高可靠密封形式;

惰性气体消耗:成型过程中小于0.6m³/h;

★铺粉装置:采用单向铺粉方式;

★铺粉层厚:15μm ~53μm内可调;

工作舱氧含量:设备启动后30min内达到1000ppm以下;

★独立研发的控制软件,人机界面与后台控制管理采用共享区分离,独立运行;

★特殊功能:开放核心成形工艺参数(激光功率、扫描速度、扫描间距、搭接率等),并可单独对各个加工零件的参数进行设定和控制,并带自诊断功能,可对运行过程的各种故障以声光方式实时报警;

安全系统:设备应有急停按钮,按下后激光器立即停止运行;

★烟尘过滤系统:过滤系统具有自动清洁组件,能够自动清洁滤芯,可达到过滤精度0.1µm,排放等级达到H13级;

★成型材料:不锈钢、模具钢、钴铬钼、铜合金、高温镍基合金粉末等;

工作要求:电源:功率≤3kW,要求设备在环境温度10~30℃、相对湿度≤85%的工作环境下24小时长期稳定工作;

★特殊要求:投标商应具有提供激光选区熔化技术工艺支持的能力,并按照采购方要求完成指定零件工艺试制,提供不锈钢,镍基高温合金,铜合金材料稳定可靠的3D增材制造成形工艺参数(激光扫描路径、功率、扫描速度、搭接率、层厚、收缩率等)及试制样品。

★随机提供学生实验副机(含配件)1台:副机为FDM成型原理,双喷头,机器全封闭且支持四向开启,带有空气过滤模块且须提供TVOC空气安全认证证书,打印尺寸≥270mm*280mm*300mm,打印层厚0.05mm,打印平台为磁扣式拆卸可更换式铝板,可加热至100度,平台支持三点式自动调平, 支持摄像头远程视频监控与手机APP远程连接操作,配备2万个以上的3d模型素材库,素材库包含网站及APP,APP同步支持安卓及IOS下载。

★素材支持:配备一个3d素材库,素材库数量须大于2万个,素材涵盖人物、卡通、教育、建筑、时尚、玩具、动物、植物、家居、工具、动漫游戏等类别,素材拥有25个以上特色专题,每个专题包含至少5个以上同类别优质素材。素材库包含网站及APP,APP同步支持安卓及IOS下载,素材库系统须取得电脑终端与iphone移动终端及Android移动终端《计算机软件著作权登记证书》。

2.  投标单位所投金属3D打印机配备的学生实验副机需通过韩国TVOC空气认证。(复印件并加盖生产厂商单位公章)

3. 提供生产厂商对本项目的原厂项目授权委托书及售后服务承诺书原件。(须加盖生产厂商单位公章)

4. 投标单位配备的3D模型库需提供《软件著作权登记证书》。(复印件并加盖软件供应商单位公章)

5.投标人所投3D打印机具有中美青年创客大赛指定3D打印品牌证书

第1条所列产品参数为招标基础要求,加★部分为必须满足项,投标产品的参数值应符合或高于本条要求。投标单位须提供投标产品的印刷彩页,并加盖生产厂商单位公章,否则视为不能响应招标参数。

第2条TVOC空气认证须提供复印件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第3条项目授权委托书及售后服务承诺书须提供原件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第4条《软件著作权登记证书》须提供复印件并加盖软件供应商单位公章,否则视为不能响应招标文件参数。

第5条要求为招标附加要求,投标产品如符合要求,可加5分,如不符合,须减5分。







Wiibox 3D SLM150 industrial grade metal 3D printer product bidding parameters

Name and picture

Technical parameters, specifications

unit

Market price

Weibu 3D SLM150 industrial grade metal 3D printer


1. Main parameters:

★Laser optical system: imported single-mode fiber laser, laser power: ≥100W, output power range: 10%-100%;

Laser cooling method: circulating air cooling;

★ Scanning galvanometer: imported high-precision scanning galvanometer, laser spot can cover the entire sintering area, including four corners,

Scanning and positioning speed: X, Y axis scanning speed: ≥ 7m / s; X, Y positioning speed: ≥ 7m / s;

Positioning accuracy: scanning angle positioning accuracy ≤ ± 4μrad; repeat positioning accuracy ≤ ± 4μrad;

★Working room molding size: ≥120mm×120mm×80mm (L, W, H; with fastening screw position);

★Inflatable atmosphere in the working chamber: Simultaneously remove the black smoke and oxidized slag generated during the forming process, keep the paving plane clean, and ensure that the active metal powder is not oxidized. The inert gas flow and pressure input into the work chamber can be monitored and adjusted in real time;

★Working room seal: 50 mbar positive pressure sealed working compartment, high-reliability sealing type such as rapid oxygen discharge;

Inert gas consumption: less than 0.6m3/h during molding;

★ Paving device: one-way paving method;

★Powder layer thickness: adjustable from 15μm to 53μm;

Oxygen content in the working room: less than 1000ppm within 30min after starting the equipment;

★ Independently developed control software, human-machine interface and background control management are separated by shared area and run independently;

★Special functions: open core forming process parameters (laser power, scanning speed, scanning pitch, lap ratio, etc.), and can individually set and control the parameters of each machined part, with self-diagnosis function, can be used for the running process Various faults are alarmed in real time by sound and light;

Safety system: The equipment should have an emergency stop button, and the laser will stop running immediately after pressing;

★Smoke filter system: The filter system has an automatic cleaning component, which can automatically clean the filter element, which can achieve a filtration accuracy of 0.1μm and a discharge level of H13;

★ molding materials: stainless steel, die steel, cobalt chromium molybdenum, copper alloy, high temperature nickel-based alloy powder, etc.;

Working requirements: power supply: power ≤ 3kW, requiring equipment to work stably for 24 hours in a working environment with an ambient temperature of 10 to 30 ° C and a relative humidity of ≤ 85%;

★Special requirements: The bidder should have the ability to provide laser zone melting technology support, and complete the specified part process trial production according to the purchaser's requirements. Provide stainless steel, nickel-base superalloy, copper alloy material stable and reliable 3D additive manufacturing process parameters (laser scan path, power, scanning speed, lap rate, layer thickness, shrinkage, etc.) and prototype samples.

★One student auxiliary machine (including accessories) is provided at random: the auxiliary machine is FDM molding principle, double nozzle, the machine is fully enclosed and supports four-way opening, with air filter module and TVOC air safety certificate is required, print size ≥ 270mm*280mm*300mm, print layer thickness 0.05mm, the printing platform is magnetic buckle type removable aluminum plate, can be heated to 100 degrees, the platform supports three-point automatic leveling, support camera remote video monitoring and mobile APP remote connection operation, equipped More than 20,000 3d model material libraries, the material library contains websites and APPs, and APP supports Android and IOS downloads.

★ Material support: equipped with a 3D material library, the number of material libraries must be more than 20,000, the material covers characters, cartoons, education, architecture, fashion, toys, animals, plants, home, tools, animation games, etc. The material has 25 The above featured topics, each topic contains at least 5 quality materials of the same category. The material library contains the website and APP, and the APP supports Android and IOS downloads synchronously. The material library system must obtain the computer software copyright registration certificate for the computer terminal and the iphone mobile terminal and the Android mobile terminal.

2. The student's experimental assistant equipped with the metal 3D printer of the bidder shall pass the Korean TVOC air certification. (copy and stamp the official seal of the manufacturer)

3. Provide the manufacturer's original project authorization letter of attorney and the original after-sales service commitment letter of the project. (must be stamped with the official seal of the manufacturer)

4. The 3D model library provided by the bidder is required to provide the Software Copyright Registration Certificate. (copy and stamp the official seal of the software supplier unit)

5. The bidder's 3D printer has a 3D printing brand certificate for the China-US Youth Maker Competition.

The product parameters listed in Article 1 are the basic requirements for bidding, and the addition of part is mandatory. The parameter values of the bidding products shall meet or exceed the requirements of this article. The bidding unit shall provide the printing color page of the bidding product and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the bidding parameters.

Article 2 TVOC air certification shall provide a copy and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 3 The project authorization letter and the after-sales service commitment letter shall be provided with the original and affixed with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 4 "Software Copyright Registration Certificate" shall provide a copy and affix the official seal of the software supplier unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 5 requires additional requirements for bidding. If the bidding product meets the requirements, it may add 5 points. If it does not meet, it shall be reduced by 5 points.
