威布三维Reeyee X7手持式多功能三维扫描仪(Weibu 3D Reeyee X7 Handheld Multifunction 3D Scanner)
威布三维Reeyee X7手持式多功能三维扫描仪(Weibu 3D Reeyee X7 Handheld Multifunction 3D Scanner)
Price£41625
Shipping:£8
SOLD0 [Comment0Article]
- +
Add to Cart
In Stock:99
Seller:Another WorldV
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

威布三维 Reeyee X7产品招标参数

名称及图片

技术参数、规格

单位

市场价

威布三维Reeyee   X7手持式多功能三维扫描仪

1.       主要参数:

★扫描方式:激光手持照相式

★扫描技术:激光线网格扫描技术

帧扫描区域:300mm×275mm

景深:250mm(自动)

工作距离:300mm

★扫描速率: 480000次/秒

扫描分辨率:0.05(毫米)

★测量精度:0.03 mm

★体积精度:0.020 + 0.06(毫米/米)

体积精度(结合DigiMetric):0.020 + 0.025(毫米/米)

测量范围(物件尺寸):0.1 ~8米,可扩展

传输方式: USB3.0

工作温度:-10 - 40℃

工作湿度:10 - 90 %

三维光学扫描系统配置与功能

数据采集传感器:高速、高精密工业级相机2台

★内置微惯性传感器,实时输出设备位姿;

★测量光源:7束 14根交叉激光线(加额外一束单独激光),激光级别ClassII(人眼安全),波长大于600纳米

计算机系统:支持windows 7,32位和64位操作系统,支持内存16G以上

拼接方式:系统整合“专业模式”全自动标志点拼接模块

全局误差控制方式:GREC Pro全局误差控制

★扫描方式:FLESA可变点距扫描

★使用方便:整个过程全部手持完成,无需三脚架等支撑装置

所测量的物体表面可不做任何形式(如喷白)的预先处理

防抖设计:采用先进的防抖动算法,防止扫描过程中人为的抖动对误差的影响

自动探测被扫描物体颜色材质,从而自动调节激光亮度及CCD曝光

可一键自动过滤扫描背景数据,自动删除杂点及过滤不良点云数据

软件界面实时捕捉静态图像,一键截图功能

★碳纤维材质标定板,轻量化,抗压耐高温,不易变形,非石英玻璃材质。双面标定,白平衡标定功能,有效减少扫描噪声

三维光学扫描系统软件功能

★全中文软件界面

★自适应形面扫描模块

自动调节系统参数,自适应各种材质/颜色表面的不同扫描对象,无需手动调节;

FLESA可变点距扫描,在同一次扫描中,可对点距进行灵活设置和改变,同时满足高速扫描以及精细扫描的需求

★自动拼接模块

智能标志点识别技术:系统自动跟踪识别标志点;

惯性—光学混合式传感器定位技术,实时将数据自动配准到同一坐标系;

GREC Pro全局误差控制模块,可对拼接后的误差进行全局控制;

★全局框架扫描模块

全局框架扫描技术,对框架点累积误差进行全局控制;

兼容DigiMetric系统,搭载全局摄影测量技术可将扫描范围扩展至几十米;

★后处理模块

扫描数据后,可进行点云噪声处理及修剪

内置友好的网格处理控制参数人机交互界面,可对去除钉状物、精简、平滑、特征锐化等网格处理参数进行设置

自动生成STL三角面

自动对三角网格数据进行补洞、去除钉状物、精简、平滑、特征锐化等处理

数据输入输出

导出结果为ASC,STL,OBJ,OKO等格式数据输出接口广泛,测量结果可与CATIA、Geomagic Studio、Imageware等逆向工程软件自由交换数据

配备三维数据管理系统  1套

采用三维引擎实现对三维模型、图片和文字的显示;

★采用Access数据库,可实现对对象的树状管理和从图片上选择区域进行切换等功能,从而实现对三维数据、图片和文字的有效管理;

能对三维数据进行多层次树状结构管理,实现从大场景到局部细节的有效管理;

★支持对三维模型、图片和文字的综合管理,并能相互切换;

支持从图片上选择区域切换,用户可以随心所欲的浏览对象的每一个细节;

★截取高清晰的光照图信息;

★实现对三维模型的分析如距离等进行量测,得到最准确的测绘资料;

数据库基于Windows XP操作系统;

三维模型的支持格式为: STL,OBJ,VRML,IGES,OKO;

图片支持的格式为:JPG,BMP;

文字支持的格式为:html;

★素材支持:配备一个3d素材库,素材库数量须大于2万个,素材涵盖人物、卡通、教育、建筑、时尚、玩具、动物、植物、家居、工具、动漫游戏等类别,素材拥有25个以上特色专题,每个专题包含至少5个以上同类别优质素材。素材库包含网站及APP,APP同步支持安卓及IOS下载,素材库系统须取得电脑终端与iphone移动终端及Android移动终端《计算机软件著作权登记证书》。

2. 提供生产厂商对本项目的原厂项目授权委托书及售后服务承诺书原件。(须加盖生产厂商单位公章)

3. 投标单位配备的3D模型库需提供《软件著作权登记证书》。(复印件并加盖软件供应商单位公章)

4. 投标人所投3D扫描仪具有中美青年创客大赛指定3D扫描品牌证书

第1条所列产品参数为招标基础要求,加★部分为必须满足项,投标产品的参数值应符合或高于本条要求。投标单位须提供投标产品的印刷彩页,并加盖生产厂商单位公章,否则视为不能响应招标参数。

第2条项目授权委托书及售后服务承诺书须提供原件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第3条《软件著作权登记证书》须提供复印件并加盖软件供应商单位公章,否则视为不能响应招标文件参数。

第4条要求为招标附加要求,投标产品如符合要求,可加5分,如不符合,须减5分。







Wiibox 3D Reeyee X7 product bidding parameters

Name and picture

Technical parameters, specifications

unit

Market price

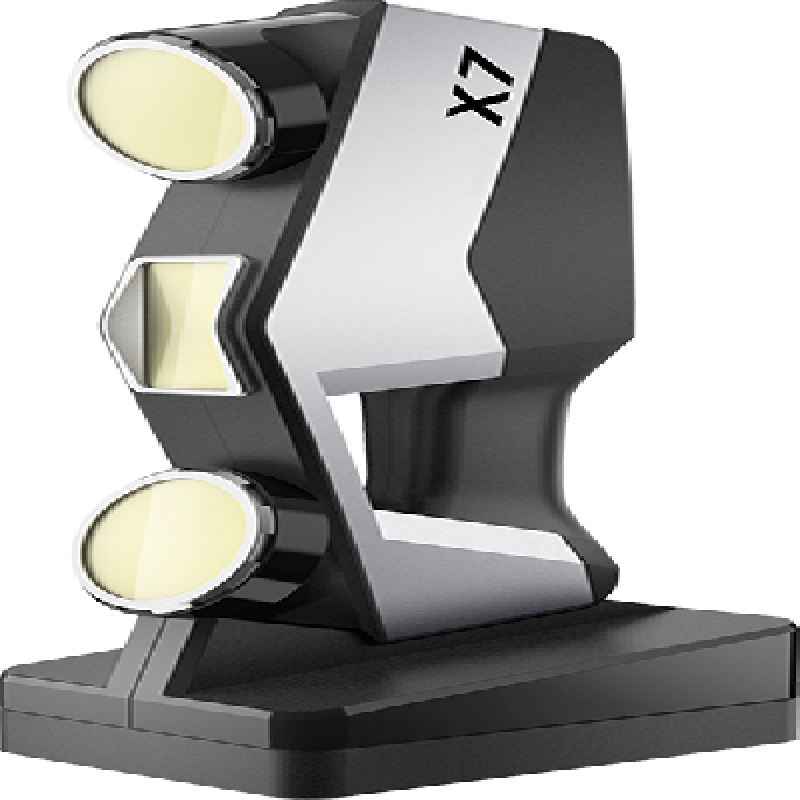

Weibu 3D Reeyee X7 Handheld Multifunction 3D Scanner


1. Main parameters:

★ Scanning method: laser handheld camera

★ Scanning technology: laser line grid scanning technology

Frame scanning area: 300mm × 275mm

Depth of field: 250mm (automatic)

Working distance: 300mm

★ Scan rate: 480000 times / sec

Scanning resolution: 0.05 (mm)

★ Measurement accuracy: 0.03 mm

★ Volume accuracy: 0.020 + 0.06 (mm / m)

Volume accuracy (in combination with DigiMetric): 0.020 + 0.025 (mm/m)

Measuring range (object size): 0.1 to 8 meters, expandable

Transmission method: USB3.0

Working temperature: -10 - 40 °C

Working humidity: 10 - 90 %

3D optical scanning system configuration and function

Data acquisition sensor: 2 sets of high-speed, high-precision industrial grade cameras

★ Built-in micro inertial sensor, real-time output device posture;

★Measurement light source: 7 bundles 14 cross laser lines (plus an additional bundle of lasers), laser level Class II (human eye safety), wavelength greater than 600 nm

Computer system: support windows 7, 32-bit and 64-bit operating systems, support memory above 16G

Stitching method: system integration "professional mode" automatic marker point splicing module

Global error control mode: GREC Pro global error control

★ Scanning method: FLESA variable point scan

★Easy to use: the whole process is completed by hand, no need for support equipment such as tripod

The surface of the measured object can be pre-processed without any form (such as whitening)

Anti-shake design: Advanced anti-shake algorithm to prevent the impact of artificial jitter on the scanning process

Automatically detect the color material of the scanned object, thus automatically adjusting the laser brightness and CCD exposure

Automatically filter and scan background data with one button, automatically delete noise and filter bad point cloud data

Software interface captures still images in real time, one-click screenshot function

★ Carbon fiber material calibration plate, light weight, high temperature resistance, high temperature resistance, non-deformation, non-quartz glass material. Double-sided calibration, white balance calibration function, effectively reduce scanning noise

3D optical scanning system software function

★All Chinese software interface

★Adapted face scanning module

Automatically adjust system parameters to adapt to different scanning objects of various materials/color surfaces without manual adjustment;

FLESA variable-pitch scanning, in the same scan, can flexibly set and change the dot pitch, while meeting the needs of high-speed scanning and fine scanning

★Automatic splicing module

Intelligent marker point recognition technology: the system automatically tracks the identification mark points;

Inertial-optical hybrid sensor positioning technology that automatically registers data to the same coordinate system in real time;

GREC Pro global error control module can globally control the error after splicing;

★Global Frame Scanning Module

Global frame scanning technology to globally control the cumulative error of frame points;

Compatible with the DigiMetric system, with global photogrammetry technology to extend the scanning range to tens of meters;

★ Post-processing module

After scanning the data, it can perform point cloud noise processing and trimming

Built-in friendly grid processing control parameters human-computer interaction interface, can set the grid processing parameters such as nail removal, streamlining, smoothing, feature sharpening, etc.

Automatically generate STL triangle faces

Automatically fill holes, remove nails, reduce, smooth, feature sharpen, etc.

Data input and output

The output results are widely distributed in ASC, STL, OBJ, OKO and other formats. The measurement results can be freely exchanged with reverse engineering software such as CATIA, Geomagic Studio, and Imageware.

Equipped with 3D data management system 1 set

Use 3D engine to display 3D models, pictures and texts;

★Using Access database, it can realize the tree management of objects and the selection of areas from the image to switch, so as to realize the effective management of 3D data, pictures and texts;

It can manage multi-level tree structure of 3D data and realize effective management from large scene to local detail;

★ Supports integrated management of 3D models, pictures and texts, and can switch to each other;

Support for selecting area switching from the picture, the user can browse every detail of the object as desired;

★ intercept high-resolution light map information;

★Implement the analysis of 3D models such as distance, and obtain the most accurate surveying and mapping data;

The database is based on the Windows XP operating system;

Supported formats for 3D models are: STL, OBJ, VRML, IGES, OKO;

The format supported by the image is: JPG, BMP;

The format of text support is: html;

★ Material support: equipped with a 3D material library, the number of material libraries must be more than 20,000, the material covers characters, cartoons, education, architecture, fashion, toys, animals, plants, home, tools, animation games, etc. The material has 25 The above featured topics, each topic contains at least 5 quality materials of the same category. The material library contains the website and APP, and the APP supports Android and IOS downloads synchronously. The material library system must obtain the computer software copyright registration certificate for the computer terminal and the iphone mobile terminal and the Android mobile terminal.

2. Provide the manufacturer's original project authorization letter of attorney and the original after-sales service commitment letter of the project. (must be stamped with the official seal of the manufacturer)

3. The 3D model library provided by the bidder is required to provide the Software Copyright Registration Certificate. (copy and stamp the official seal of the software supplier unit)

4. The bidder's 3D scanner has a 3D scanning brand certificate for the China-US Youth Maker Competition.

The product parameters listed in Article 1 are the basic requirements for bidding, and the addition of part is mandatory. The parameter values of the bidding products shall meet or exceed the requirements of this article. The bidding unit shall provide the printing color page of the bidding product and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the bidding parameters.

The Article 2 project authorization letter and after-sales service commitment letter shall be provided with the original and affixed with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 3 "Software Copyright Registration Certificate" shall provide a copy and affix the official seal of the software supplier unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 4 requires additional requirements for bidding. If the bidding product meets the requirements, it may add 5 points. If it does not meet, it shall be reduced by 5 points.

station
