When I startet printing vehicles, I often was frustrated about the deficient print quality and the awful cleaning work.
So I decided to divide the object into several parts.
The focus is on print quality and avoiding support structures.

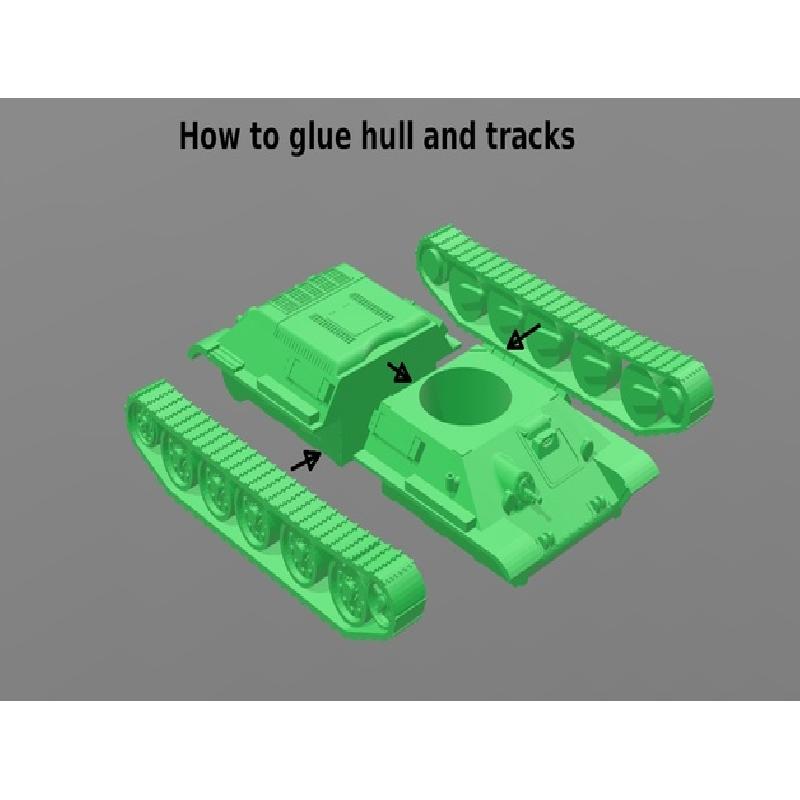

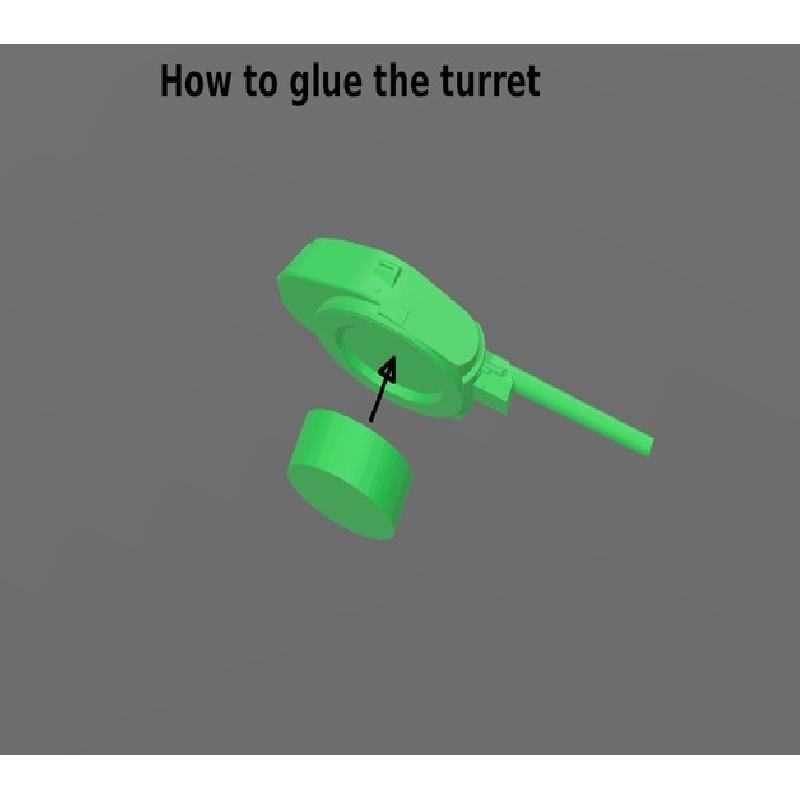

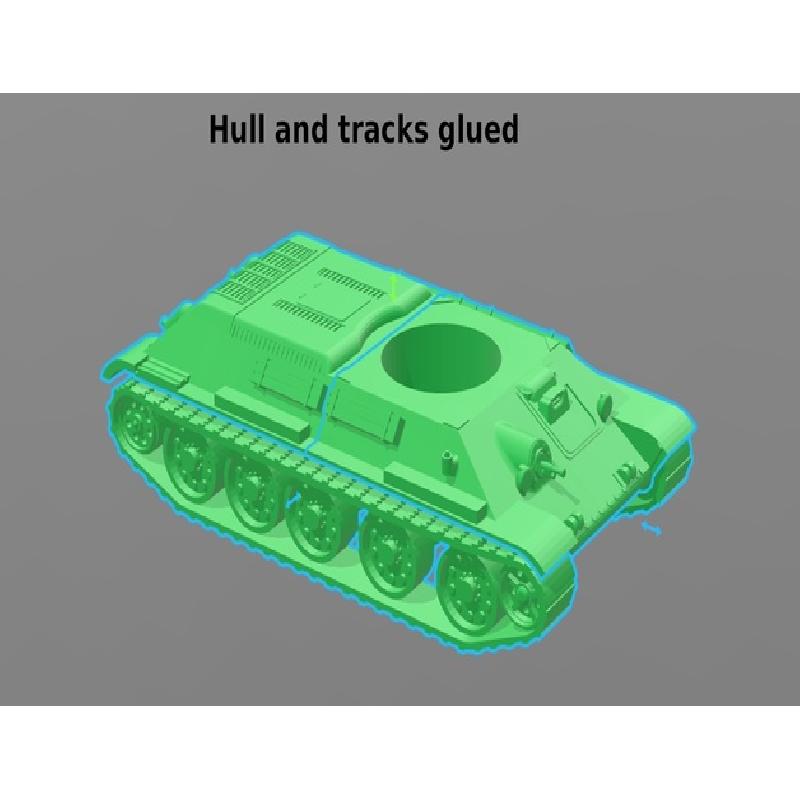

After printing, the parts have to be glued together.
Meanwhile I printed and built some models in this way.
I publish the print files for all users which like to have quick and good prints results.
At least let my thank the original designers of the models. They are important for our community. I only cut their models into several pieces ... nothing else.

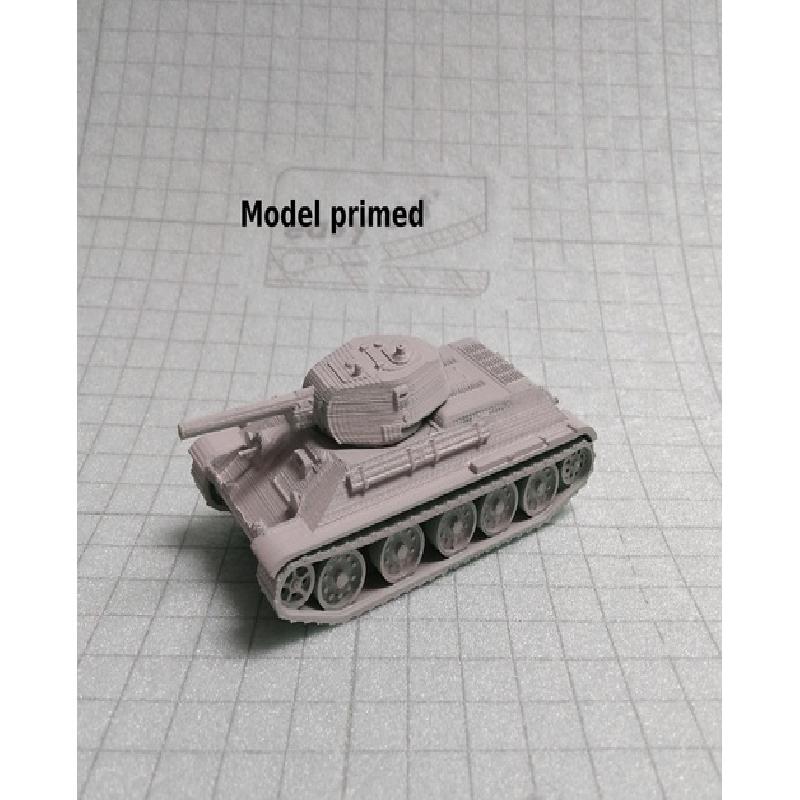

This time I worked on the T34-76.
I took this object, cutted it into several pieces and printed it with my FDM printer at a scale of 1/72. The attached stl-files are scaled to 1/100.

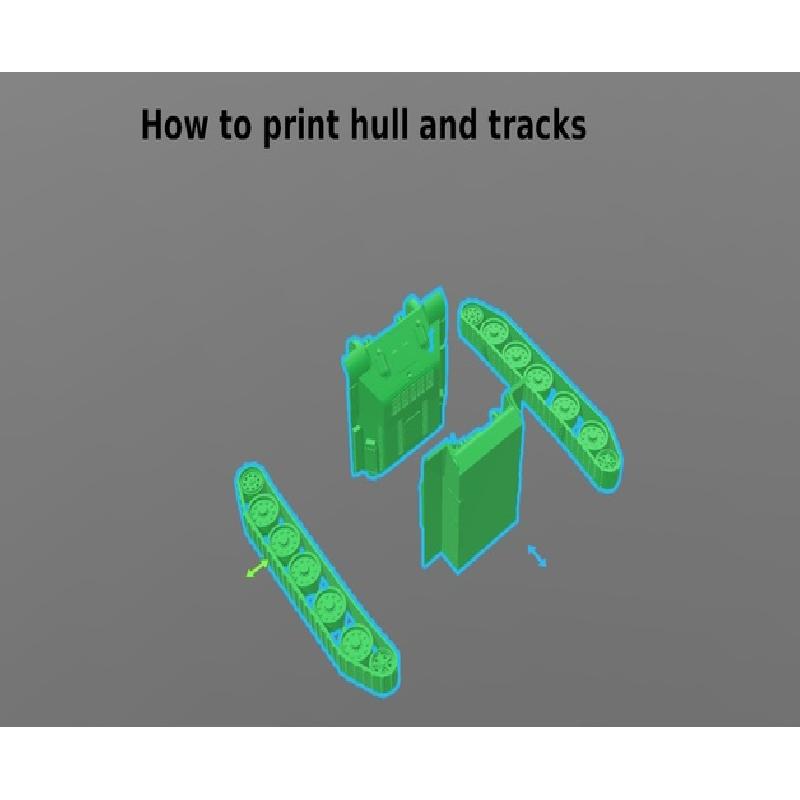

The 2 parts of the hull, front and rear section were printed without support.
The slewing ring of the turret was also printed without support.

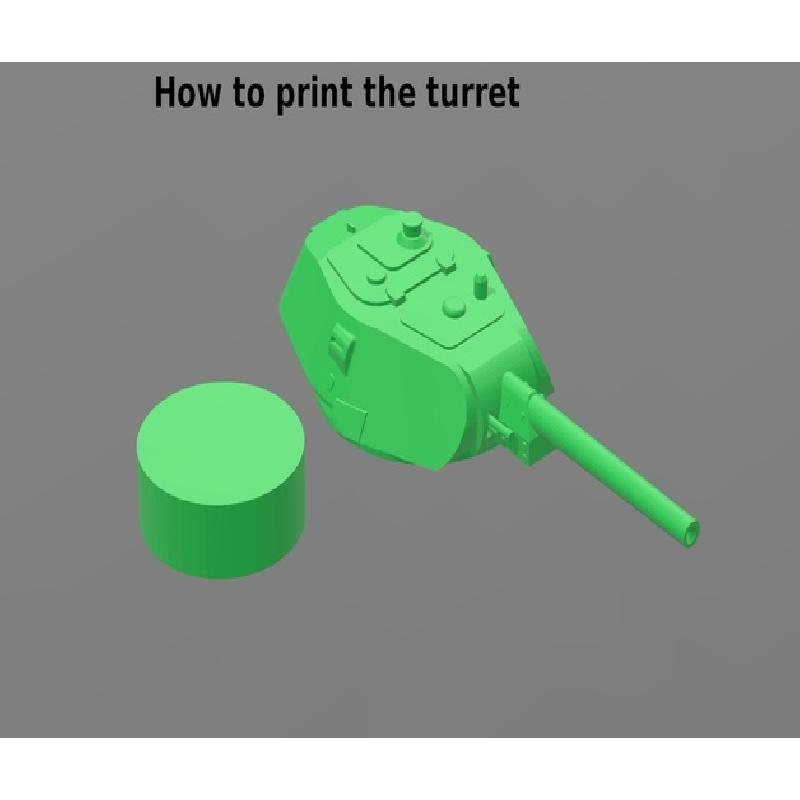

The tracks and the turret were printed with support.
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0,3 mm
Infill:
20 %
Notes:
PLA printed at 205°C, heated printbed at 70°C
