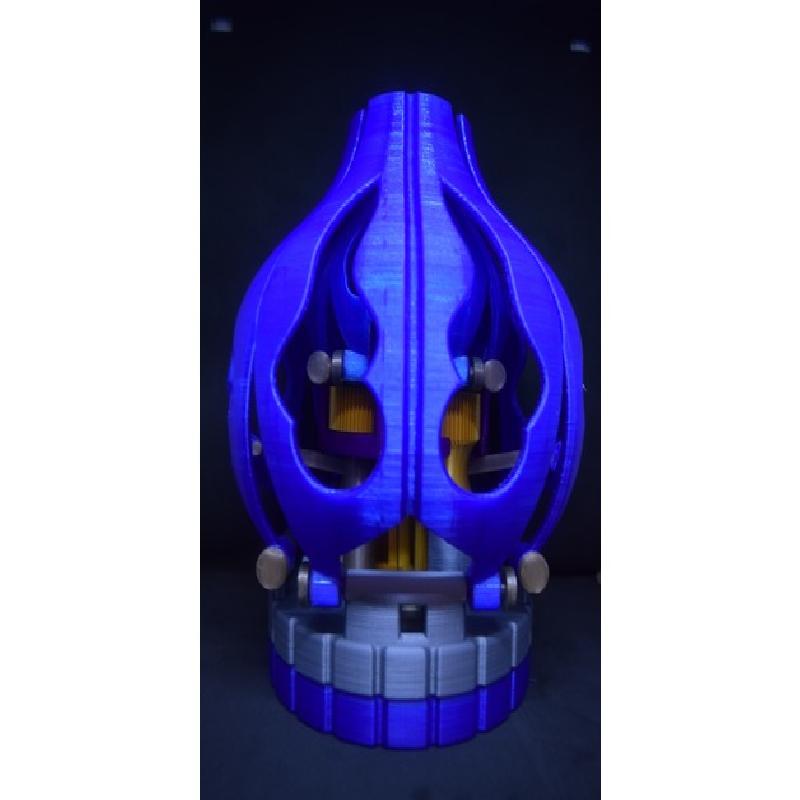

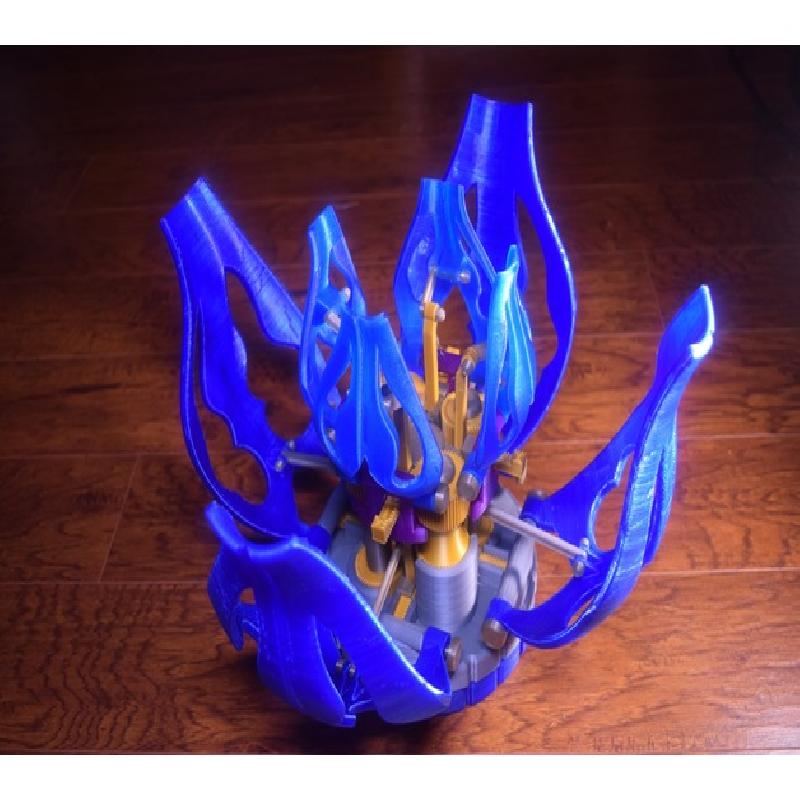

I wanted to make something that combines engineering and art. When the Mechnolia's mid-body is turned, all eight petals open and close.
Printer Brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
Yes
Resolution:
.2 and .1
Infill:
5-100%
Notes:
This project was actually printed with multiple printers. I printed all of the gear parts with 100% infill with a .1mm layer height. I printed the large petals with 5% infill with a .2mm layer height.
Parts Needed
1 x bottom-body.
2 x bottom-tall-gear.

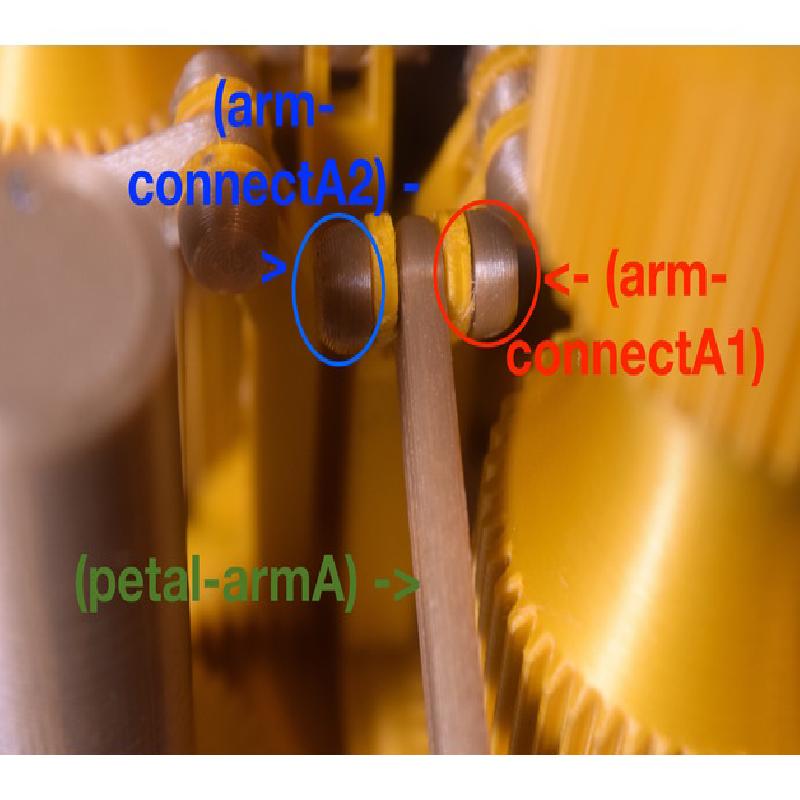

4 x arm-connectA1.
4 x arm-connectA2.

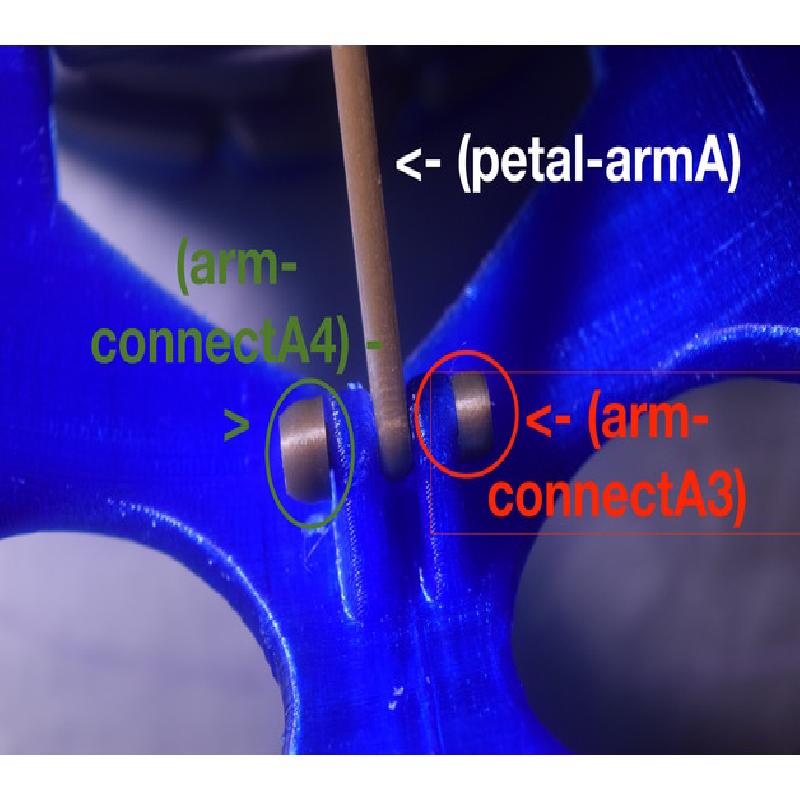

4 x arm-connectA3.
4 x arm-connectA4.
4 x arm-connectB1.
4 x arm-connectB2.

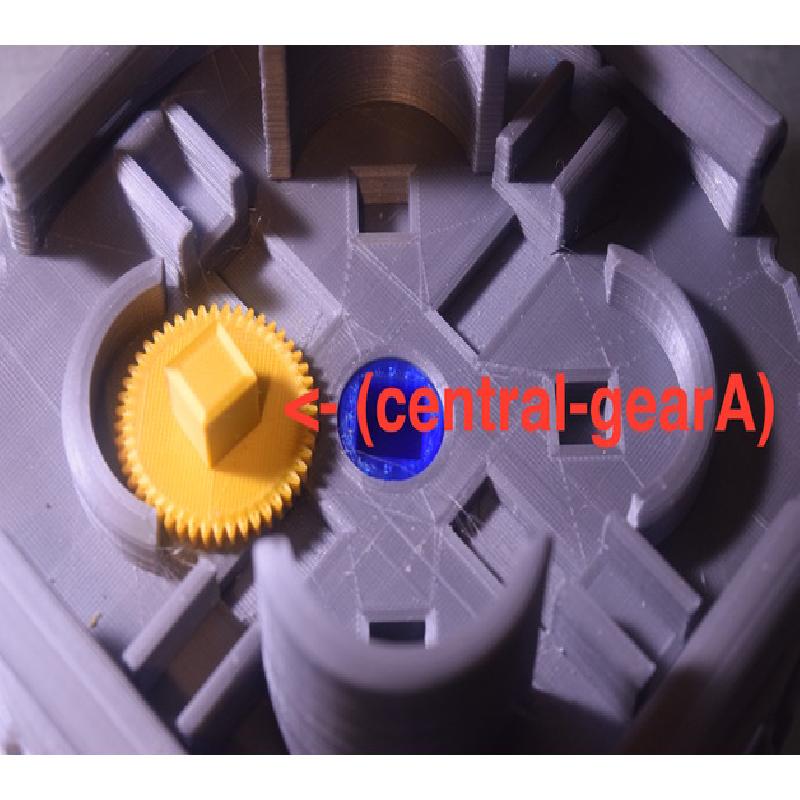

1 x central-gearA.

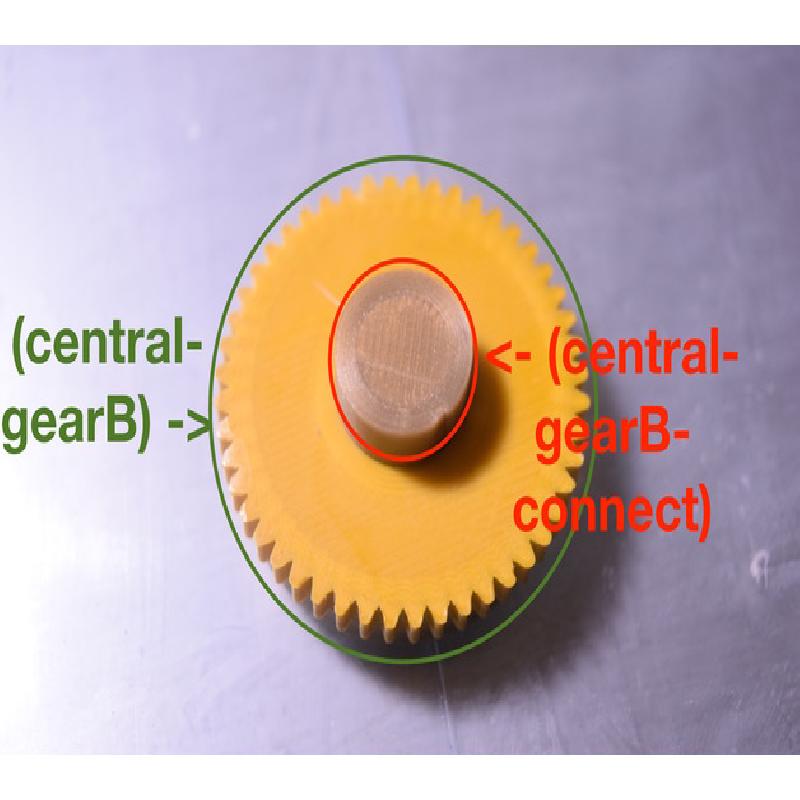

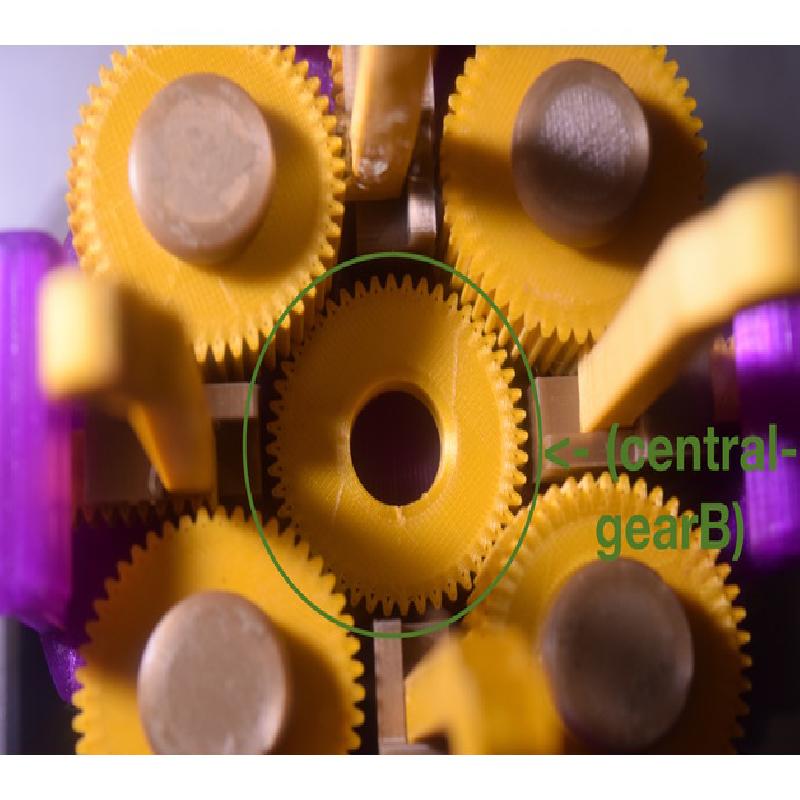

1 x central-gearB.
1 x central-gearB-connect.

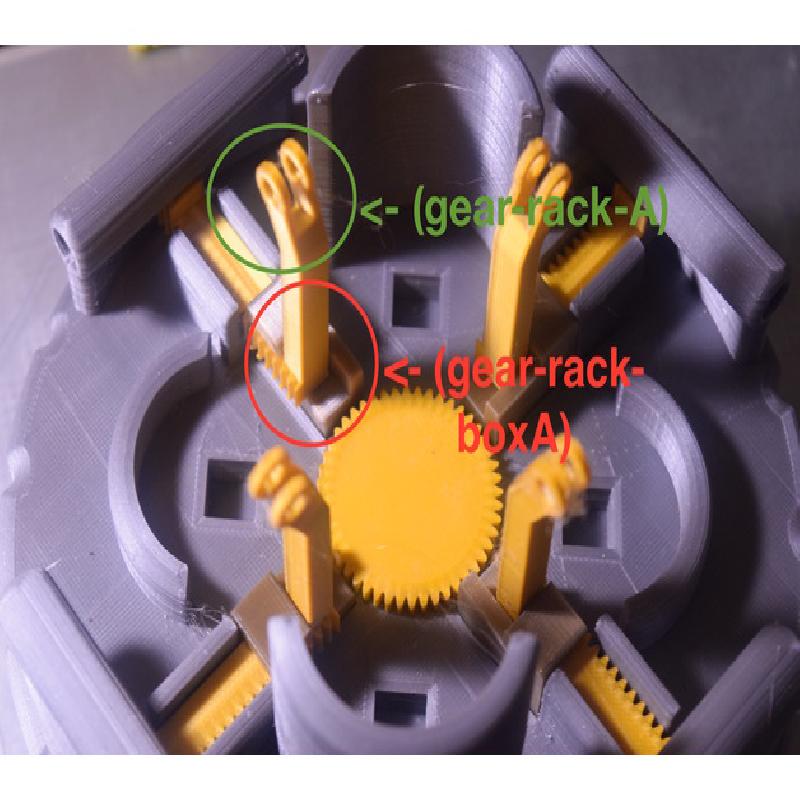

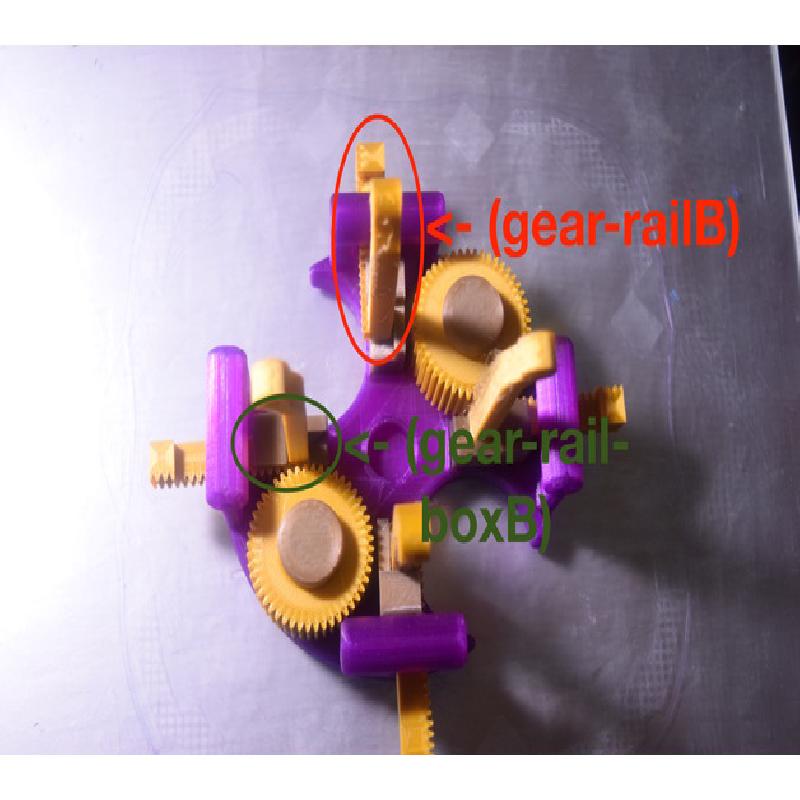

4 x gear-rail-boxA.
4 x gear-rail-boxB.
4 x gear-railA.
4 x gear-railB.

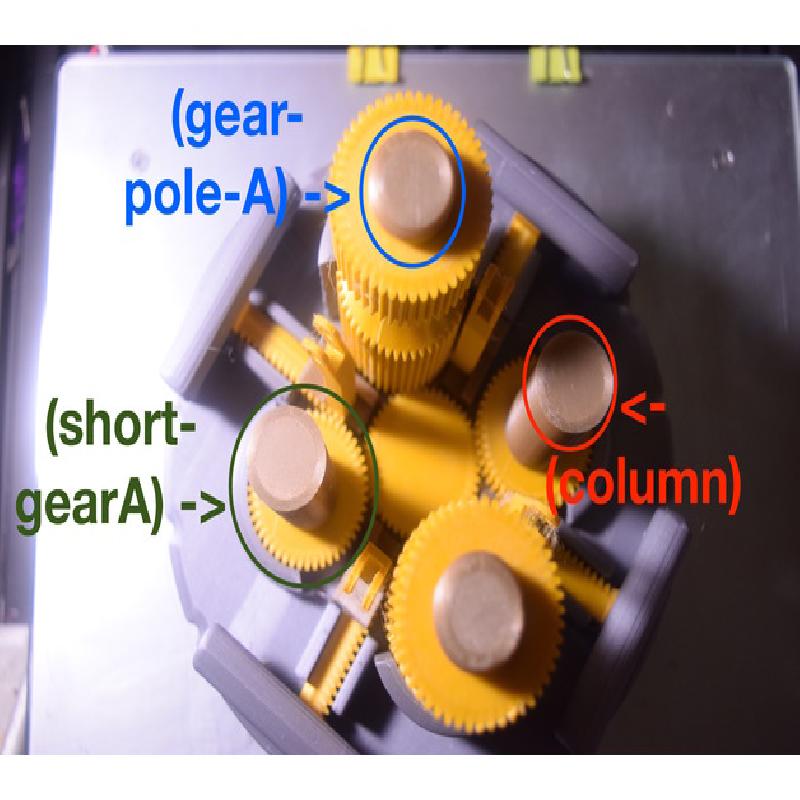

2 x gear-poleA.

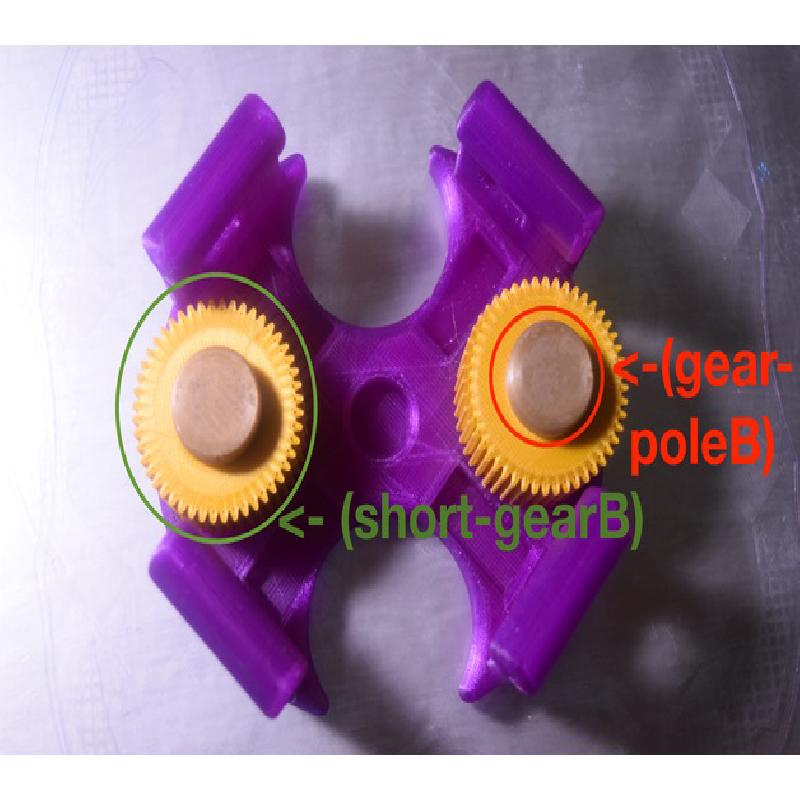

2 x gear-poleB.
2 x column.
4 x large-petal.
4 x small-petal.

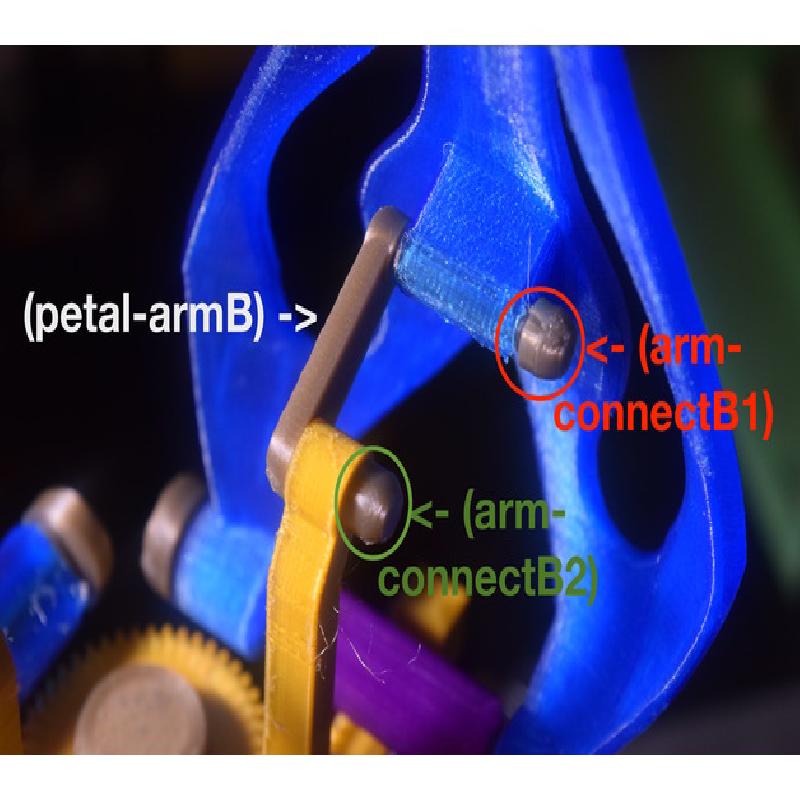

4 x petal-armA.
4 x petal-armB.

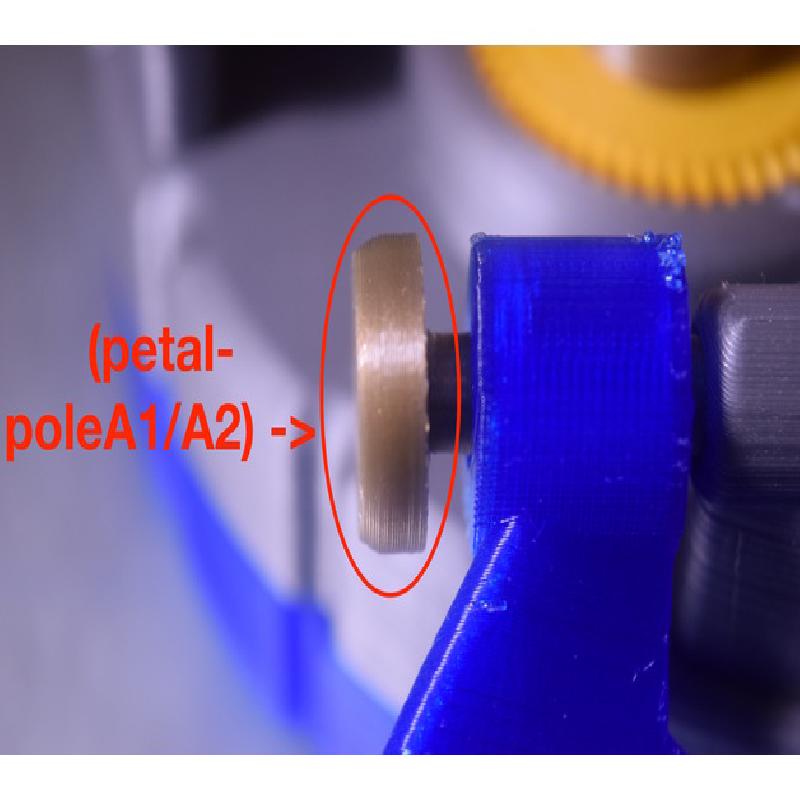

4 x petal-poleA1.
4 x petal-poleA2.

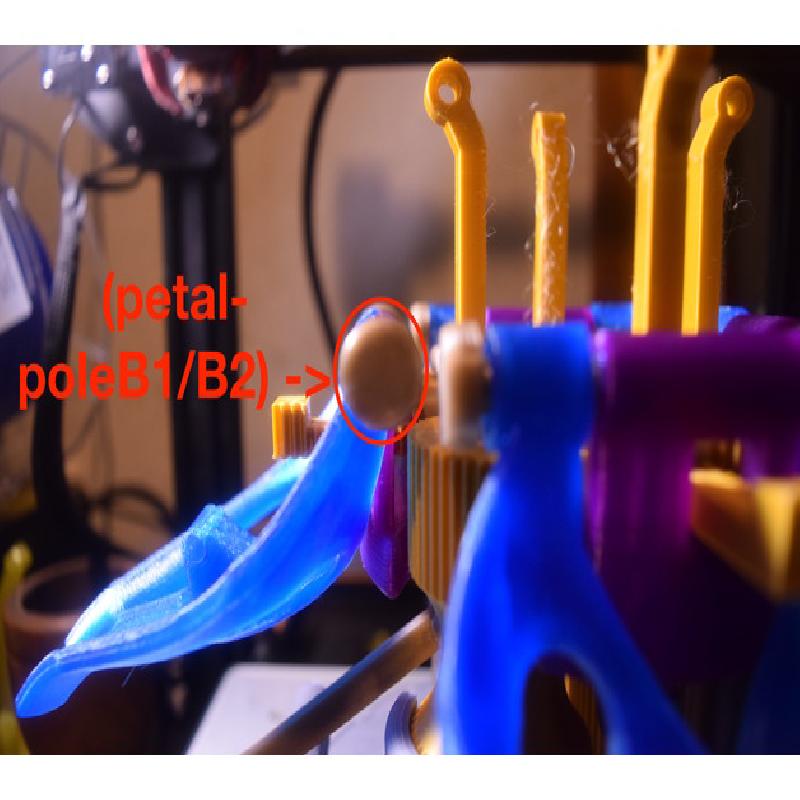

4 x petal-poleB1.
4 x petal-poleB2.
1 x mid-body.
1 x top-body.
