Soviet A-19 122mm gun - 28mm scale 苏联A-19 122毫米炮-28毫米
Soviet A-19 122mm gun - 28mm scale
Price£0 List:£0.35
Stand by Free Shipping(可下载)
SOLD0 [Comment0Article]
Soviet_A-19_122mm_gun_-_28mm_scale.zip Click to download Downloads: 0

- +
Add to Cart
In Stock:99
Seller:Model City 模型城
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

by deweycat, published

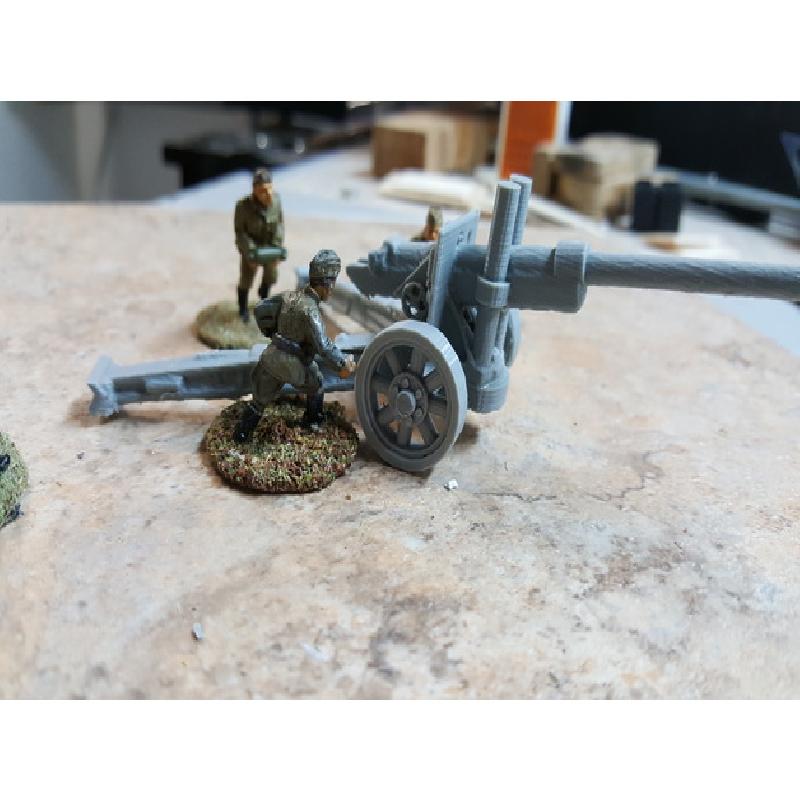

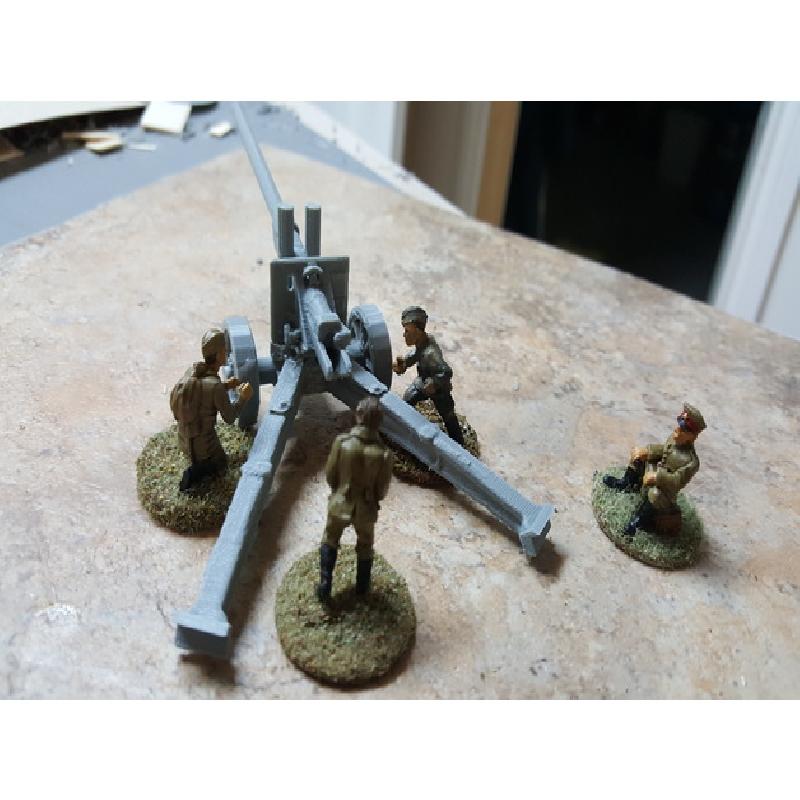

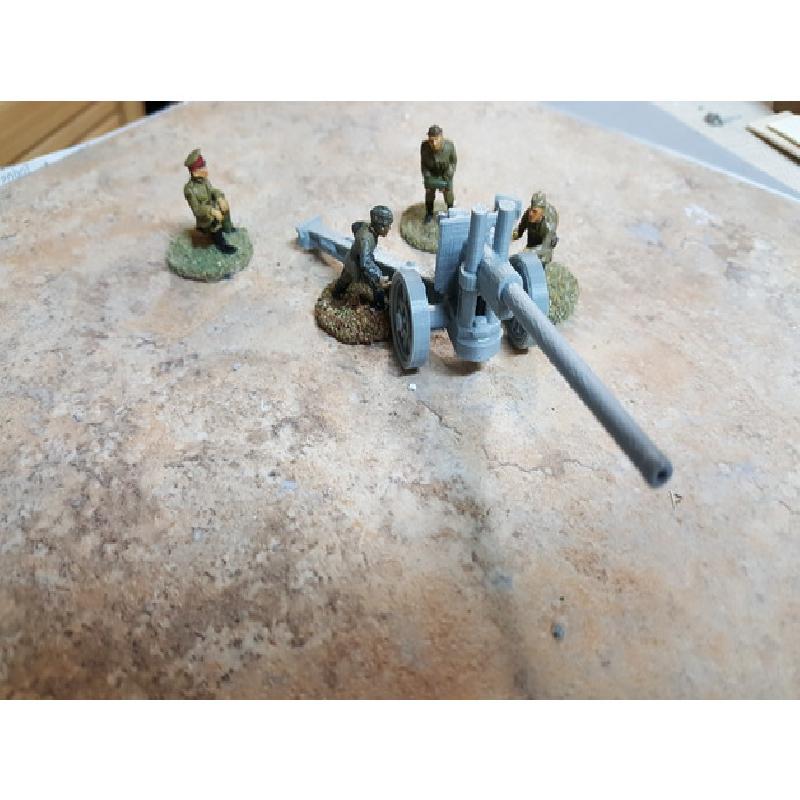

This is a 28mm scale (1/56th) model of the Soviet A-19 Model 1931 field gun gun. it is a rework of kpi1986's excellent file of the same gun.

The A-19 was the backbone of medium field artillery for the Red Army, and continued in use is different versions well into the Cold War. i did this up for use on the Bolt Action gaming table, where the gun is both a medium field gun as well as a heavy ATG.
https://en.wikipedia.org/wiki/122_mm_gun_M1931_(A-19)

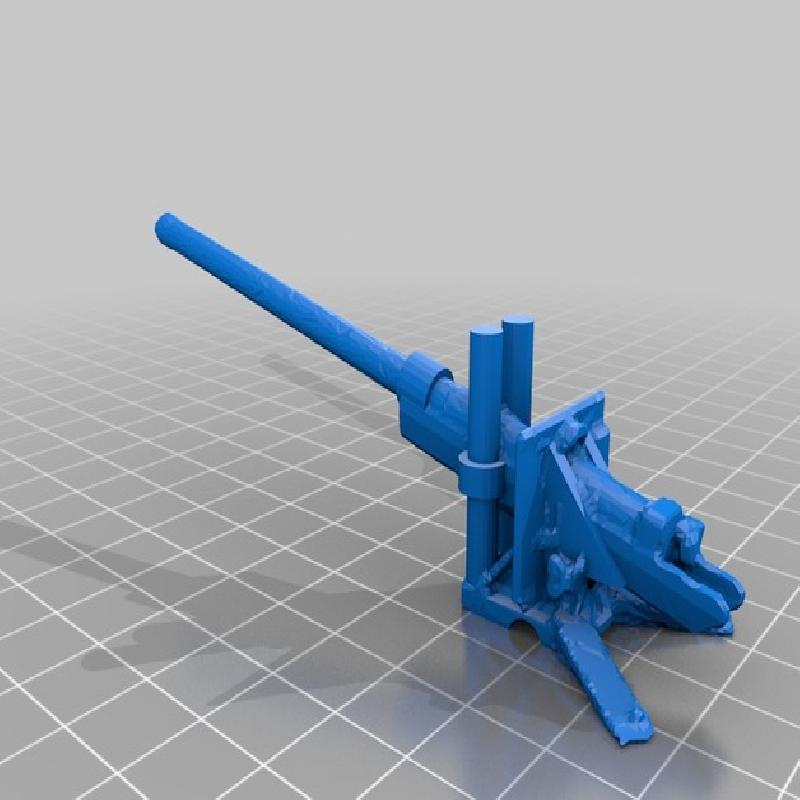

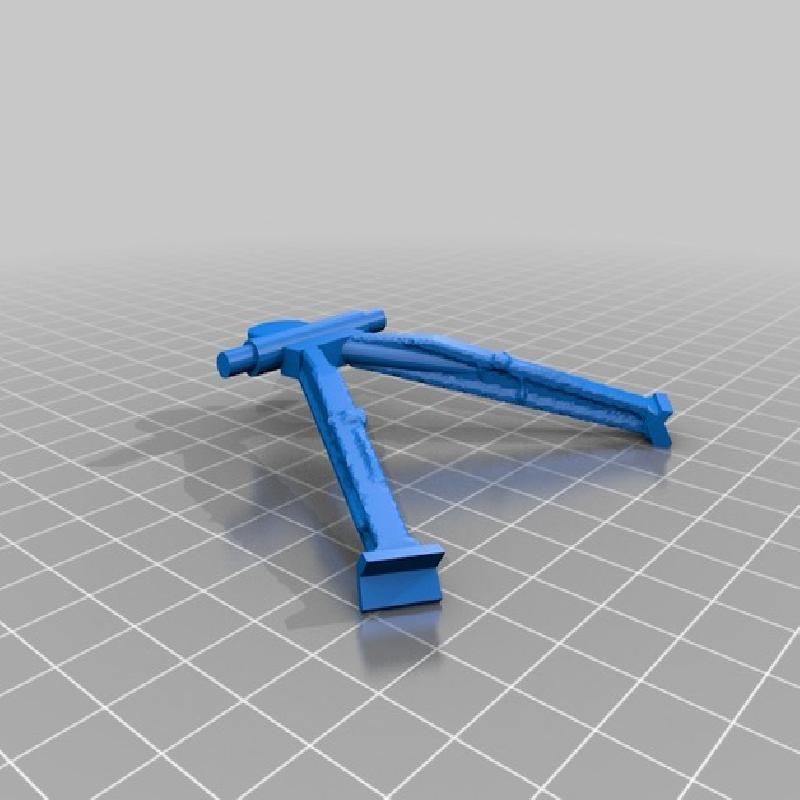

I took the original file, separated the gun barrel and breech area from the carriage. I created an axle and strengthened the vertical hydraulic recoil cylinders and the carriage itself; detailed the wheel hubs and tires, added a hand wheel on the right side of the gun (where an elevation wheel is located)  and modified the spades on the end of the gun trails.

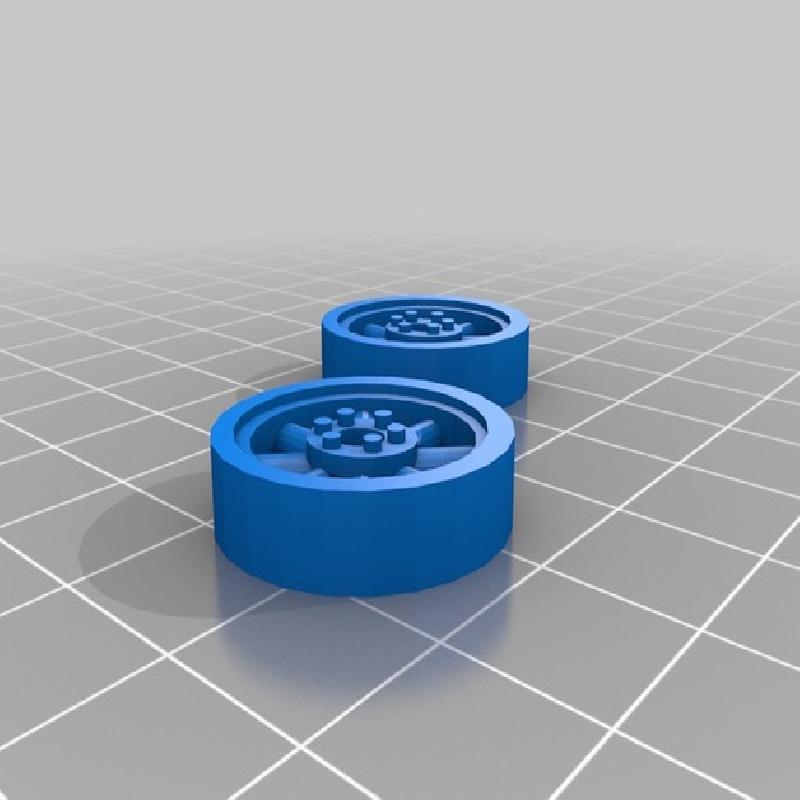

I printed this on a fine setting with rafts. As always, be careful removing the support material. you will find the wheels fit the hubs snuggly, so clean the wheel centre out. I glued the gun to the carriage with epoxy.
