Instructions
Drawn in Solidworks 2012 & 2013
Designed to be printed on UP! Plus in ABS.
Support is essential.
Settings used: 0.15mm layers, vent open, loose fill, 4 layer surface, supports 3mm^2 x 80 degrees
If you print these for use with Flames of War, scale to 187%
Part 2 now uploaded. Please note that both Pack2 and Pack2-part2 are required to get the full content.
pack2-part2-stl contains all the simple version stls, some extra variant stls, some corrected stls, and some new vehicles.
pack2-part2-x_t contains the new and corrected x_ts, plus any missing from part1.
Unzip the files into the same location that you unzipped Pack2.
3 vehicles will be overwritten: Su-85, SU-100, SU-122. ( A minor fix to the hull.)

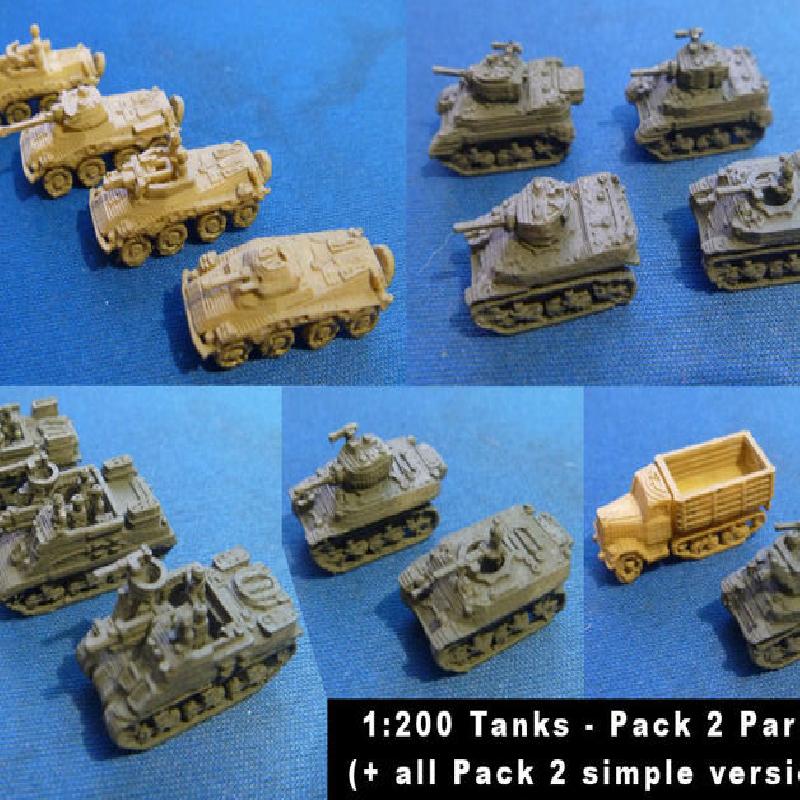

Pack 2 part 2:
UK:
M3A3 Stuart
M3A3 Stuart Recce
US:
M5 Stuart
M5 Stuart (full mudguards)
M5A1 Stuart
M5A1 Stuart (full mudguards)
M5A1 (late) Stuart
M5A1 (late) Stuart (full mudguards)
M5 Stuart Recce
M5 Stuart Recce (full mudguards)
M8 HMC
M8 HMC (full mudguards)
M7 Priest (early) (3 piece transmission, M3 suspension)
M7 Priest (mid) (3 piece transmission)
M7 Priest (late) (3 piece transmission)
M7 Priest (late) (cast transmission)
M7B1 (M4A3 hull, full mudguards)
Germany:
Sdkfz 234-1
Sdkfz 234-2 Puma
Sdkfz 234-3 (75mm L24)
Sdkfz 234-4 (Pak 40)
Opel Maultier
Opel Maultier (covered)
Pack 2:
US:
M4A1 early
M4A1-76W
M4A1-76W with .5 mg
M4A3-76W
GMC CCKW-252 SWB (Artillery tractor, short wheelbase version)
GMC CCKW-252 SWB with winch
GMC CCKW-253 LWB (General service long wheelbase version)
GMC CCKW-253 LWB with winch
M2A1 halftrack
M3A1 halftrack
M3A1 halftrack with winch
M16 AA halftrack
Lend Lease:
(Many of these also for US and Commonwealth use.)
M4A2-76W (Russian use only, essentially.)
M5 halftrack with roller
M5 halftrack with winch
M5A1 halftrack with roller
M5A1 halftrack with winch
M9A1 halftrack with roller (Artillery tractor version)
M9A1 halftrack with winch
M3A1 scout car
SU-57 halftrack (T48 GMC, Russian use only)
Studebaker US-6
Studebaker Katyusha
M17 AA halftrack (Use M16 turret)
Russia:
BA-64B armoured car
T-70 light tank
SU-76 early
SU-76 late
T-34-76 hex turret early
T-34-76 hex turret late
T-34-85 early
T-34-85 'spider' style wheels
KV-1B
KV-1S
KV-85
KV-2
IS-1
IS-2 early ("broken nose")
IS-2 late
IS-3 (also alternate turret with DSHK mg)
ISU-122
ISU-152
SU-85
SU-100
SU-122
Germany:
Hetzer
Kubelwagen (covered)
Opel Blitz
Opel Blitz (covered)
The new Sherman parts can of course be mixed and matched with the existing Pack 1 components to produce most Sherman variants. (Excepting HVSS and 105mm versions which will be in Pack 3...)
