Made for a school project to gain experience with SolidWorks.
Model is mostly freestyled with some basic biplane pictures as reference.
SolidWorks files are included

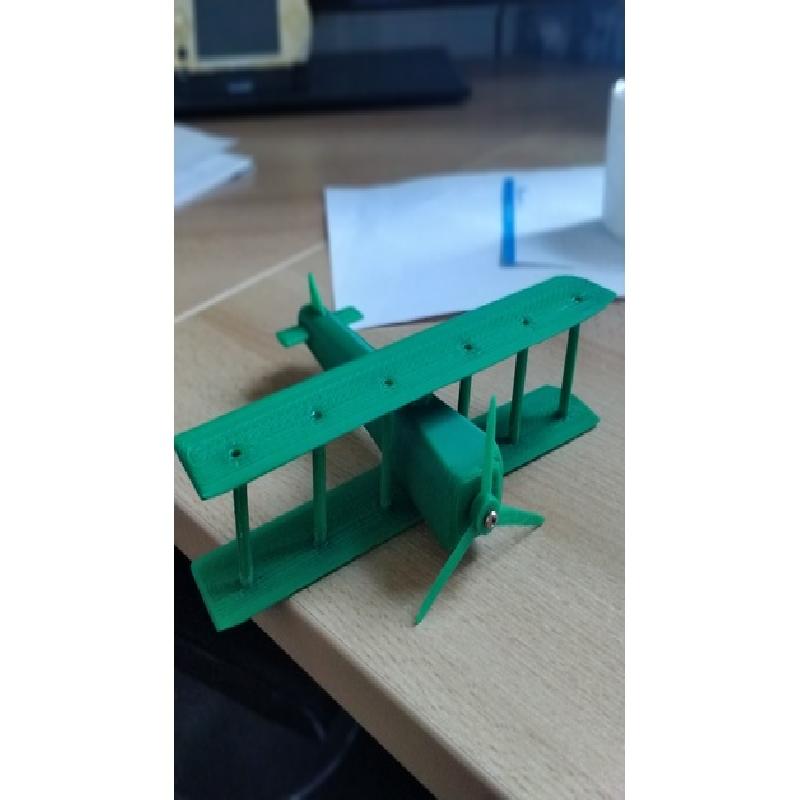

I printed it at 80% scale on a Anet A8. The big parts with 1 mm nozzle and 0.5 layer the rest with 0.4 mm and 0.1 layer.

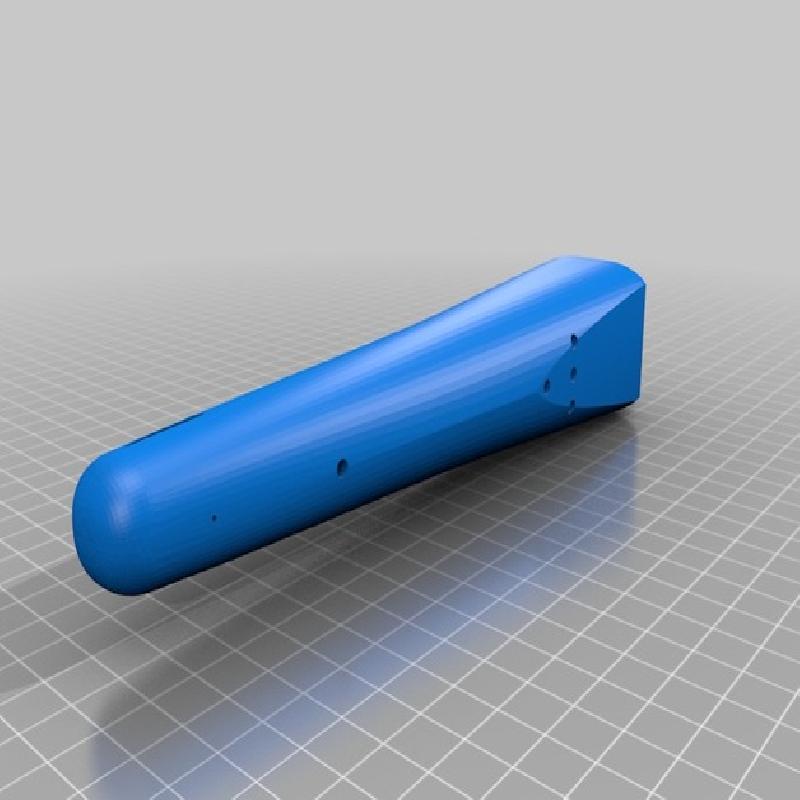

Best is to print the fuselage standing upright the rest laying flat.
Make sure you use skirt or brim for the small parts had some trouble getting them to stick to the headbed without.
Printer Brand:
MK3
Printer:
Prusa i3
Rafts:
No
Supports:
No
Resolution:
0.5 & 0.1
Infill:
10%

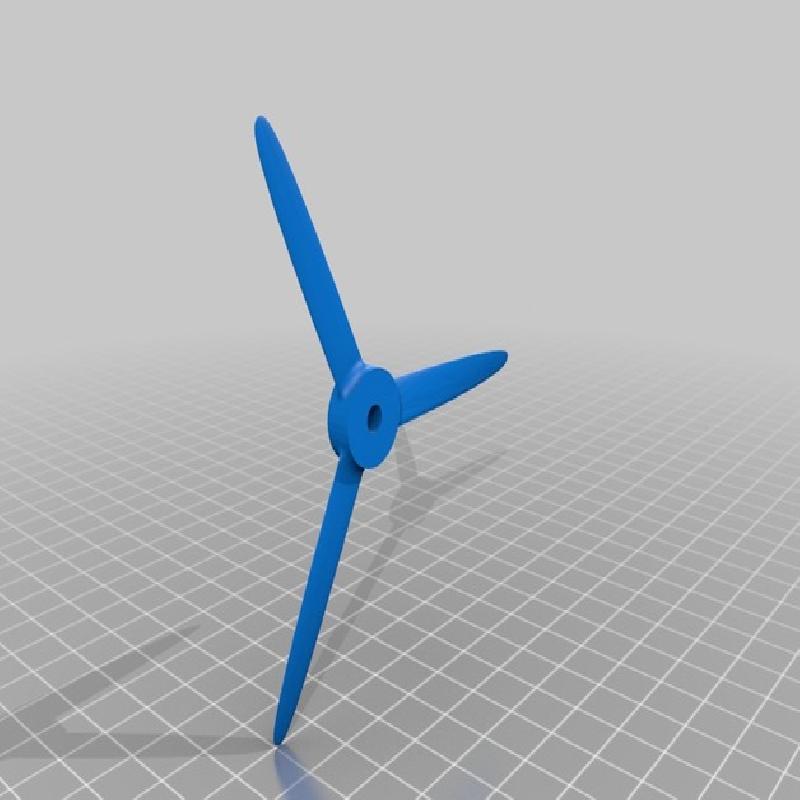

The propellor and bottom wings can be screwed, for the connection between both wings i suggest using epoxcy.
