More files such as support-less and source files are in the .zip!

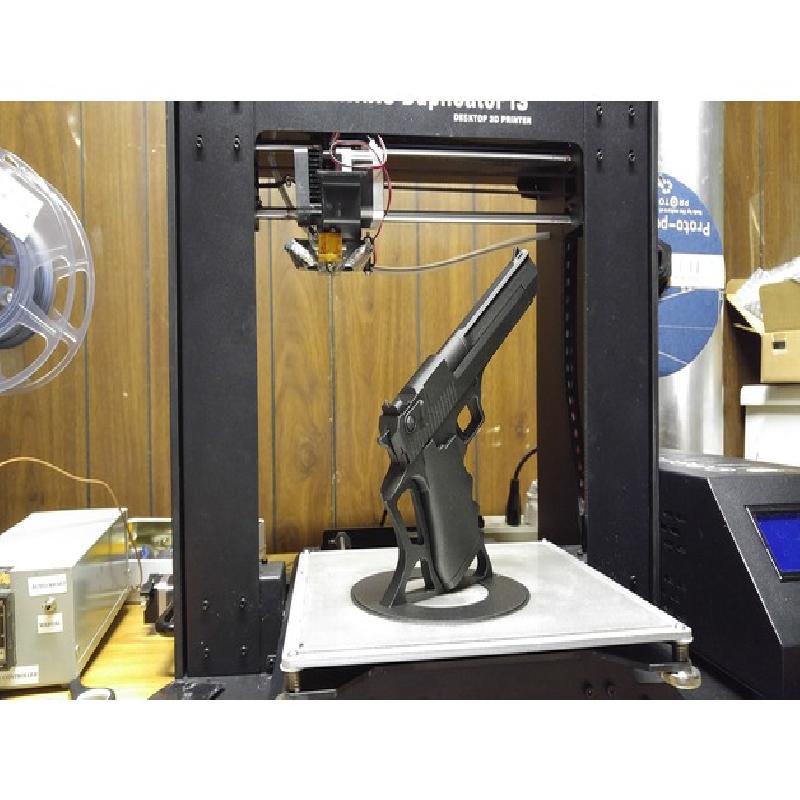

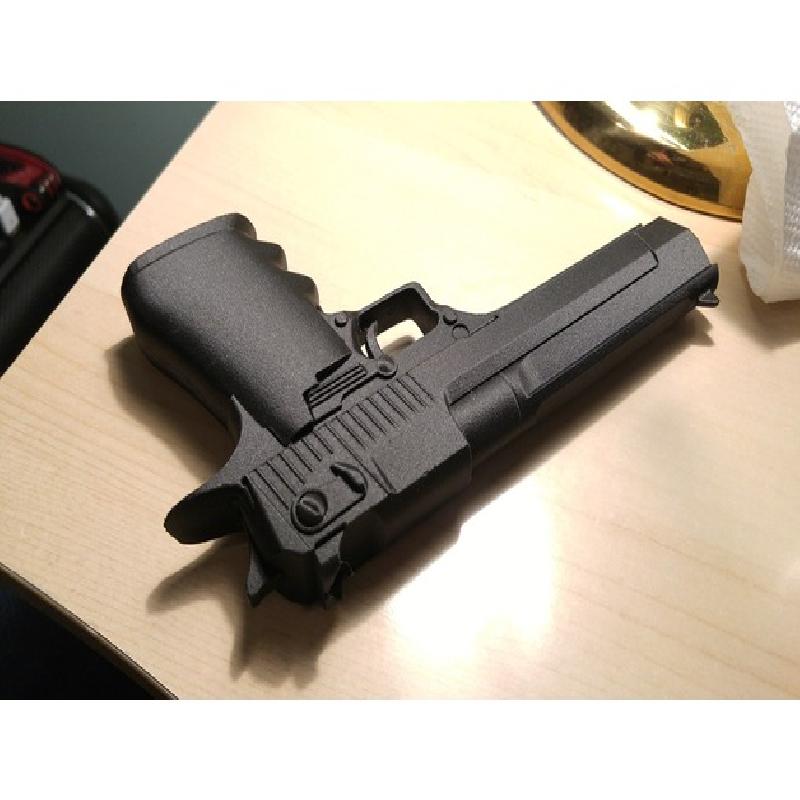

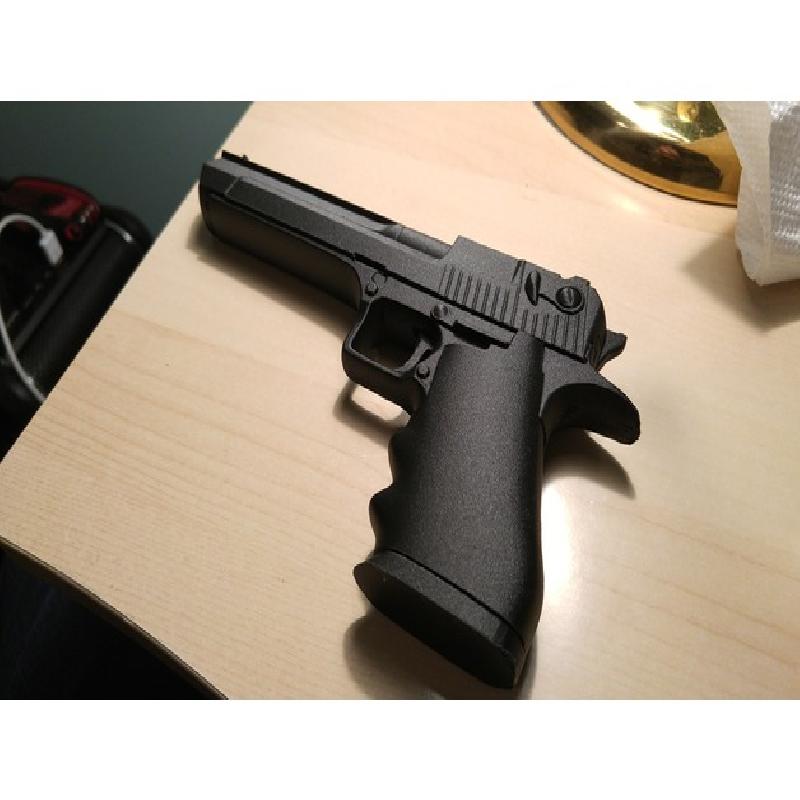

Printed first try for me in carbon fiber, but print at your own risk!
STLs and Source brought to you by : https://www.ebay.com/sch/rapidlyprototyping/m.html
Upgrade your y-axis carriage for better leveling experience! I3 and I3 PLUS only.
IMPORTANT, maybe : There is floating geometry inside I just noticed, but it printed just fine for me somehow without supports inside. Ideally, you would use the splice view in S3D and add supports to the back of the barrel (pictured in one of the images). Trigger needs supports too more details in the notes below.

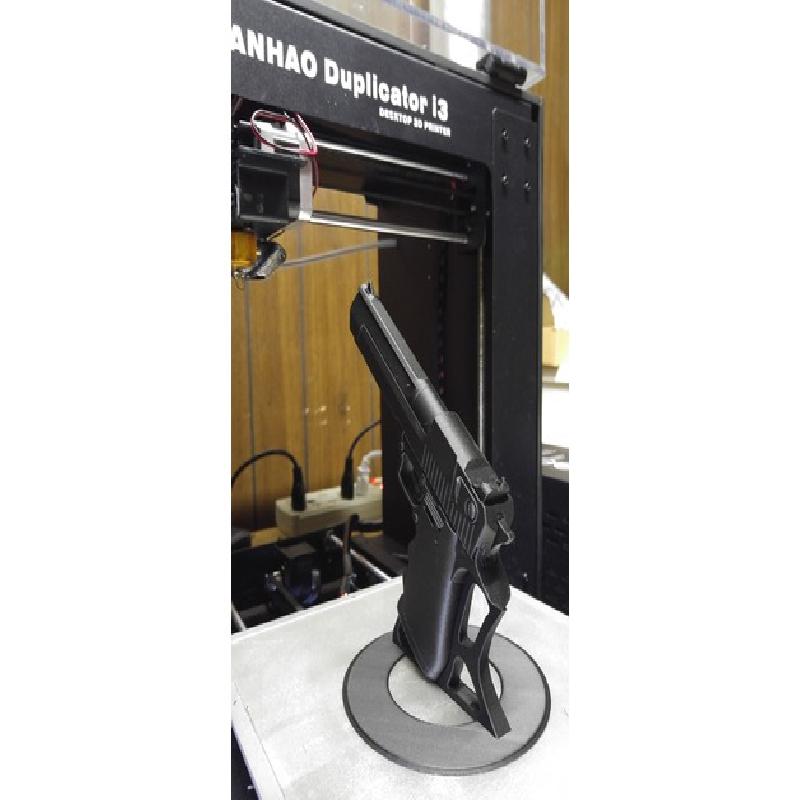

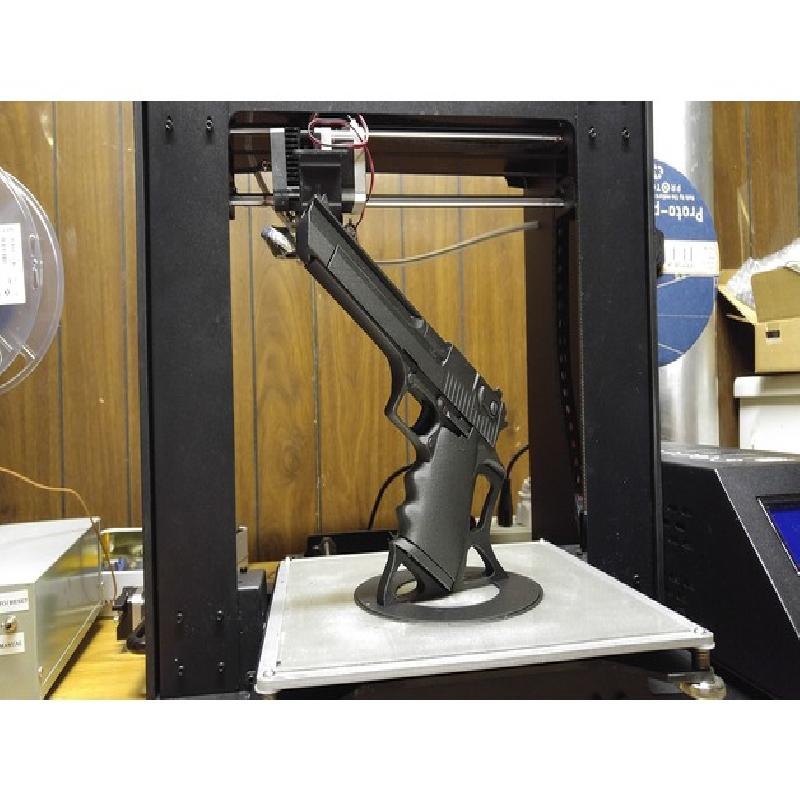

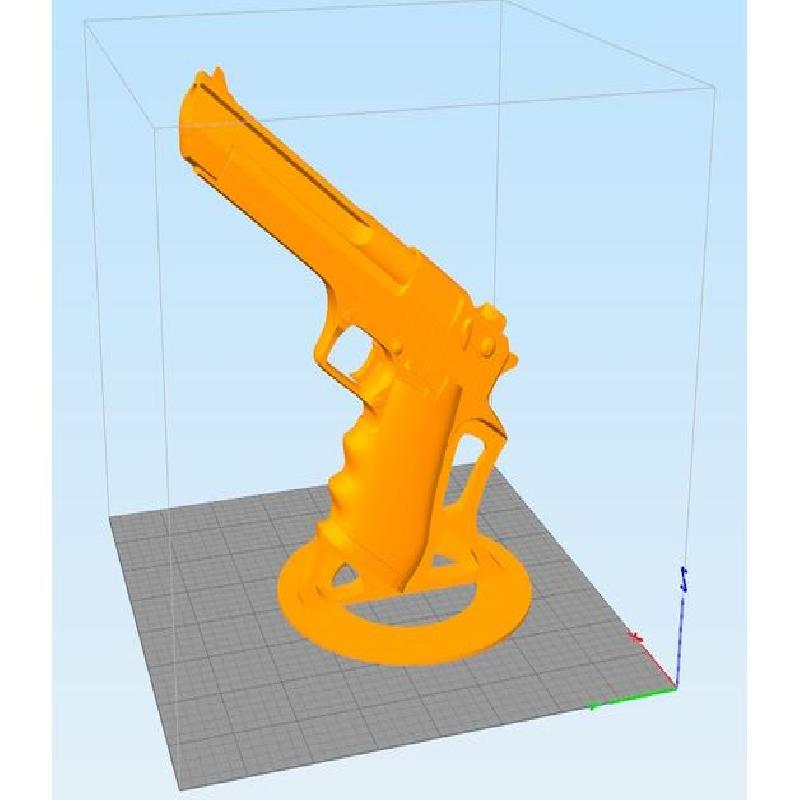

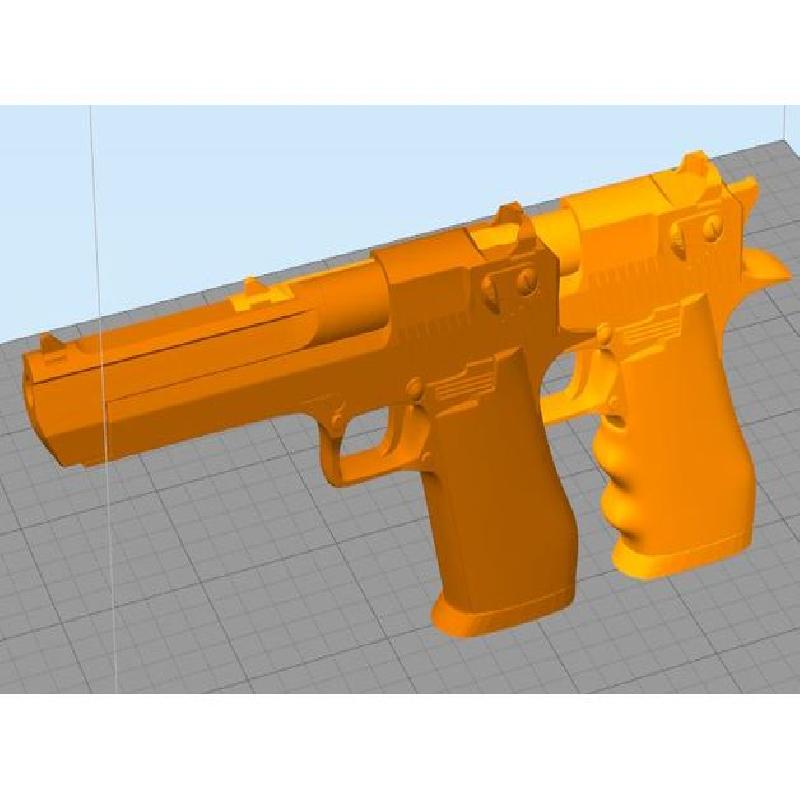

35 degrees is the tilt.

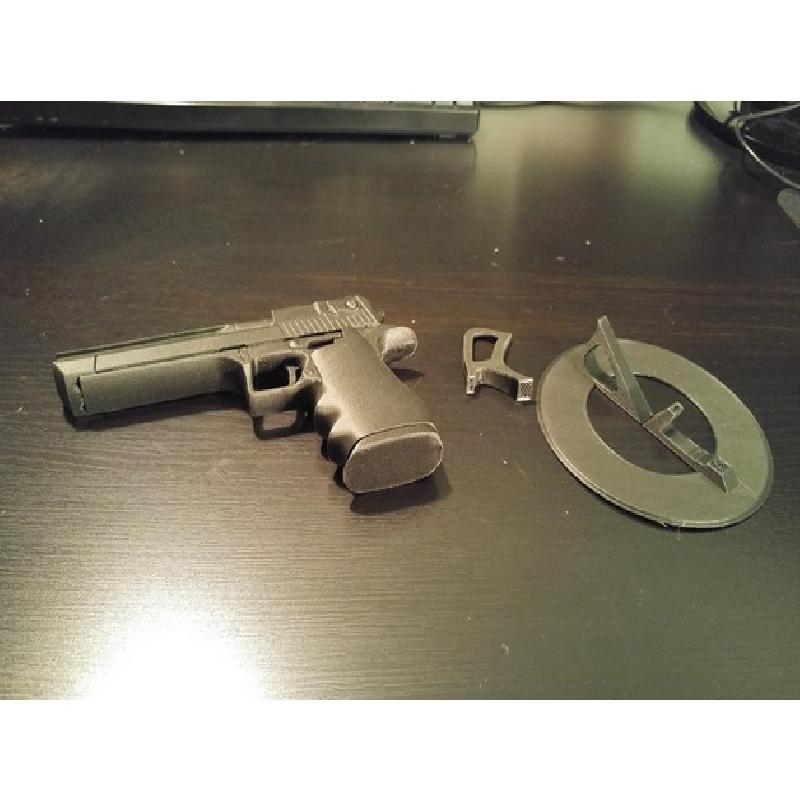

The scale shown is about 65% of full scale, but its a nice size fits the hands ok. Full scale is 270mm in length.
Printer Brand:
Wanhao
Printer:
Wanhao Duplicator i3 V2
Rafts:
No
Supports:
Yes
Resolution:
0.12
Infill:
30%
Notes:
Carbon Fiber HTPLA Print settings : https://imgur.com/a/cae7p
No changes to e-step, jerk, or accel on this actual machine.
The trigger needs to be supported! I had to change upper and lower separation layers to 0 for supports to put enough material in there just to be sure, and 0.40 horizontal separation.

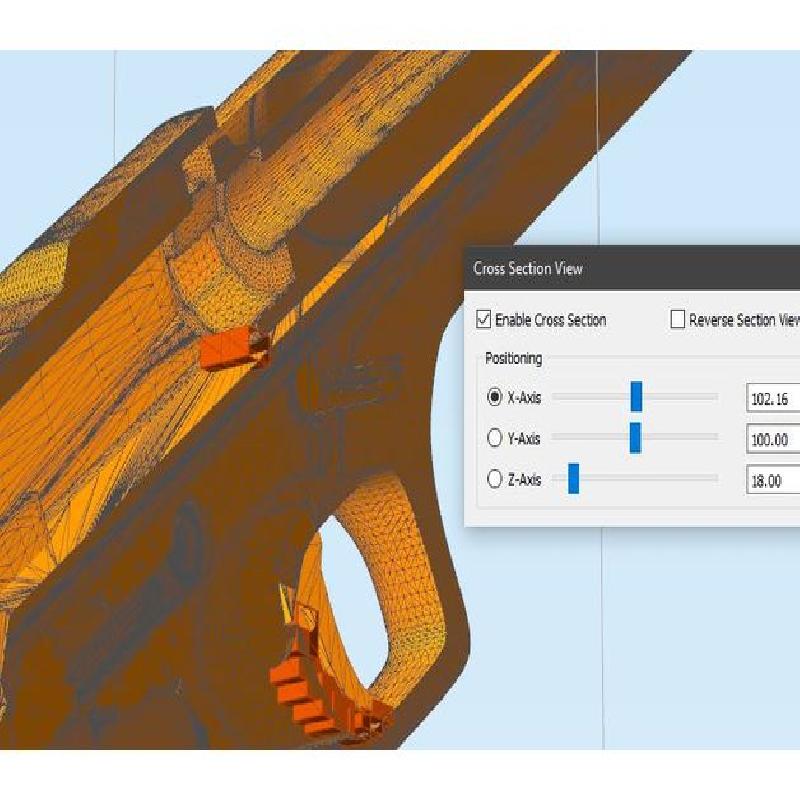

Also optional, but you should support the interior right where the barrel starts, use the splice view mode to see it. (See spliced picture w/ support) Prints fine without this support tho. The model is not fully solid, so if you are doing different orientations check the interior cross section and add supports where necessary
