by JohnMion, publishedNov 3, 2017

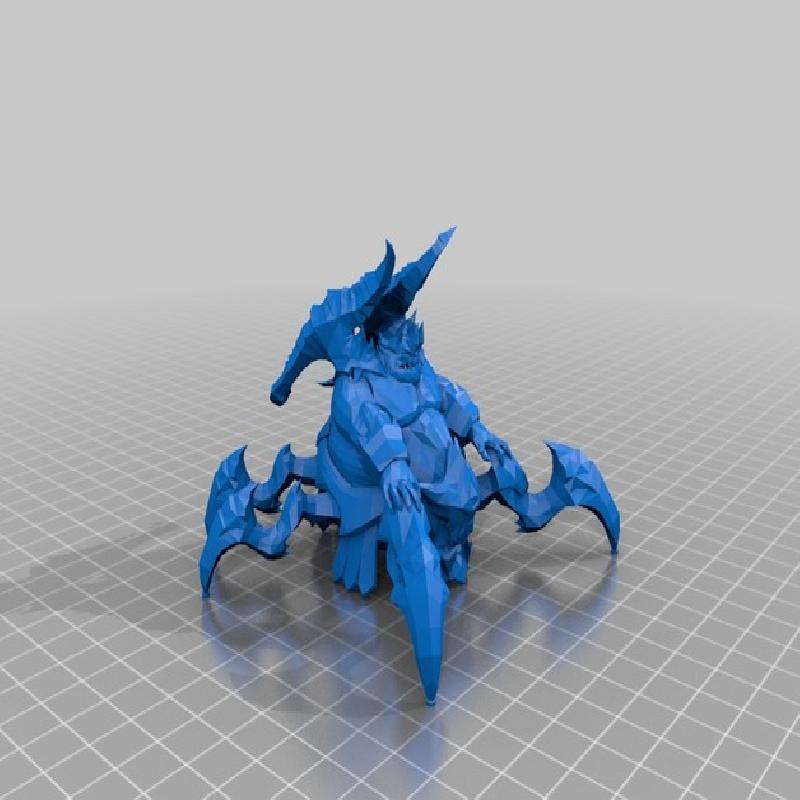

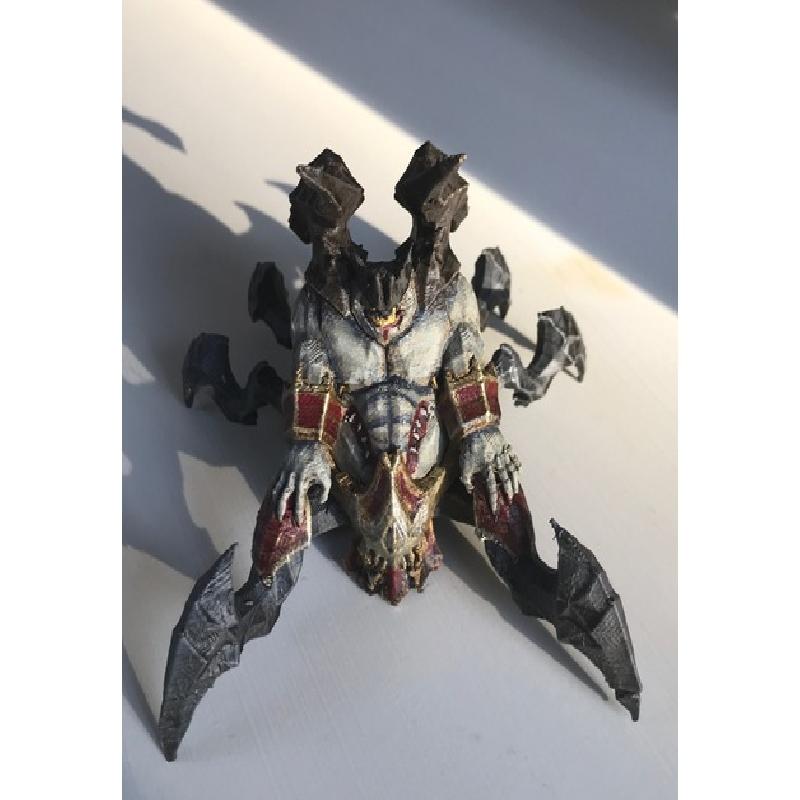

This is Azmodan - the Lord of Sin - one of the main antagonists in Diablo III.

This version of the Azmodan model is out of Heroes of the Storm and it has been simplified for relatively easy 3D printing.

Print Settings

Printer Brand:

FlashForge

Printer:

Finder

Rafts:

Yes

Supports:

Yes

Resolution:

0.18

Infill:

25%

Notes:

Print this with linear supports. Any good slicer should be able to handle it and you should come out with a decent print without too much excess filament to peel off. (The supports under the arms probably being the exception to that.)

Post-Printing

Remove the supports and then sharpen the feet with a model knife and a file.

How I Designed This

This is a slightly modified version of the Azmodan model out of Heroes of the Storm.

I retrieved the extracted model from this excellent repository:
https://drive.google.com/drive/folders/0B5j1iQ1NUCTcak1KRU8zWFZpQjQ

I then modified the model in Blender, fixed the mesh and finally simplified it in MeshMixer. The Blender model can be found as a file for downloading among the Thing Files.

As opposed to other versions I've seen I've put his hands on his knees to reduce the overhangs and need for supports. I've also had to fix the tips of his legs/feet with some built-in supports, as my first version of this model failed to print the feet (that I then printed separately). A slight readjustment of the model in TinkerCad to finish it off and his loin cloth is now touching the ground in most places which should make it print better than when I printed it.
