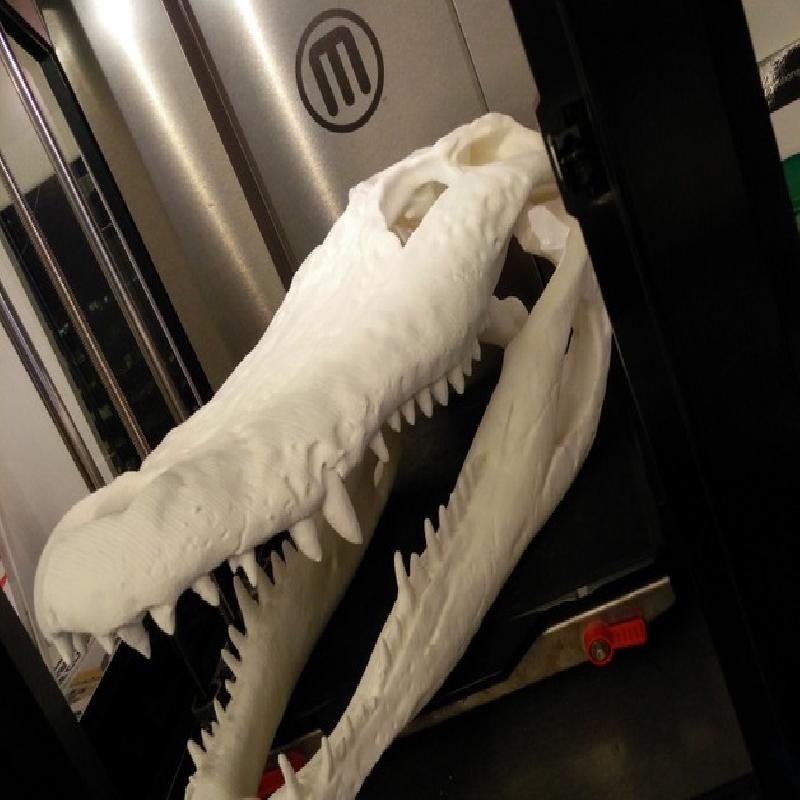

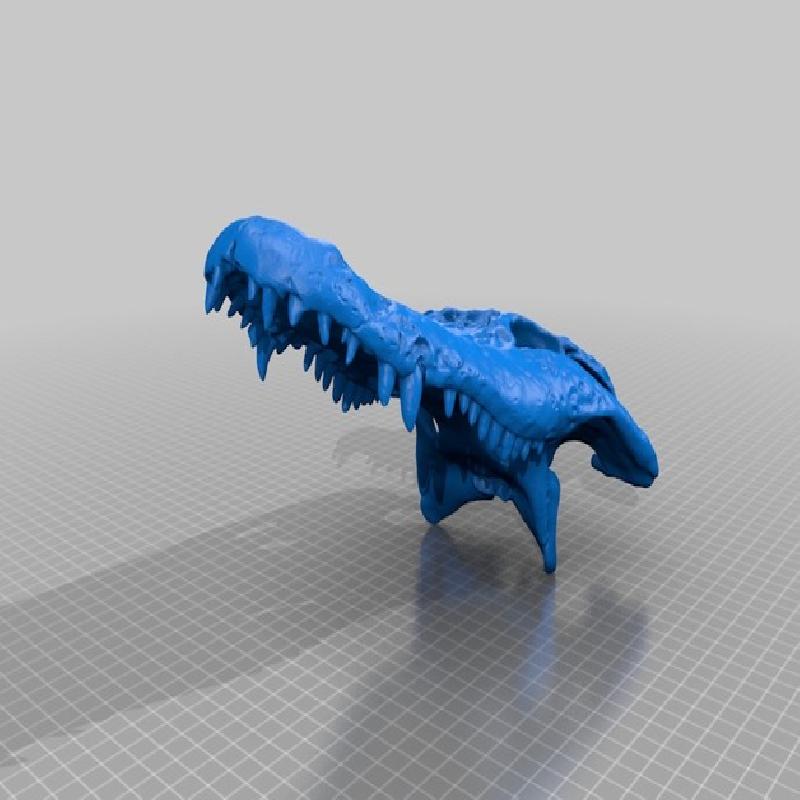

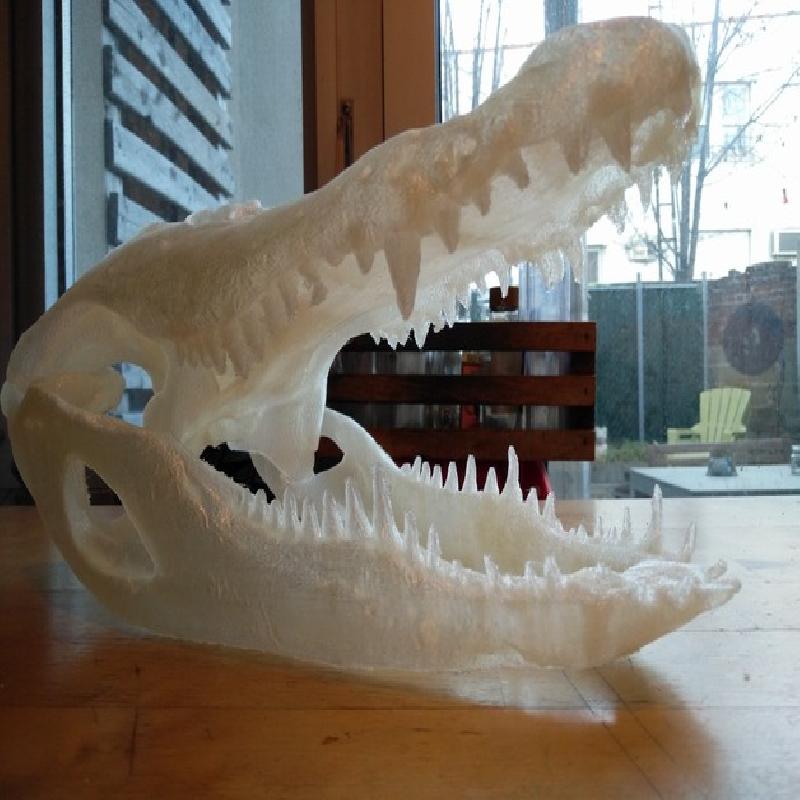

This alligator skull is based off user AlexJDrew's alligator skull model, and features a snap together jaw hinge as well as refinements to help with print-ability. Jaw hinge features were sculpted in Autodesk Meshmixer along with the addition of skull details. 3 models are provided (only Rep 2 currently):
Normal scale set optimized for printing on a MakerBot Replicator 2
50% scale set optmized for printing on a MakerBot Mini
170% scale version optimized for printing on a MakerBot Z18 (Awesome scale)
Printer: MakerBot
Rafts: Doesn't Matter
Supports: Doesn't Matter
Resolution: Up to you
Infill: Up to you
Notes:
Rep 2: Print lower skull with no raft, no supports. Print upper skull in exact position of .STL file, but turn rafts on and support on at an angle of 70 degrees. Also be sure to toggle on breakaway supports in MB desktop Rep Z18: Print with supports set to 70 degrees and rafts on for both upper and lower skull parts. Be sure to toggle breakaway supports in MB desktop. Rep Mini, 50%: Print in place per .STL files. No supports for either part
