by Dowzie, publishedAug 30, 2017

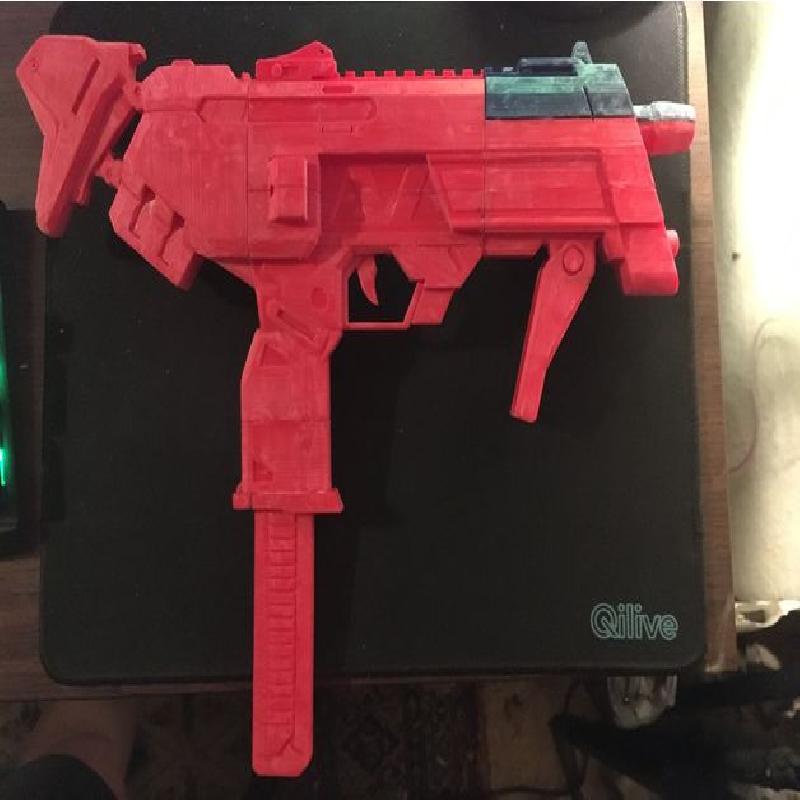

It's a remix of the awesome job made by carloemil for the Sombra submachine gun to includ LEDs in it. Almost all pieces get remixed for this led version.

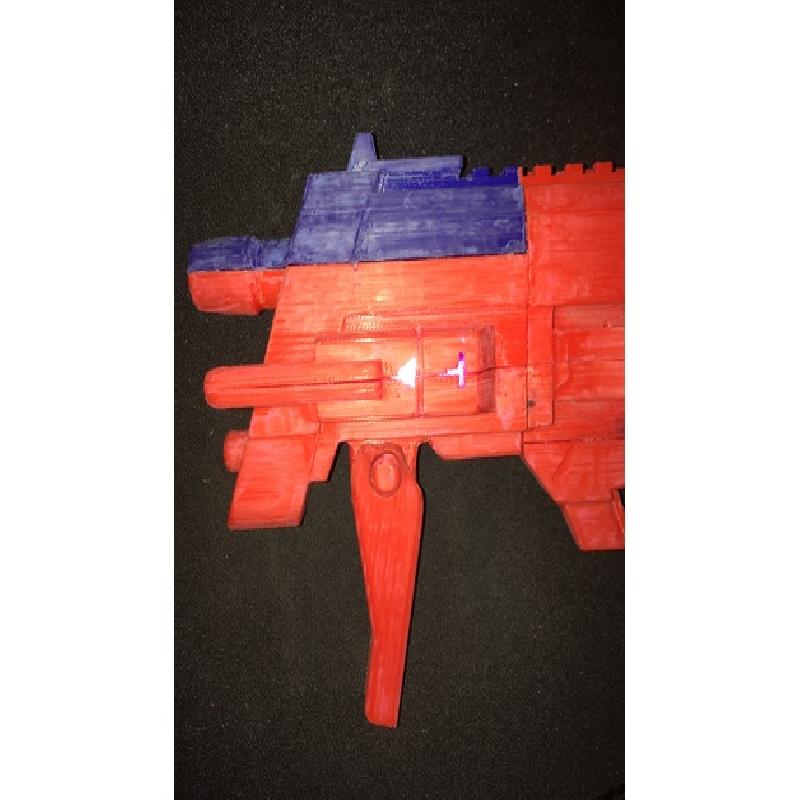

You can put two leds on the left side to get the symbols illuminate and one in the barrel. Of course I add some space to put all wires you need and battery holder (in the handle) to make lights come to life. Check the options section to know your possibilities.

The three white LEDs I used need one CR2032 battery to work

The holes allow you to put up to:

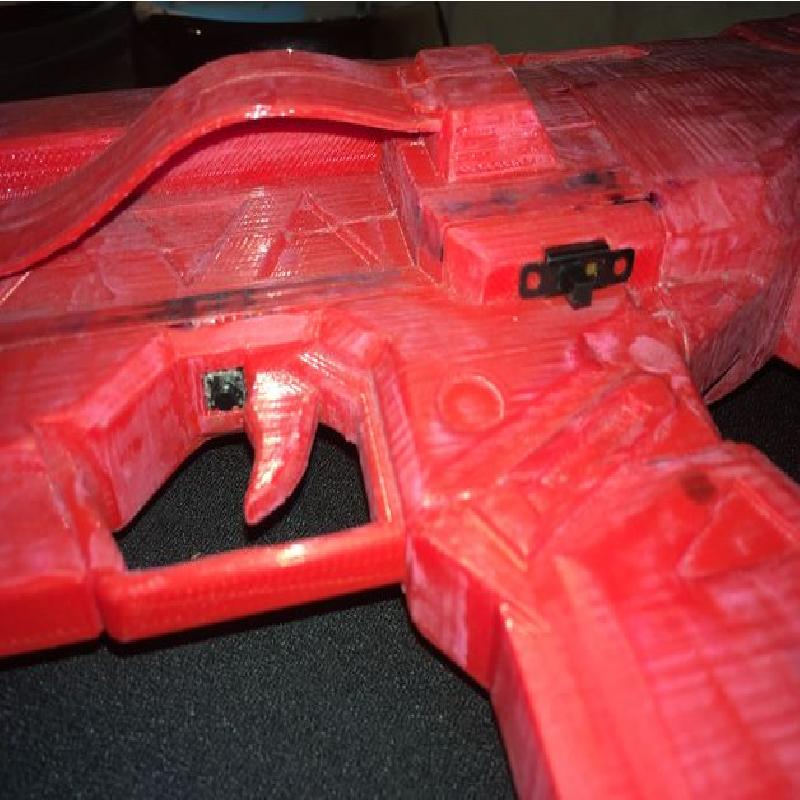

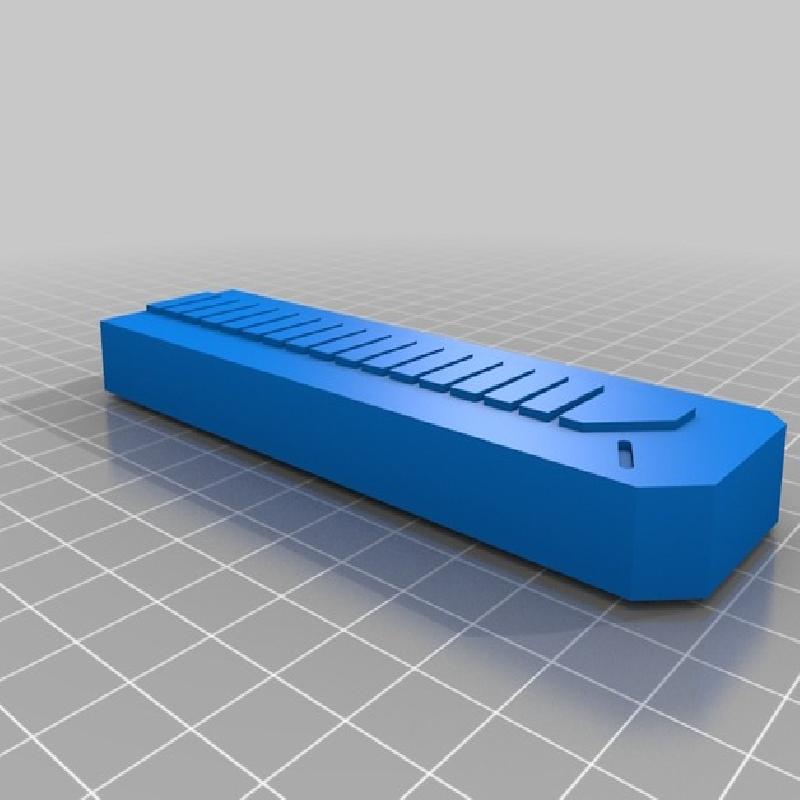

• 1 slide switch on/off (size: 5,5 x 4 x 6 mm / 0,22 "x 0,16"x 0,24 "(L W H) for the two leds on the left
  and

• 1 mini push-button (size: 6 x 6 mm) for the led in the barrel

Print Settings

Printer Brand:

LulzBot

Printer:

Mini

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.14

Infill:

20

Notes:

This one was printed in PLA

Post-Printing

To add lights in my prop I make a very simple circuit with two switches, three LEDs, one CR2032 battery and obviously some wires.

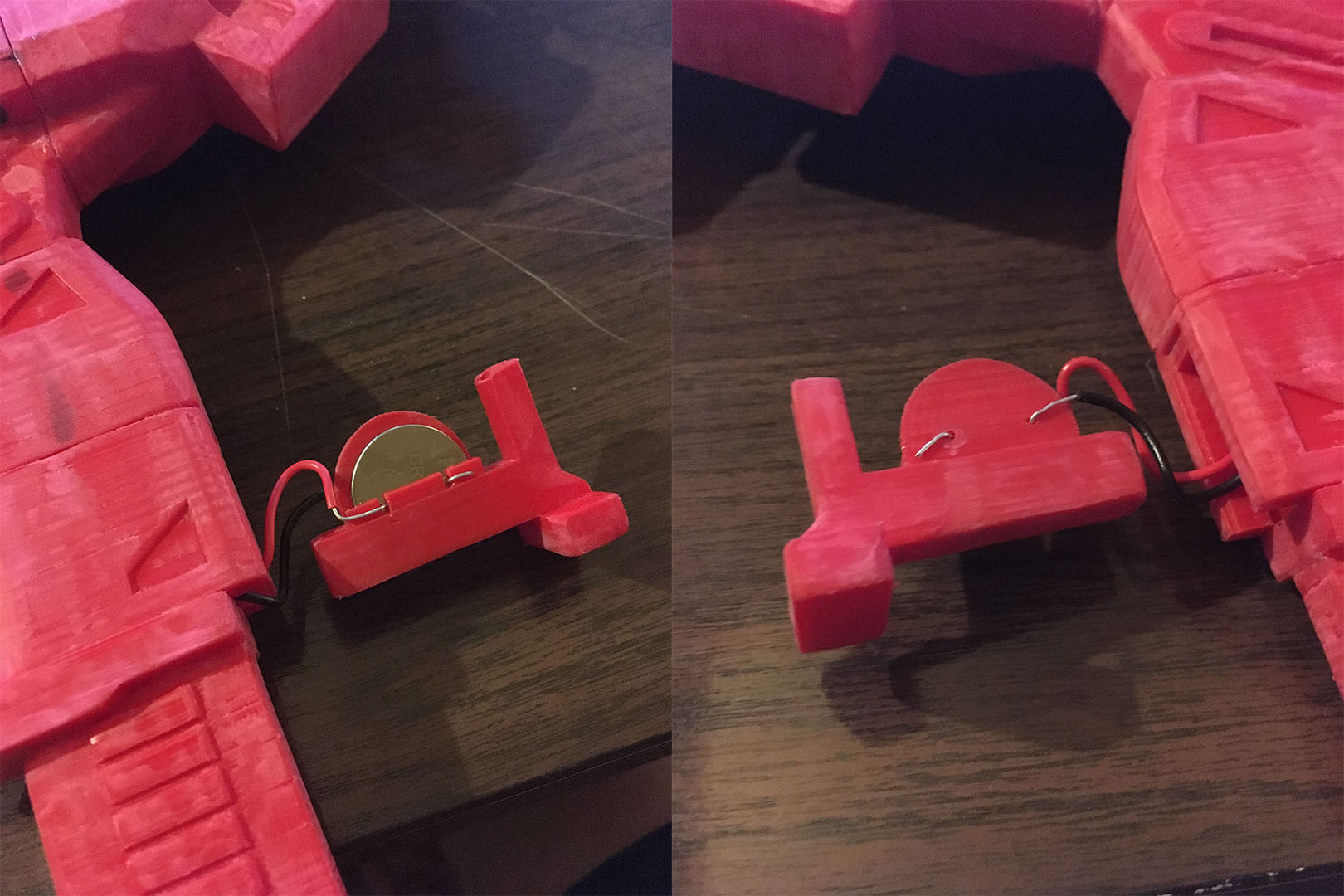

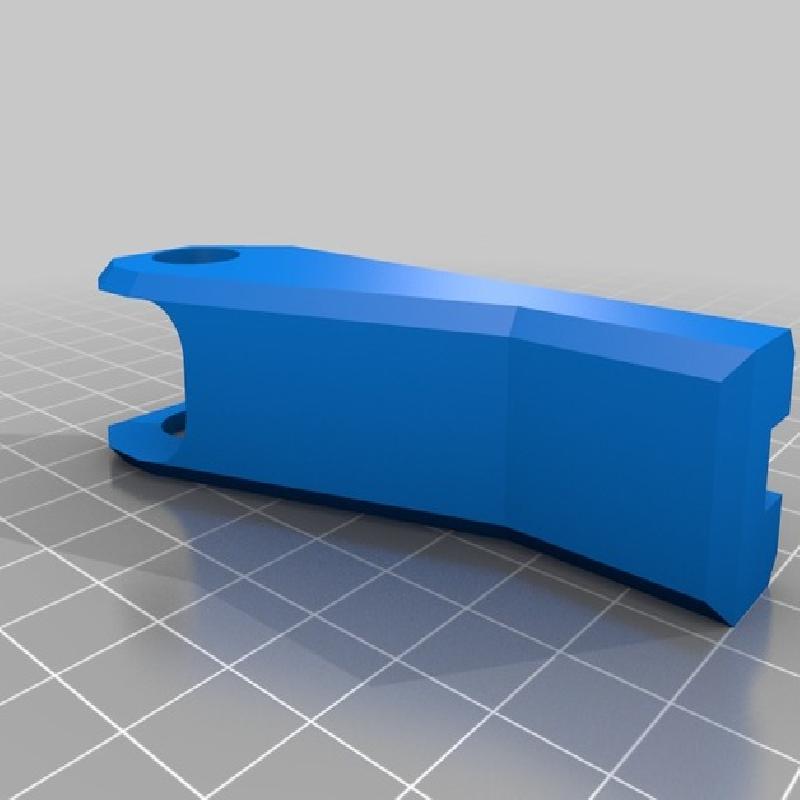

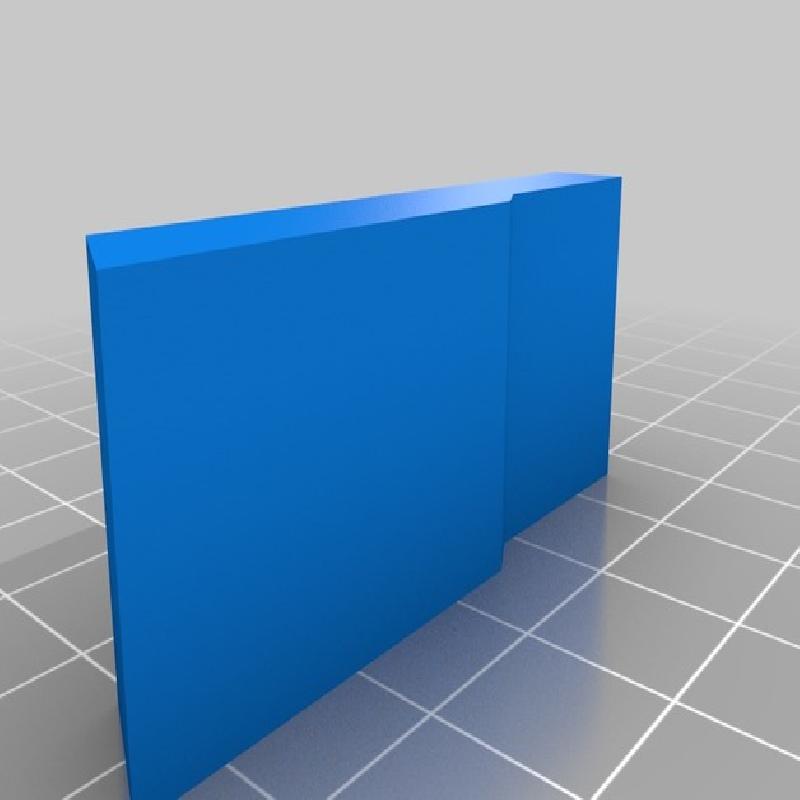

The battery holder "sombra_handle2_b" just slide in the "sombra_handle2_a". Don't sand too much to avoid it from falling when moving.

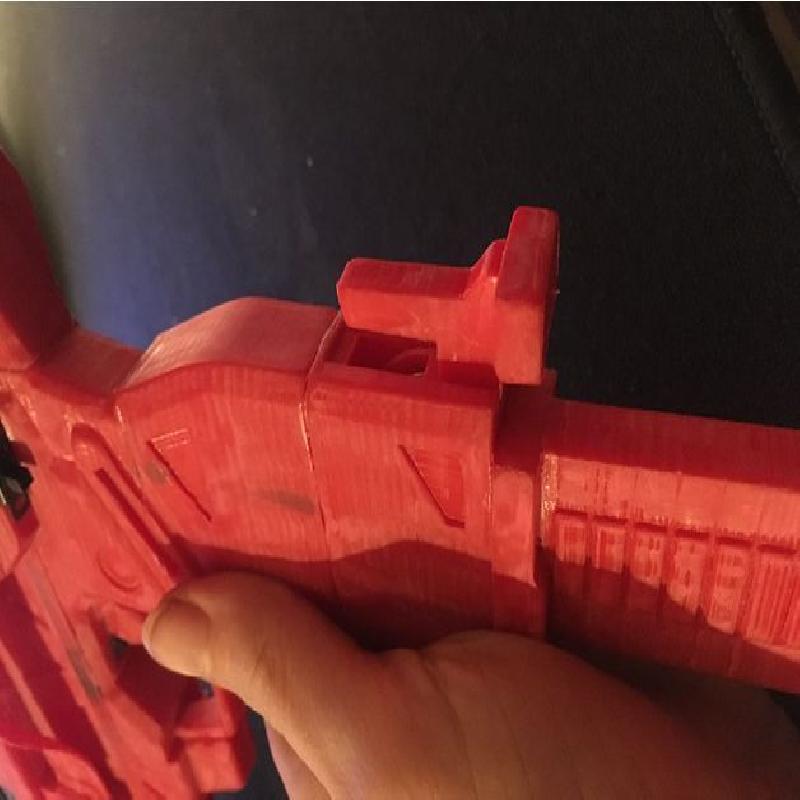

Mine was polish with a rotary tool and sanding with 600 sandpaper. it's very smooth and don't fall even when I shake the gun so it's gonna work for conv floor and some Sombra moves.

How to fix wires on the battery holder, no solder need to save space

Options

My remix give you some choices.

• First you can add some LEDs in the smg obviously

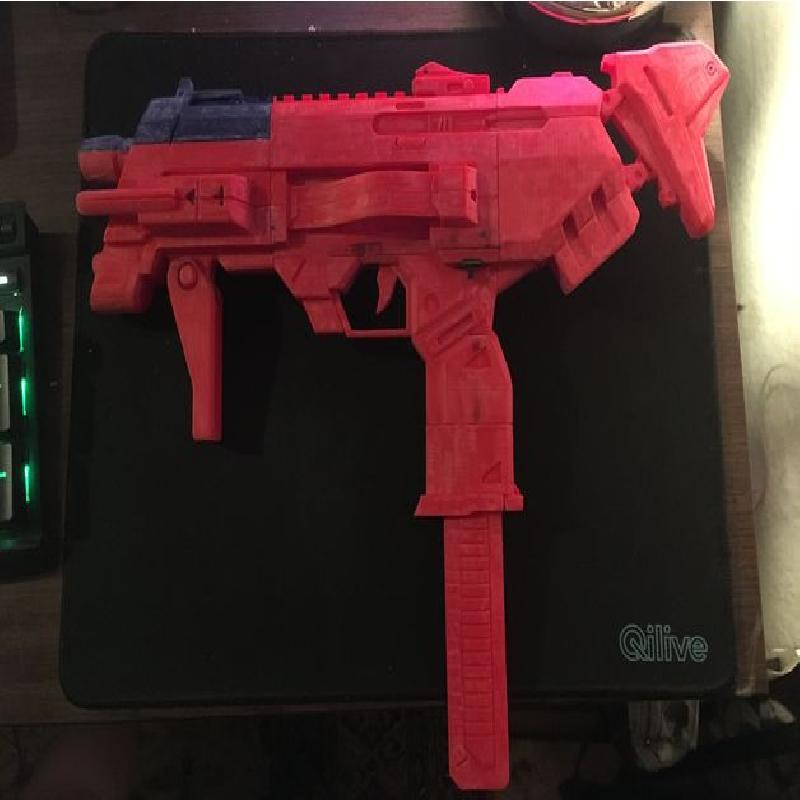

I print the 3 LEDs x 2 switches version for my cosplay, but I also remix a 2 LEDs x 1 switch version if you don't want light in the barrel.

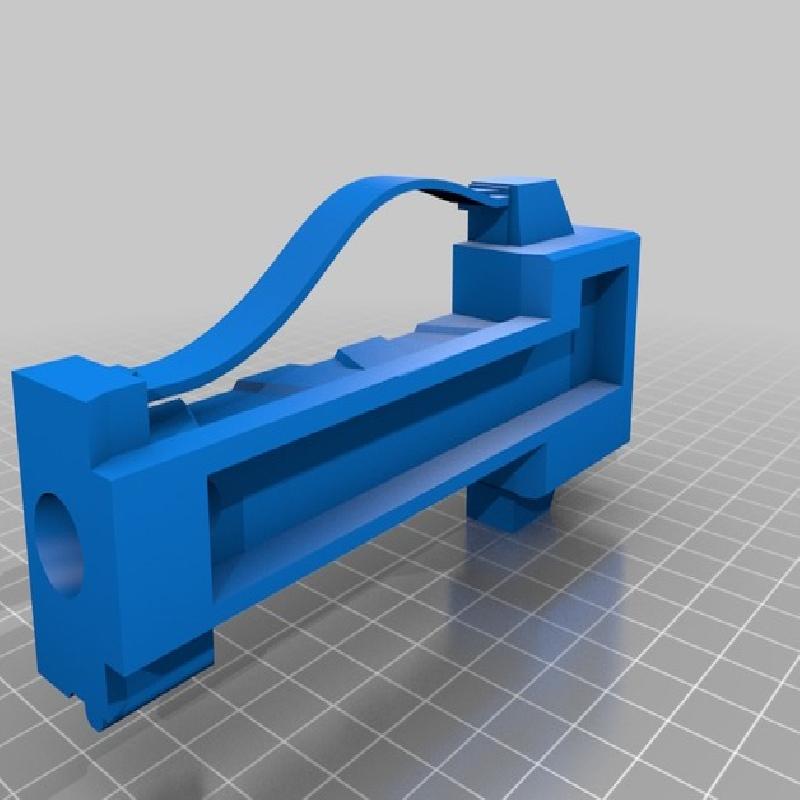

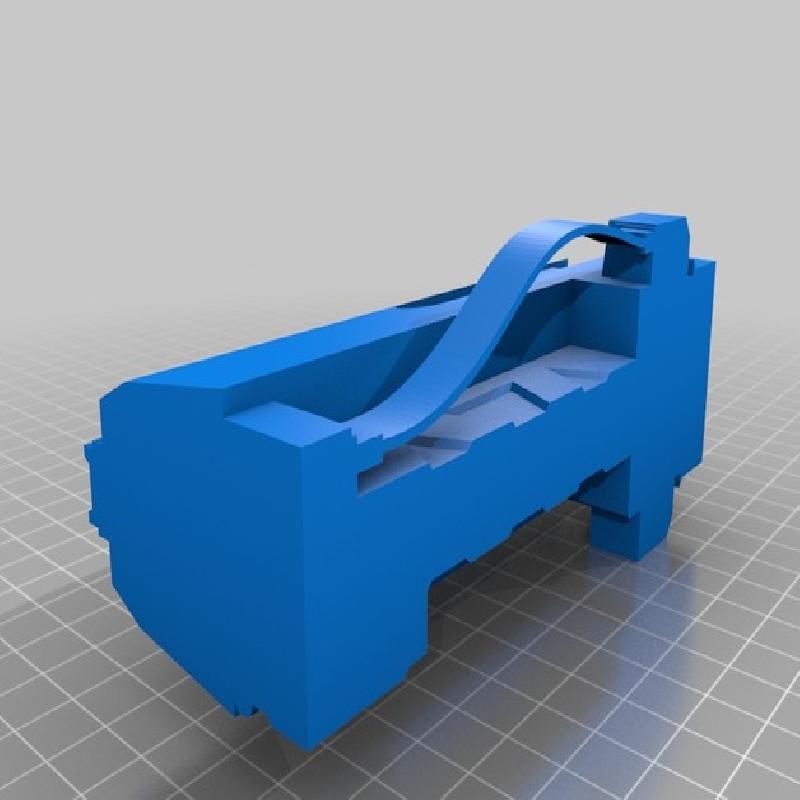

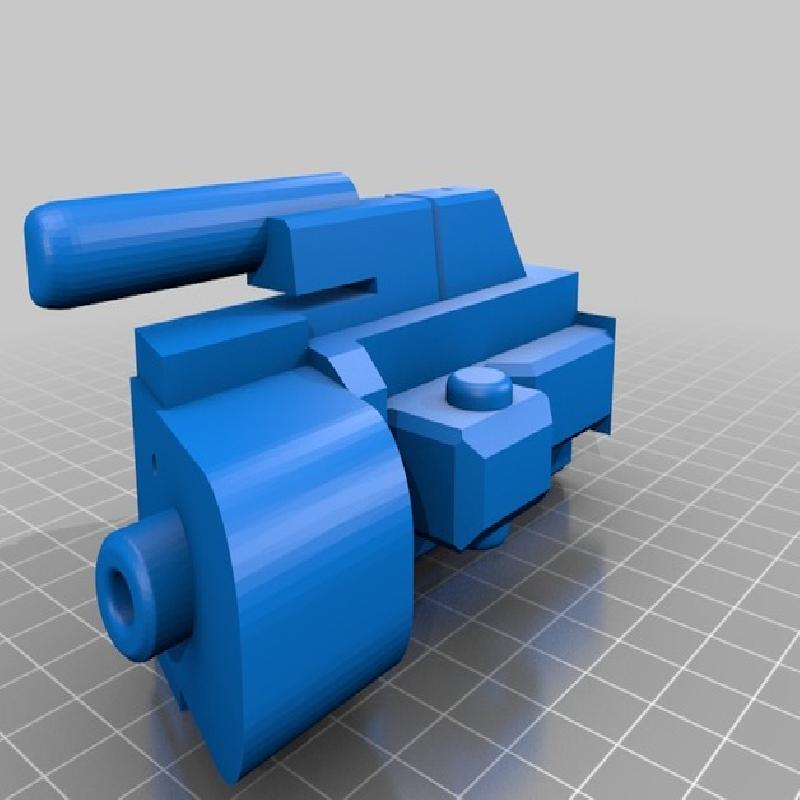

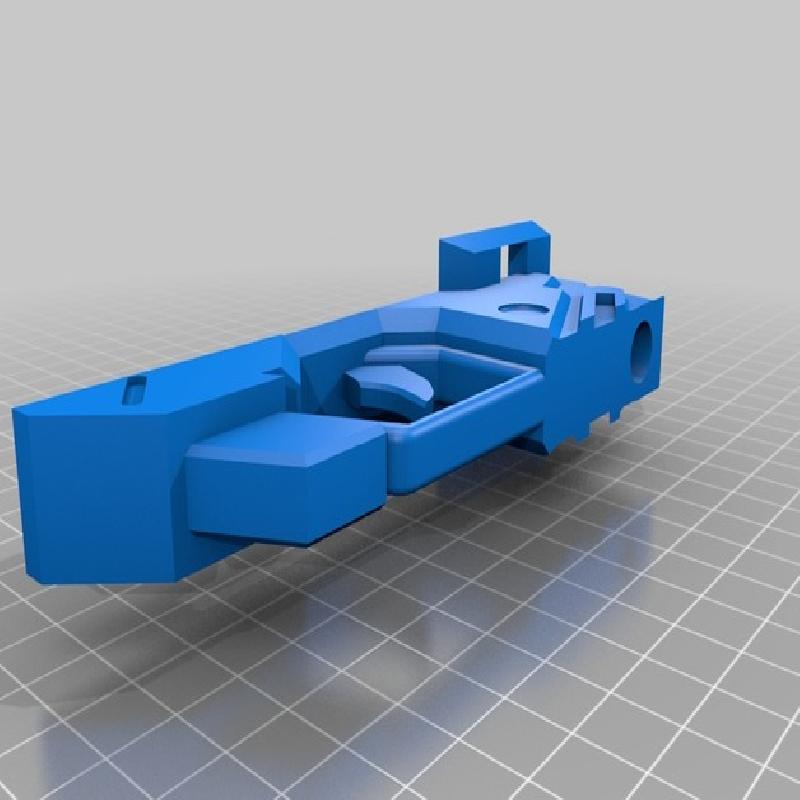

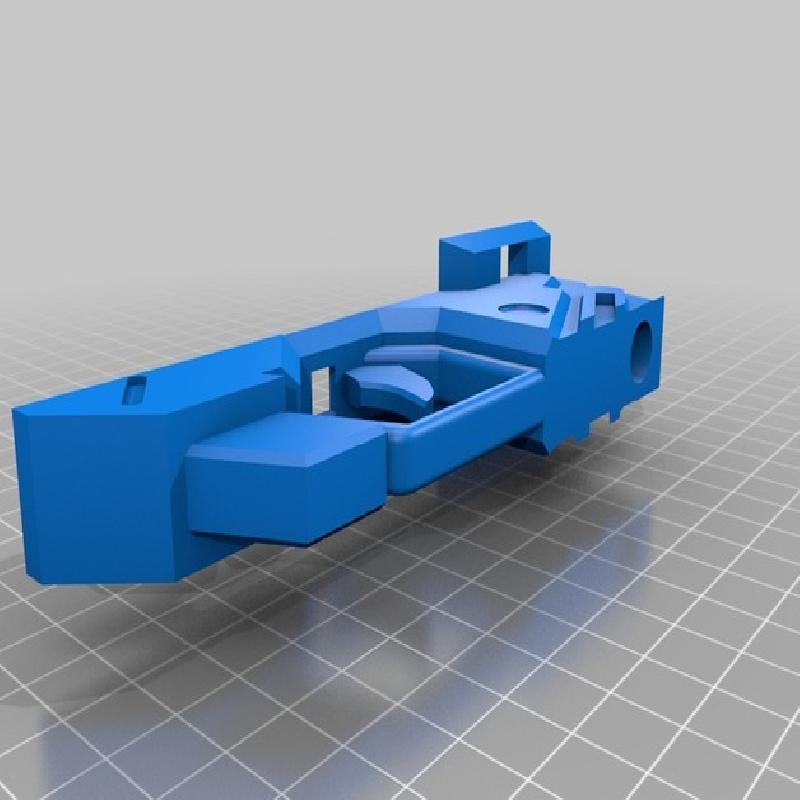

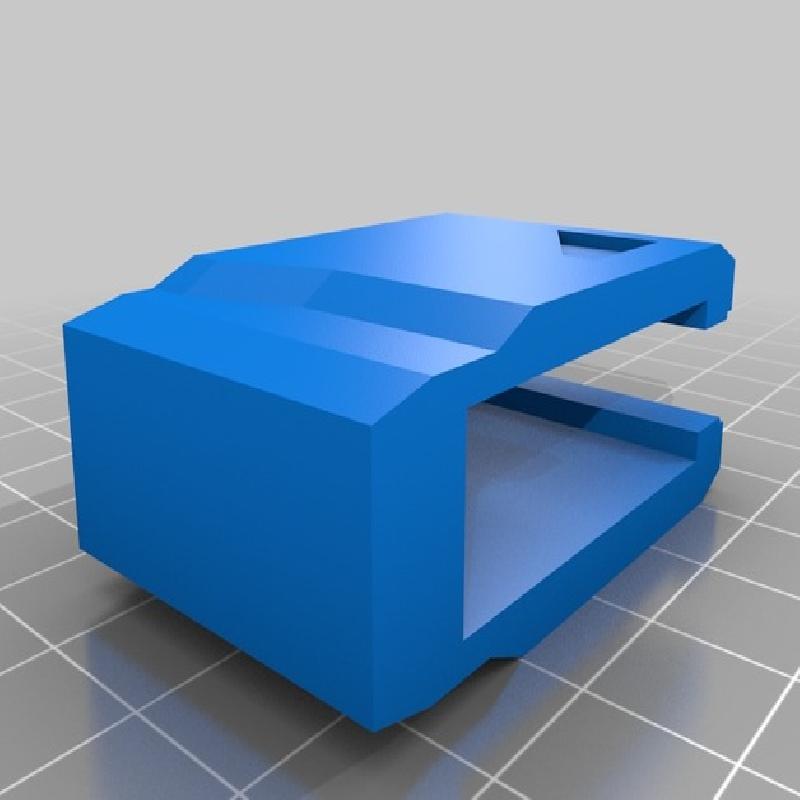

Print the "sombra_mid3 (trigger)" for the first version or the "sombra_mid3 (trigger V2)" for the second.

• Second, you can choose to had movement on the "whatever this thing is" on front of the gun

Print the "sombra_front3" if you want the original version without movement.

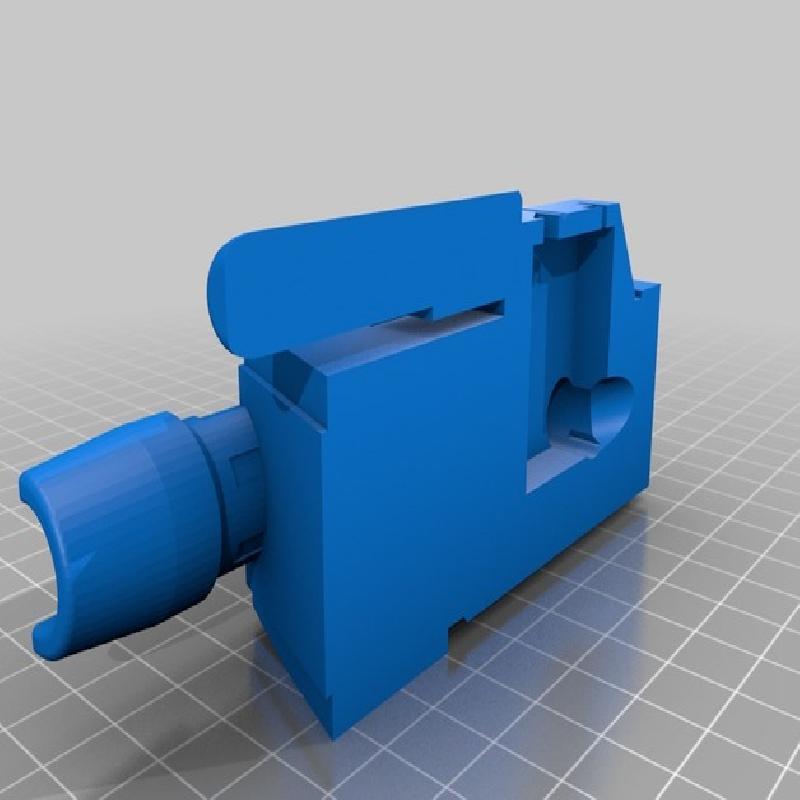

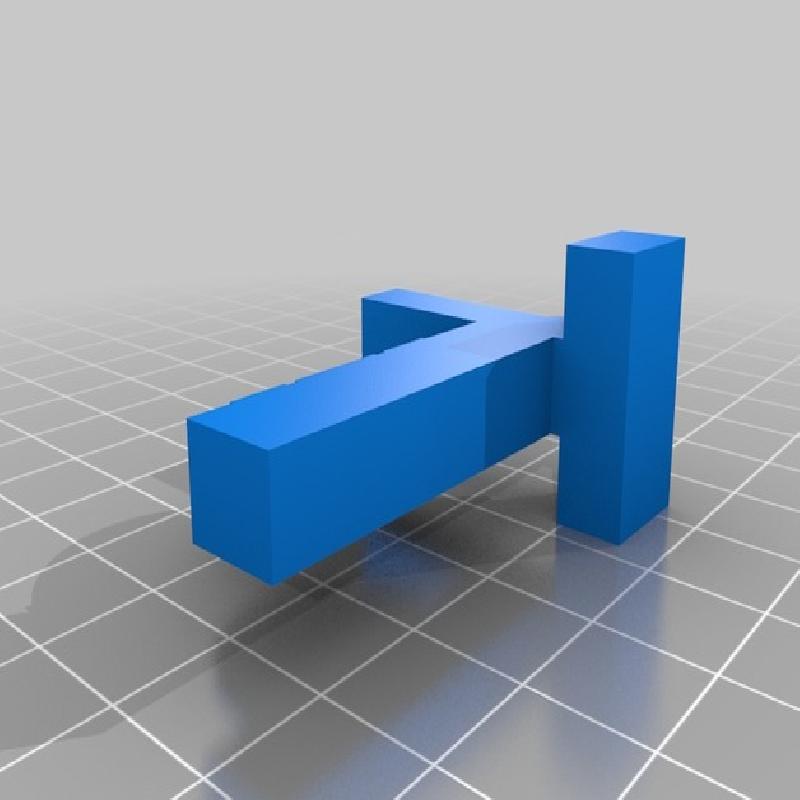

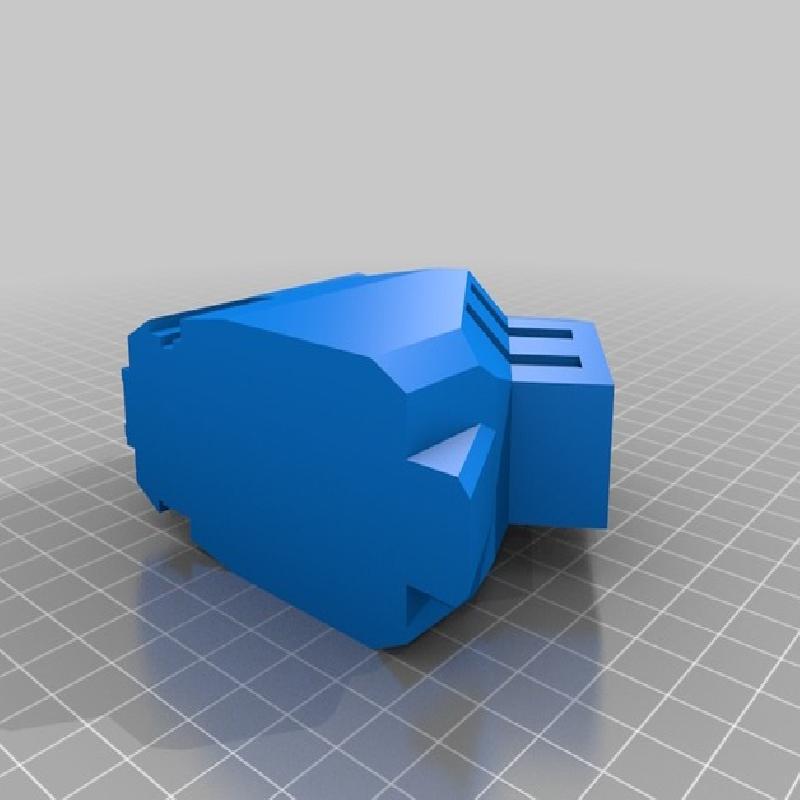

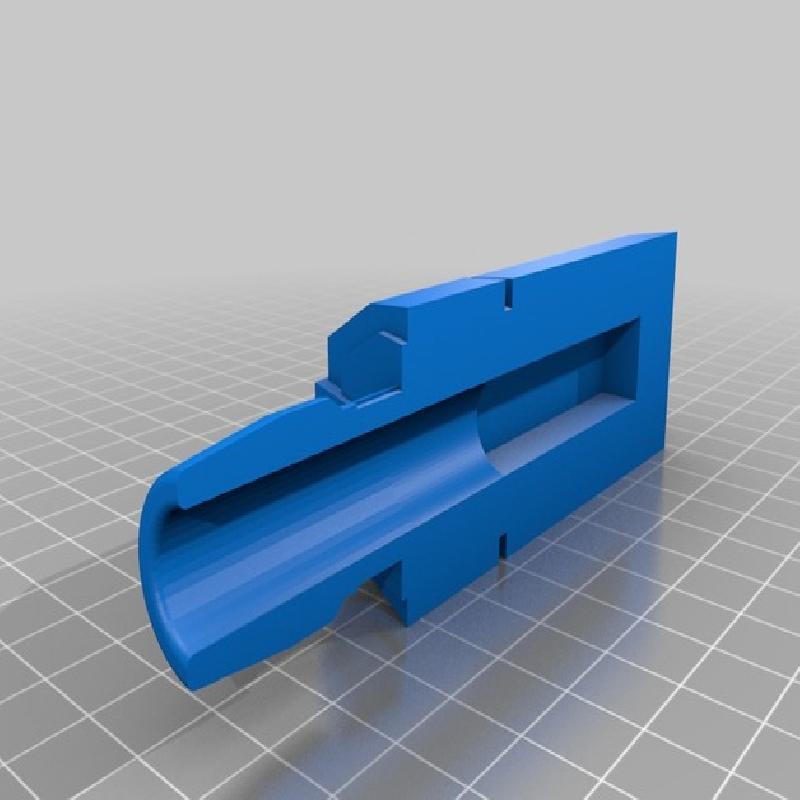

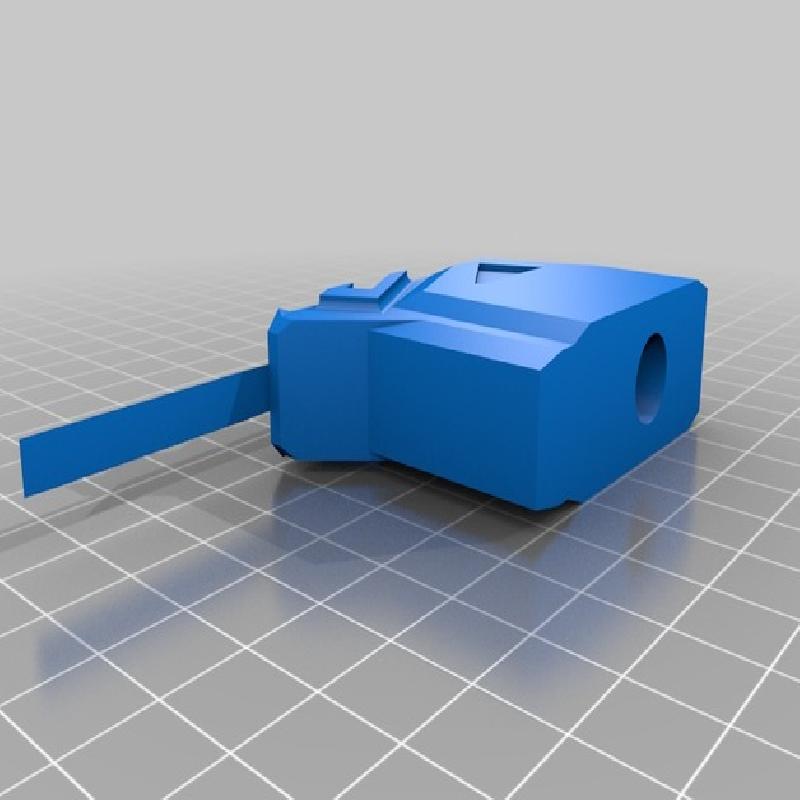

Print the "sombra_front3_a" and "sombra_front3_b" to get the ingame version with movement. Clip the b part on the a part when it's done

EDIT: file "sombra_front3_b" get a little modification to garranty more solidity

If you don't need any of this option please use the original work of carloemil, he did all the job ;)
